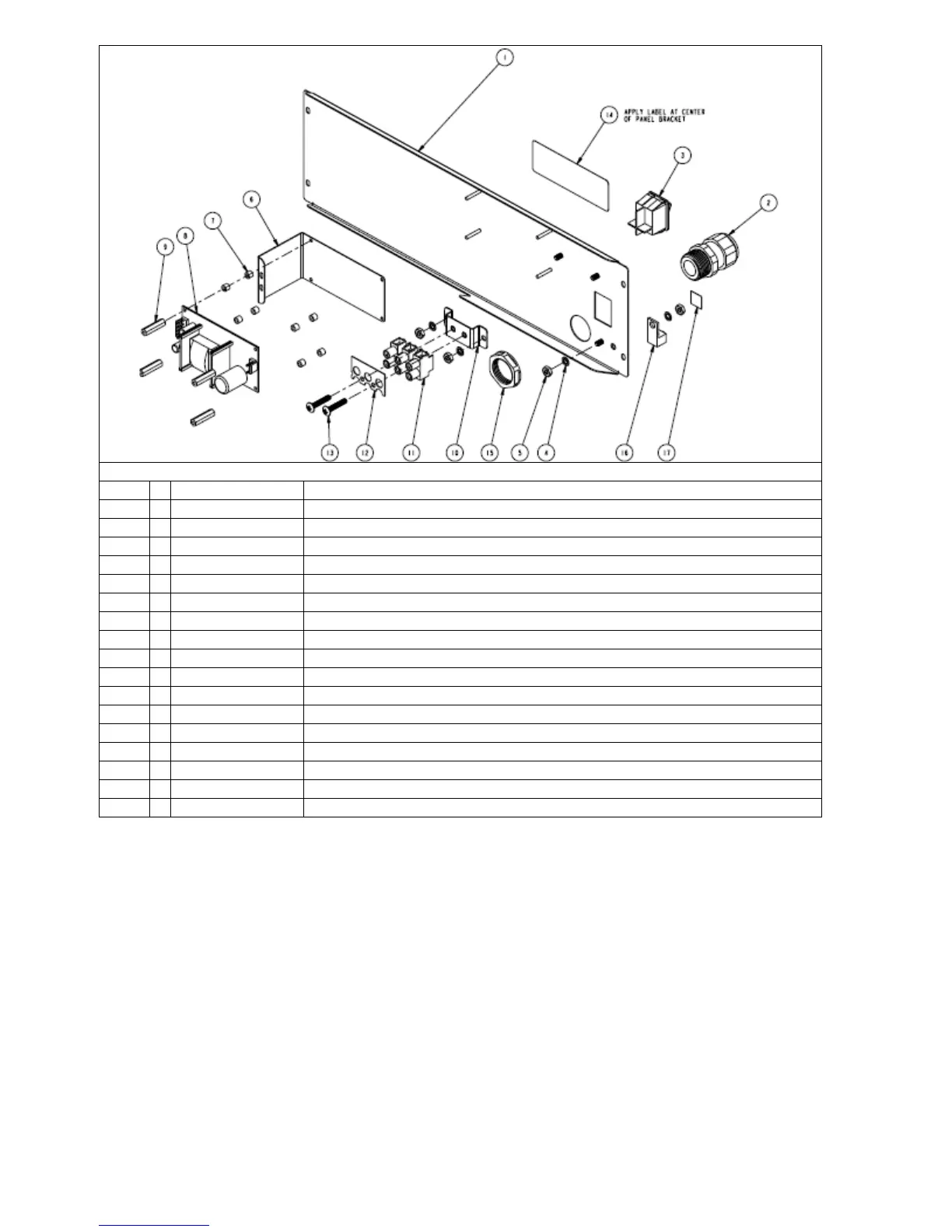

Drawing 1102.00218.00 ASSEMBLY, BACK PANEL, CBS-2132/42 CE
Ref # Part Number Name
1 1 1112.00245.00 WELDMENT, BACK COVER,CBS-2132, 2142 EU
2 1 1086.00031.00 BUSHING, STRAIN RELIEF, BLACK, .354"-.630"
3 1 1058.00024.00 SWITCH, POWER, DOUBLE POLE, 16A, 125/250 VAC
4 4 1083.00011.00 WASHER, #8 SCREW SIZE, INTERNAL TOOTH LOCK
5 4 1084.00006.00 NUT, 8-32 18-8 HEX MACHINE SCREW
6 1 1003.00170.00 BRACKET, GUARD
7 8 1081.00006.00 SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
8 1 1052.00001.00 POWER SUPPLY, 90-264VAC/24VDC, 1.8A
9 4 1029.00012.00 SPACER, .25" HEX X 1" LG, FEM #4-40 THREAD
10 1 1112.00246.00 WELDMENT BRACKET TERMINAL BLOCK, 3 POLE
11 1 1052.00022.00 EUROSTRIP HE6 TERM. BLK., 3 POLE, 40AMP,10-20 TERM. BLK.
12 1 1052.00025.00 PLATE, MARKING #BS1016E
13 2 1082.00082.00 SCREW, PHILLIP HD., 8-32 THREAD
14 1 1046.00030.00 LABEL WARNING, DISCONNECT FROM POWER SOURCE
15 1 1086.00032.00 LOCKNUT, HEX BLACK, FOR SKINTOP RELIEF
16 1 1065.00009.00 GROUND LUG CONNECTOR, 14-2 AWG, ALUMINUM
17 1 1044.00013.00 LABEL EQUIPOTENTIALITY CE
