NOTE:
• In the event of an error in the charging process the AC
power to the vehicle will stop and a red indicator will
illuminate on the EVSE.
• Keep the door for the charge receptacle closed when
not in use.
Vehicle Charge Indicators
Instrument Cluster Indicator
There is a state of charge indicator located on the
instrument cluster. The charge indicator is a gauge that
displays, with progressive color indication, the current
state of charge for the high voltage battery; with the
percentage value located at the bottom of the gauge.

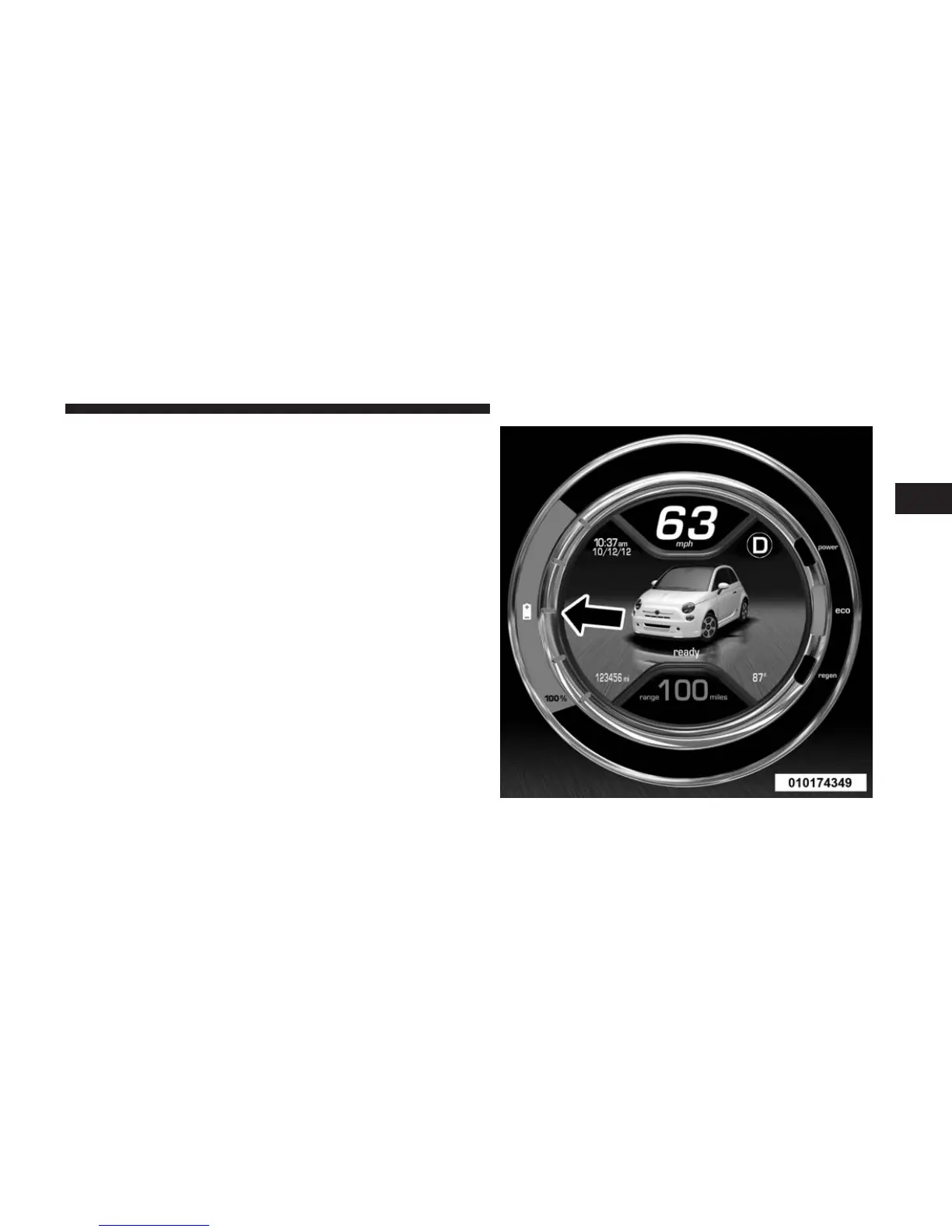

State Of Charge Indicator
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
