Power Distribution Center #1

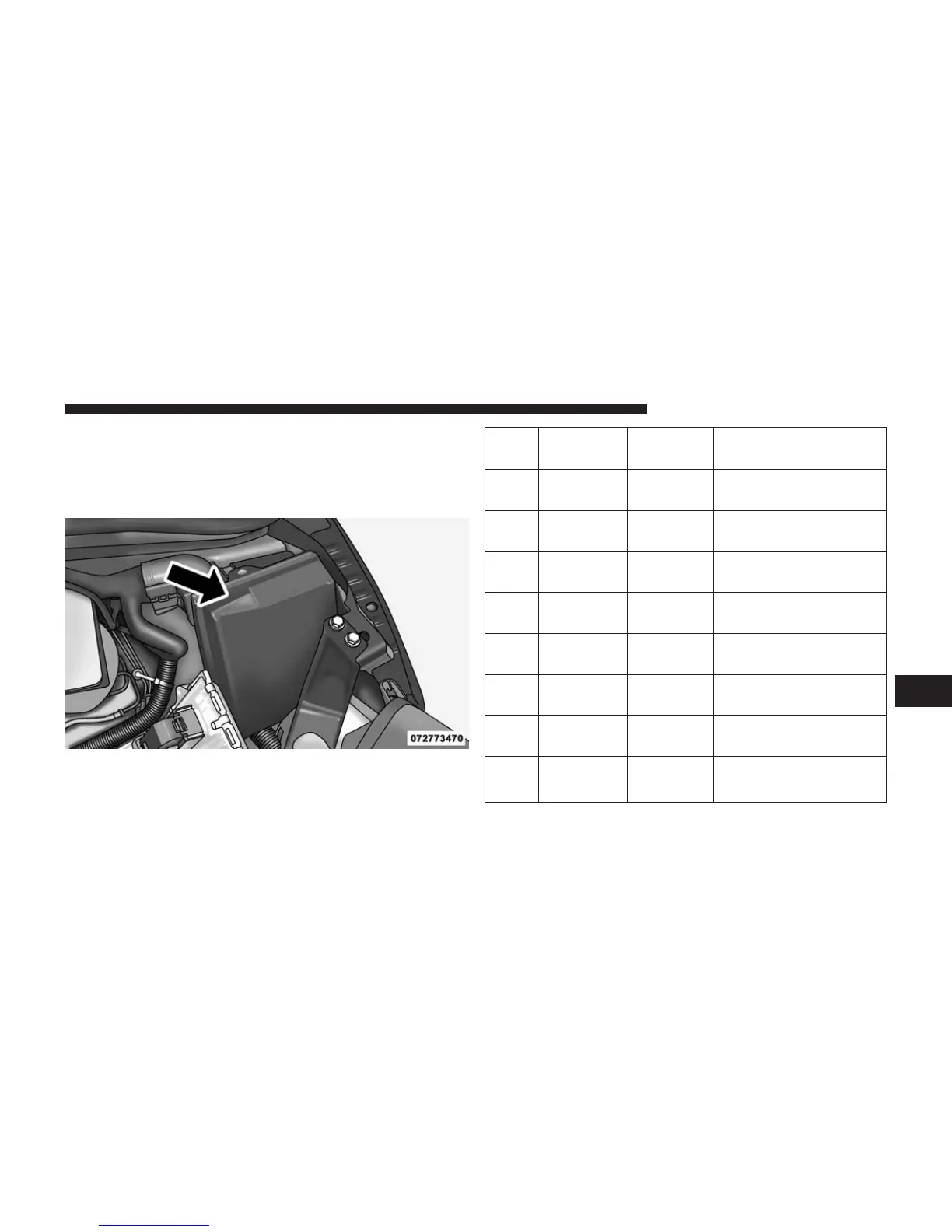

The Power Distribution Center #1 is located on the right
side of the underhood compartment. To access the fuses,
remove locking screw and slide cover off.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Cav-
ity
Maxi
Fuse
Mini
Fuse
Description
F01 60 Amp
Blue
Body Control
Module (BCM)
F02 20 Amp
Yellow
HiFi Amplifier
F03 20 Amp
Yellow
Ignition Switch
F04 40 Amp
Orange
Brake System
Module Pump
F05 70 Amp
Tan
Electric Power
Steering (EPS)
F06 60 Amp
Blue
Radiator Fan
F07 40 Amp
Orange
Regen Brake Module
F08 40 Amp
Orange
HVAC
Front Distribution Unit
7
MAINTAINING YOUR VEHICLE 307
