EVSE Operation And Status Information
Indicator Description
1 — AC Indicator LED Green indicates READY
RED Indicates a fault
2 — Fault Indicator LED Green indicates READY
RED indicates a fault
3 — Charge Level
Indicator LED’s
All ON indicates system
ready and not charging
LED’s turning on and off
in sequence indicates
vehicle charging
When the EVSE is first plugged in it will go through an
initialization and self test. For the first three seconds after
plugging in your EVSE all the LED’s will remain off.
After approximately three seconds the EVSE performs an
internal self test and Ground Continuity Test. This pro-
cess takes approximately six seconds.

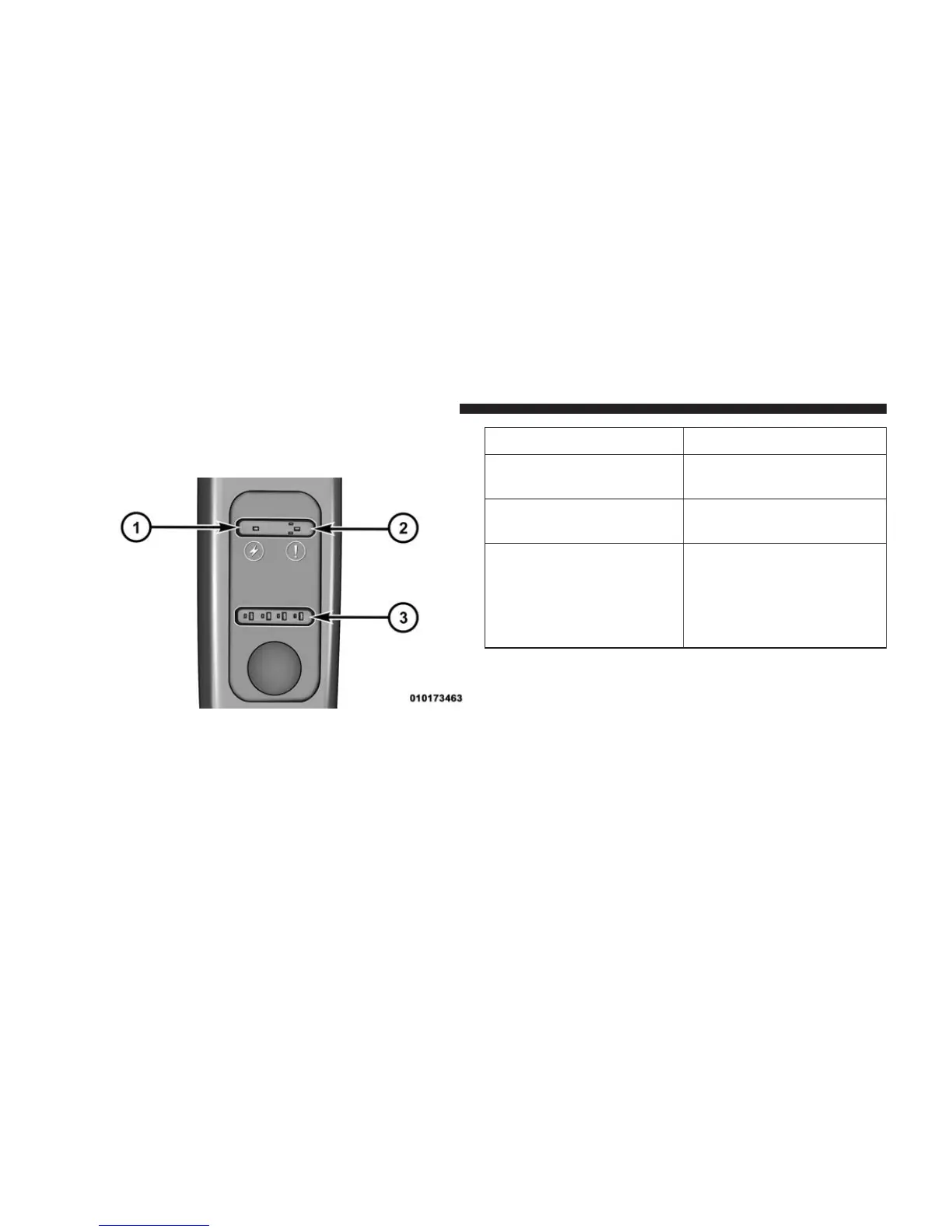

EVSE Status Indicators
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
