Fiat Bravo/Brava - Fuel Manifold and Injectors

Engine
Fuel system
Bravo- Brava 9 **
1999 update
10.
UUUUU

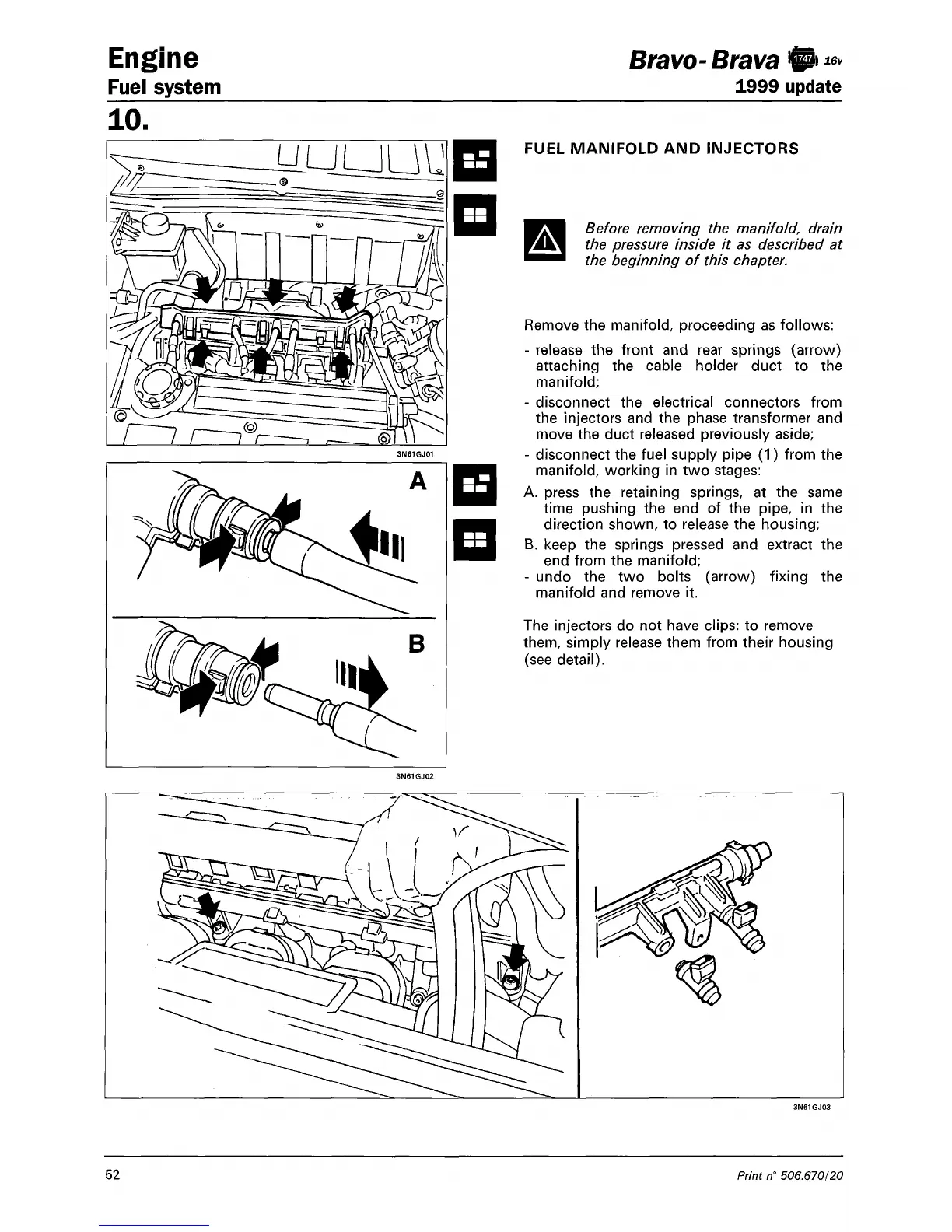

FUEL MANIFOLD AND INJECTORS
Before removing the manifold, drain
the pressure inside it as described at
the beginning of this chapter.
Remove the manifold, proceeding as follows:
- release the front and rear springs (arrow)
attaching the cable holder duct to the
manifold;
- disconnect the electrical connectors from
the injectors and the phase transformer and
move the duct released previously aside;
- disconnect the fuel supply pipe (1) from the
manifold, working in two stages:
A. press the retaining springs, at the same
time pushing the end of the pipe, in the
direction shown, to release the housing;
B. keep the springs pressed and extract the
end from the manifold;
- undo the two bolts (arrow) fixing the
manifold and remove it.
The injectors do not have clips: to remove
them, simply release them from their housing
(see detail).
52
Print n° 506.670/20
