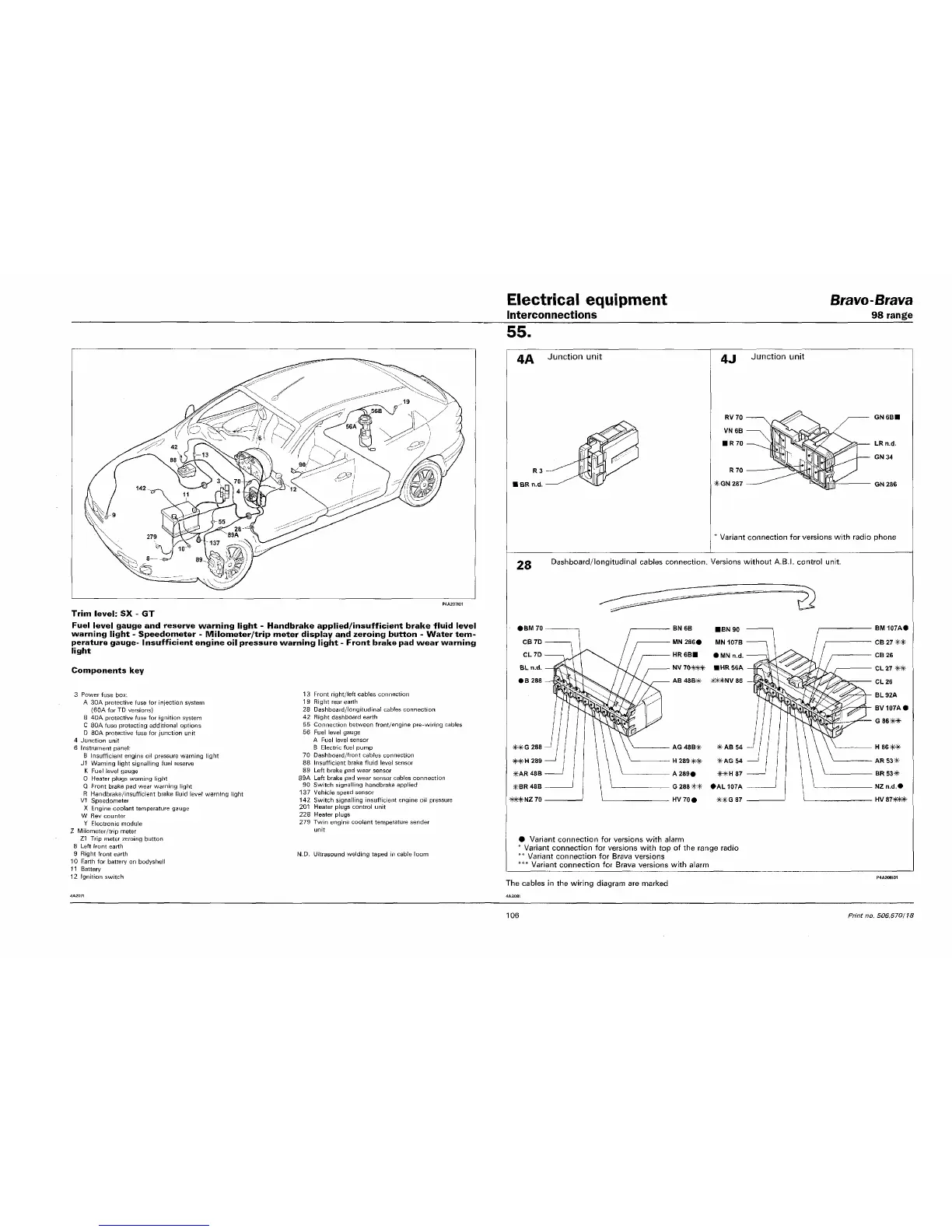

Electrical equipment
Interconnections
Bravo-Bmva
98 range
55.
Trim level: SX - GT
Fuel level gauge and reserve warning light - Handbrake applied/insufficient brake fluid level
warning light - Speedometer - Milometer/trip meter display and zeroing button - Water
tem-
perature gauge- Insufficient engine oil pressure warning light - Front brake pad wear warning
light
Components key
3 Power fuse box:
A 30A protective fuse for injection system
(60A for TD versions)
B 40A protective fuse for ignition system
C 80A fuse protecting additional options
D 80A protective fuse for junction unit
4 Junction unit
6 Instrument panel:
B Insufficient engine oil pressure warning light
J1 Warning light signalling fuel reserve
K Fuel level gauge
0 Heater plugs warning light
Q Front brake pad wear warning light
R Handbrake/insufficient brake fluid level warning light
V1 Speedometer
X Engine coolant temperature gauge
W Rev counter
Y Electronic module
Z Milometer/trip meter
Z1 Trip meter zeroing button
8 Left front earth
9 Right front earth
10 Earth for battery on bodyshell
11 Battery
12 Ignition switch
89A
90
137
142
201
228
279
Front right/left cables connection
Right rear earth
Dashboard/longitudinal cables connection
Right dashboard earth
Connection between front/engine pre-wiring cables
Fuel level gauge
A Fuel level sensor
B Electric fuel pump
Dashboard/front cables connection
Insufficient brake fluid level sensor
Left brake pad wear sensor
Left brake pad wear sensor cables connection
Switch signalling handbrake applied
Vehicle speed sensor
Switch signalling insufficient engine oil pressure
Heater plugs control unit
Heater plugs
Twin engine coolant temperature sender
unit
N.D. Ultrasound welding taped in cable loom
4A
Junction unit
4J
Junction unit
* Variant connection for versions with radio phone
4B Dashboard/longitudinal cables connection. Versions without
A.B.I,
control unit.
BN 6B BEN 90
MN 286* MN 107B
HR6BB •MNn.d.
NV70*#* BHR56A
AB 48B* W*NV 86
AG48B* *AB54
H289**
*AG54
A 289* **H 87
G288**
•AL107A
HV70« **G87
• Variant connection for versions with alarm
* Variant connection for versions with top of the range radio
** Variant connection for Brava versions
*** Variant connection for Brava versions with alarm
The cables in the wiring diagram are marked
106 Print no. 506.670/18
