Engine
Fuel feed system
Btavo- Brava
@» ™
2000 range

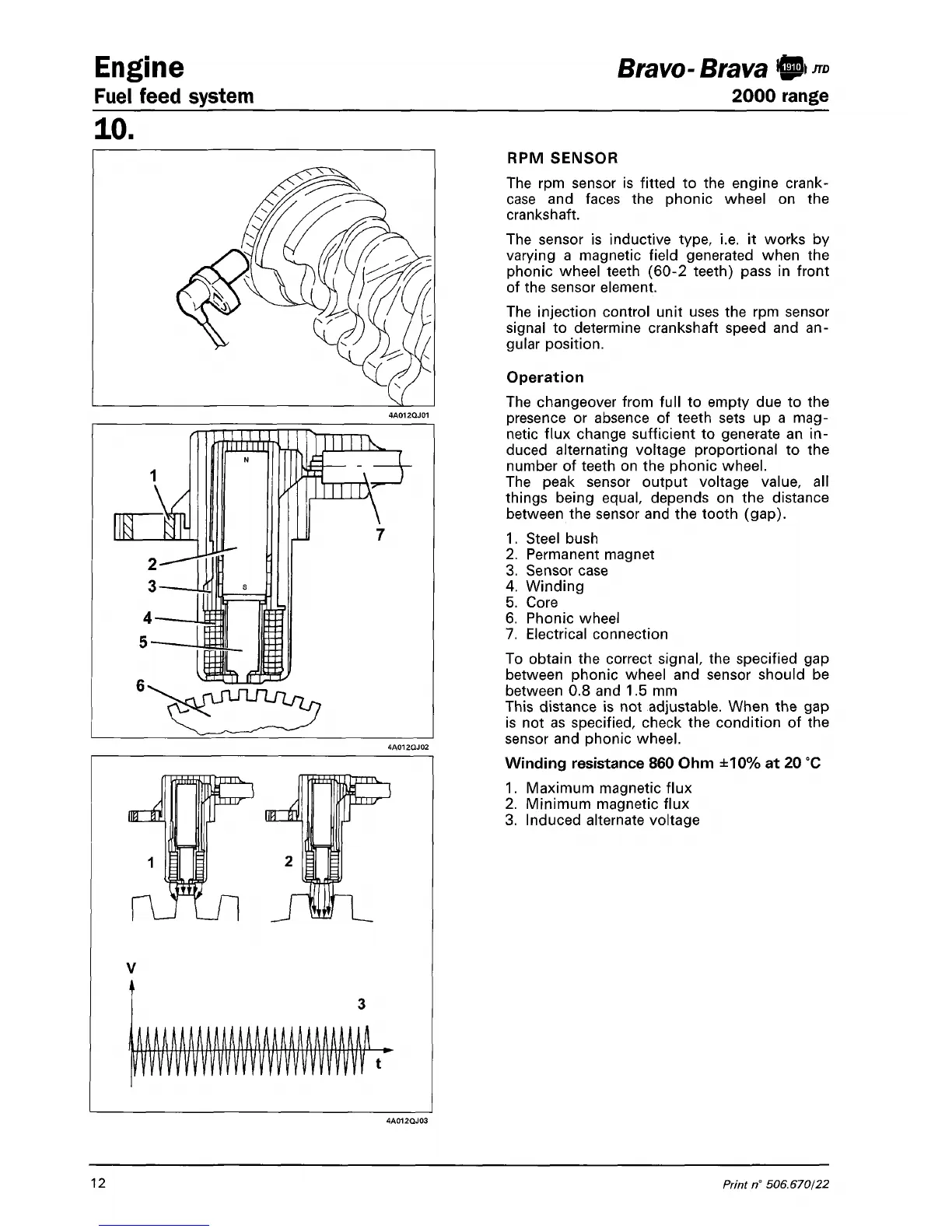

RPM SENSOR
The rpm sensor is fitted to the engine crank-
case and faces the phonic wheel on the
crankshaft.
The sensor is inductive type, i.e. it works by
varying a magnetic field generated when the
phonic wheel teeth (60-2 teeth) pass in front
of the sensor element.
The injection control unit uses the rpm sensor
signal to determine crankshaft speed and an-
gular position.
Operation
The changeover from full to empty due to the
presence or absence of teeth sets up a mag-
netic flux change sufficient to generate an in-
duced alternating voltage proportional to the
number of teeth on the phonic wheel.
The peak sensor output voltage value, all
things being equal, depends on the distance
between the sensor and the tooth (gap).
Steel bush
Permanent magnet
Sensor case
4.
Winding
5. Core
Phonic wheel
Electrical connection
1.
2.
3.
6.
7.
To obtain the correct signal, the specified gap
between phonic wheel and sensor should be
between 0.8 and 1.5 mm
This distance is not adjustable. When the gap
is not as specified, check the condition of the
sensor and phonic wheel.
Winding resistance 860 Ohm ±10% at 20 °C
1.
Maximum magnetic flux
2.
Minimum magnetic flux
3. Induced alternate voltage
12
Print n° 506.670/22
