CONTROL PANEL AND ON-BOARD INSTRUMENTS
.
Versions with digital display

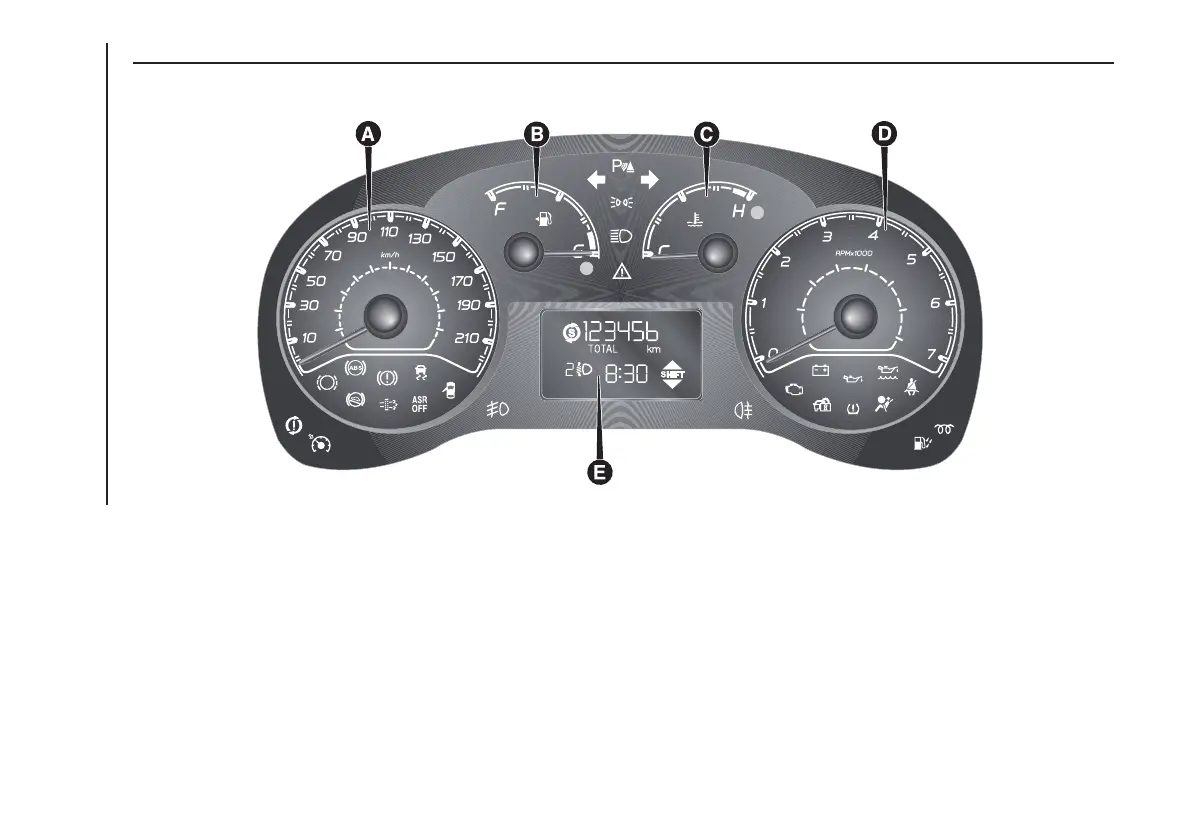

A. Speedometer (speed indicator) – B. Fuel level gauge with reserve warning light – C. Engine coolant temperature indicator with overheating
warning light – D. Rev counter – E. Digital display
112
F0V0530
68
KNOWING THE INSTRUMENT PANEL
