FIBARO FGFS-101 User Manual

8

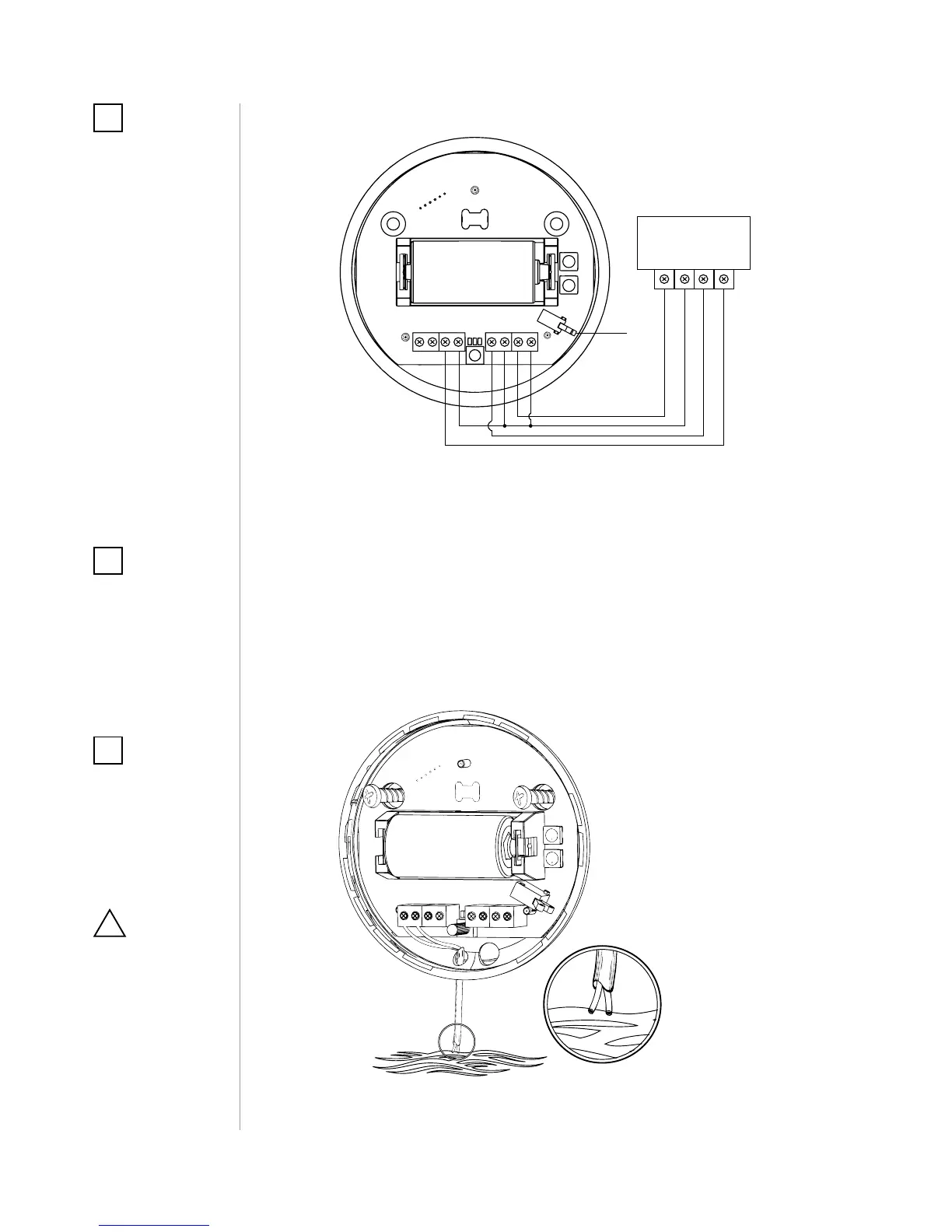

DIAGRAMS AND CONNECTION
TAMP
NC
SENS 1
SENS 2
Extending Flood Sensor contacts with a wired probe:
AUX COM Z1 Z2
ALARM
SYSTEM HUB
ALARM
NC
TAMP
NC
SENS 1 SENS 2 + 12 GND
TMP
Connection with a wired alarm system:
NOTE
Mounting screws
shown in a diagram
are not included in
the package. Choose
a screw type depend-
ing on the building
material it is being at-
tached to.
i
CAUTION
Contacts SENS1 and
SENS2 are dedicat-
ed to ood detection
only. Do not connect
external voltage!
!
NOTE
ALARM NC and TAMP
NC connectors may
be used as end-of-line
protective loop’s ter-
minals.
i
NOTE
The Sensor detects
electrical conductivity
between electrodes
1 and 3, 1 and 2 and
electrodes connect-
ed to contacts (SENS1
and SENS2).
i
If you want the device to be mounted on a wall or in a distance from
ooding source, sensor should be extended using an external probe
(not included).
We recommend using extension probes or cables designed to detect
water. Probes ends should be coated with non-corrosive metal.
Connection wires should not be longer than 3m and thicker than
18AWG (0.82mm
2
).

FIBARO FGFS-101 Specifications

General

Type	Freestanding
Purpose	Indoor/outdoor
Accuracy	0.5 °C
Connectivity technology	Wireless
Humidity measuring range	0 - 40 %
Battery type	CR123A
Number of batteries supported	1
Storage temperature (T-T)	- °C
Built-in display	No

Weight and Dimensions

Width	72 mm
Height	28 mm
