FIBARO ROLLER SHUTTER 3 Manual

L – terminal for live lead
N – terminal for neutral lead
B – service button (used to add/remove the device and navigate the menu)

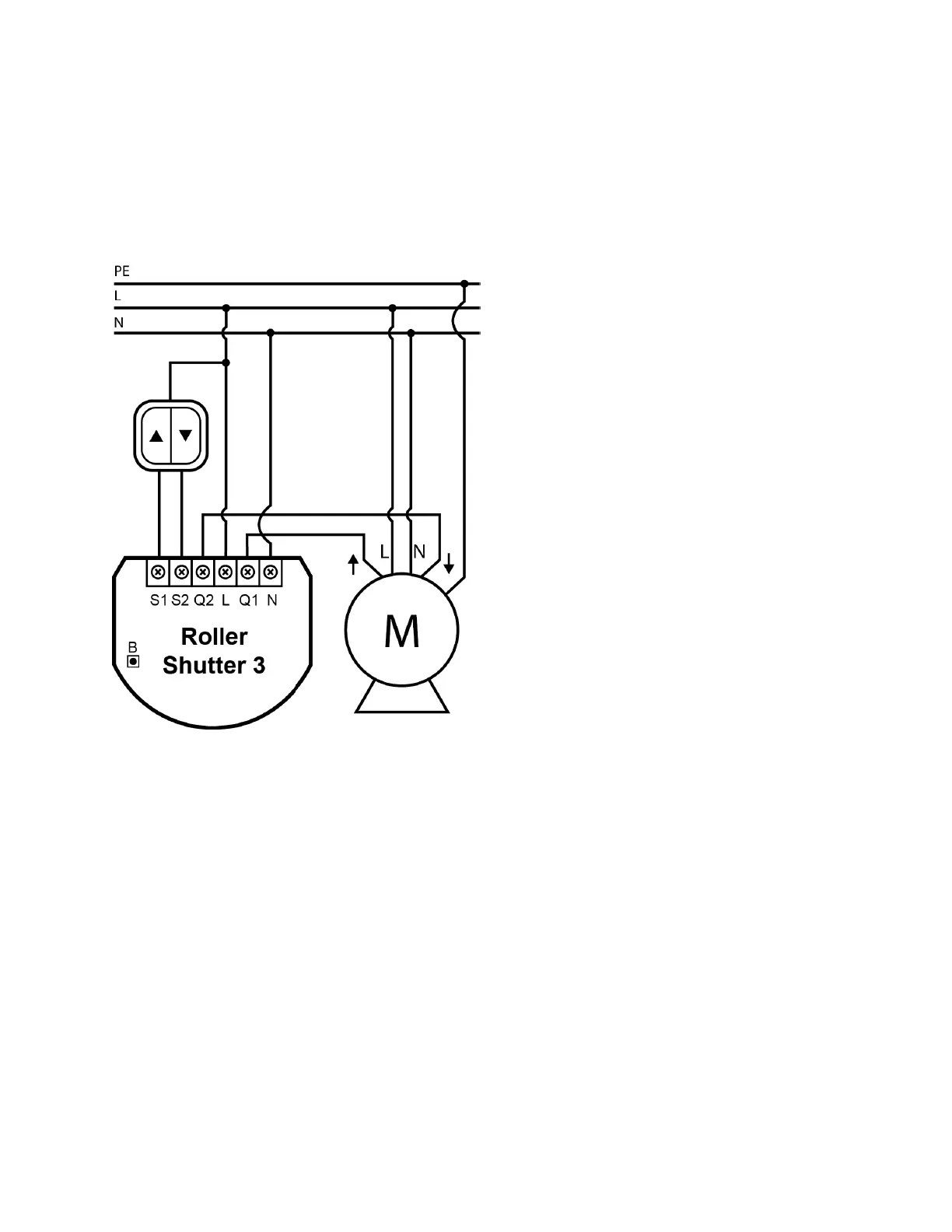

Installation of blinds with built-in driver
Installation of gate motors
 Installation of the gate driver may be performed only by certified professionals.
 The motor must be equipped with the appropriate limit switches.
 It is recommended to connect a NC (normally closed) contact of an IR barrier to S2
terminal. Opening the contact will stop the gate.
 In addition, it is recommended to connect an emergency stop button to the motors neutral
(N) wire. In emergency, pushing the emergency stop button will cut the power and stop
the gate.

FIBARO ROLLER SHUTTER 3 Specifications

General

Device Type	Roller Shutter Controller
Protocol	Z-Wave
Radio Protocol	Z-Wave
Dimensions	42.5 x 38.25 x 20.3 mm
Mounting Box Requirements	Ø ≥ 50mm, depth ≥ 60mm
Protection Class	IP20
Maximum Load for AC Output	4.2A
Max Transmit Power	up to 6 dBm
Range	Up to 50m (open space)
Operating Temperature	0°C to 40°C
Z-Wave Frequency	868.4 MHz EU
Compatibility	Works with various Z-Wave and Z-Wave Plus certified devices
Radio Frequency	868.4 or 908.4 or 921.4 MHz EU frequency band
