FIBARO ROLLER SHUTTER 3 Manual

Calibration
Calibration is a process during which a device learns the position of the limit switches and a
motor characteristic.
Calibration is mandatory in order for the device to correctly recognize a roller blind position.
The procedure consists of an automatic, full movement between the limit switches (up, down,
and up again).
Note: If you notice the calibration process fail (e.g. it does not start, movement times are really
short or highly inaccurate), adjust parameter 155 value (e.g. reduce it by half).
Standard roller blind positioning

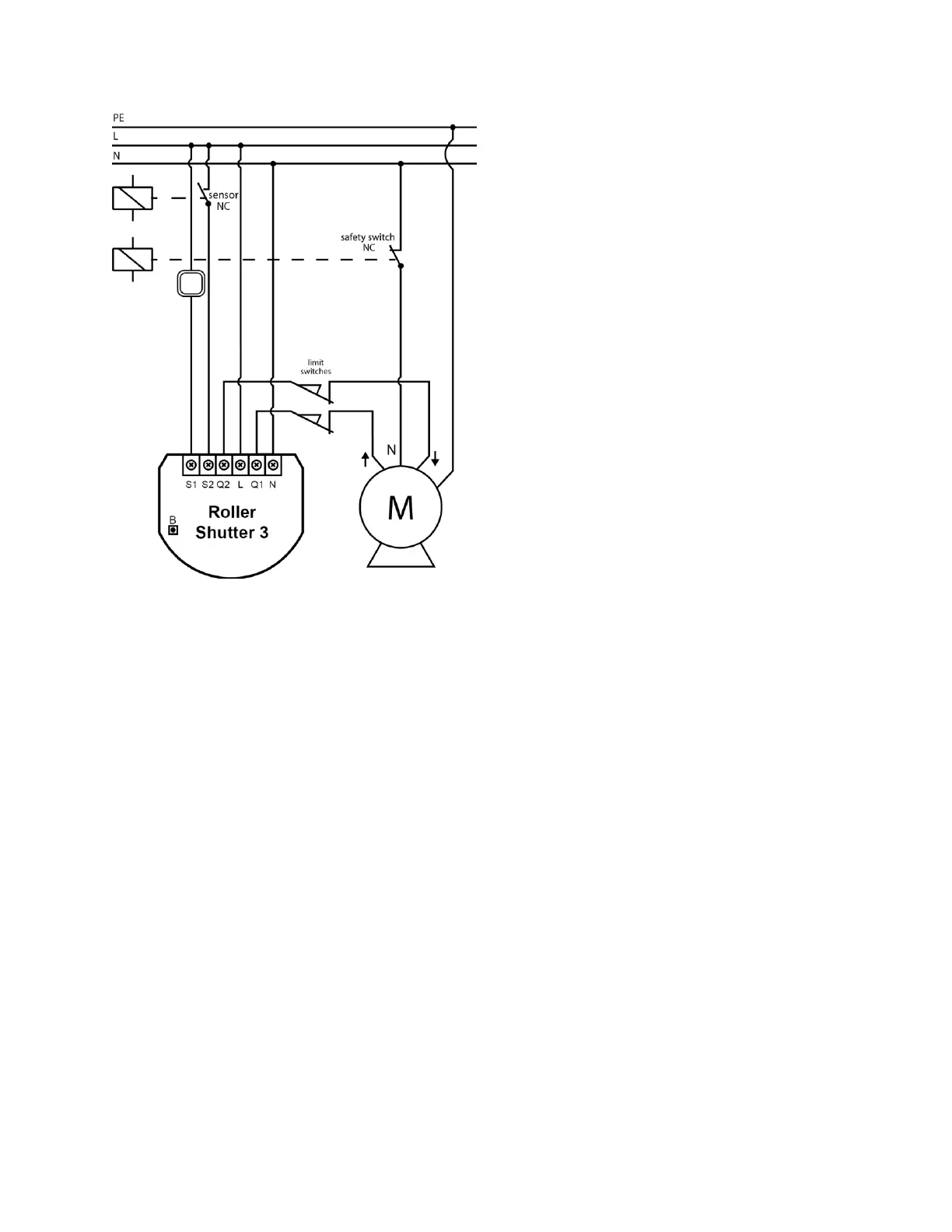

Calibration using a connected momentary switch
1. Make sure:
o the device is supplied,
o the momentary switch is connected to S1 and S2 terminals,

FIBARO ROLLER SHUTTER 3 Specifications

General

Device Type	Roller Shutter Controller
Protocol	Z-Wave
Radio Protocol	Z-Wave
Dimensions	42.5 x 38.25 x 20.3 mm
Mounting Box Requirements	Ø ≥ 50mm, depth ≥ 60mm
Protection Class	IP20
Maximum Load for AC Output	4.2A
Max Transmit Power	up to 6 dBm
Range	Up to 50m (open space)
Operating Temperature	0°C to 40°C
Z-Wave Frequency	868.4 MHz EU
Compatibility	Works with various Z-Wave and Z-Wave Plus certified devices
Radio Frequency	868.4 or 908.4 or 921.4 MHz EU frequency band
