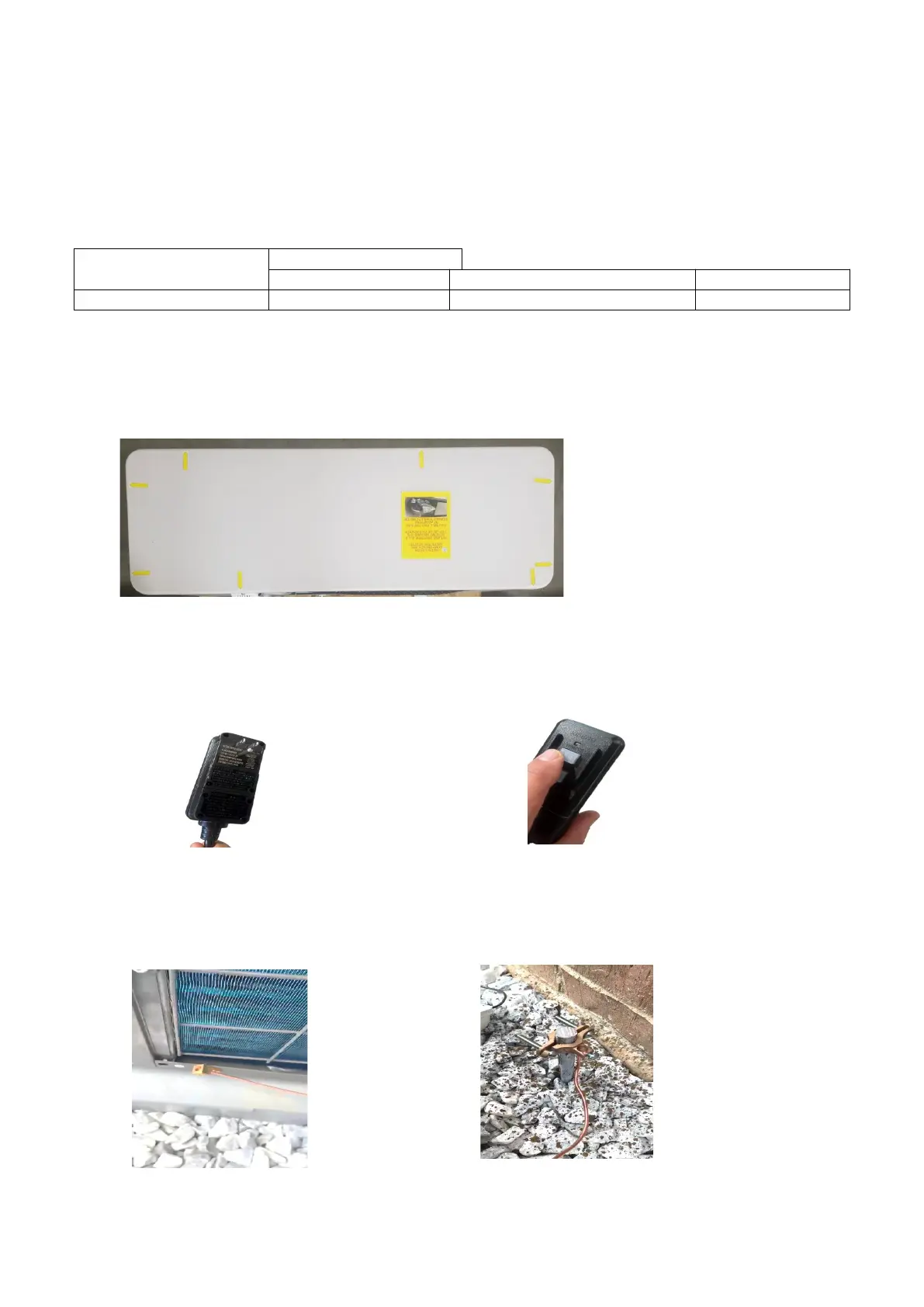

ELECTRICAL CONNECTIONS
Power Supply Wires Size
Model
Power Supply Wires
Power Supply Breaker Size Plug rating
FH 135 110-125V/60Hz 20 Amps 20 Amps
➢ Step 1: Remove the 8 screws that are holding down the top lid of the heater ( yellow
stickers pointing to them). All adapters etc are inside the heater, contained in a bag.
➢ Step 2: Remove the bag, and reinstall the lids 8 screws hand tight.
➢ Step 3: Plug in the power cord of the heater, and reset the GFCI, by pushing the TEST
and RESET buttons.
➢ FH 135 requires equipotential bonding. Please connect an #8 AWG bare copper wire to a
ground rod. This is required for safety and corrosion prevention of the heater’s metal
chassis.
V.23.02 FIBROPOOL USA
