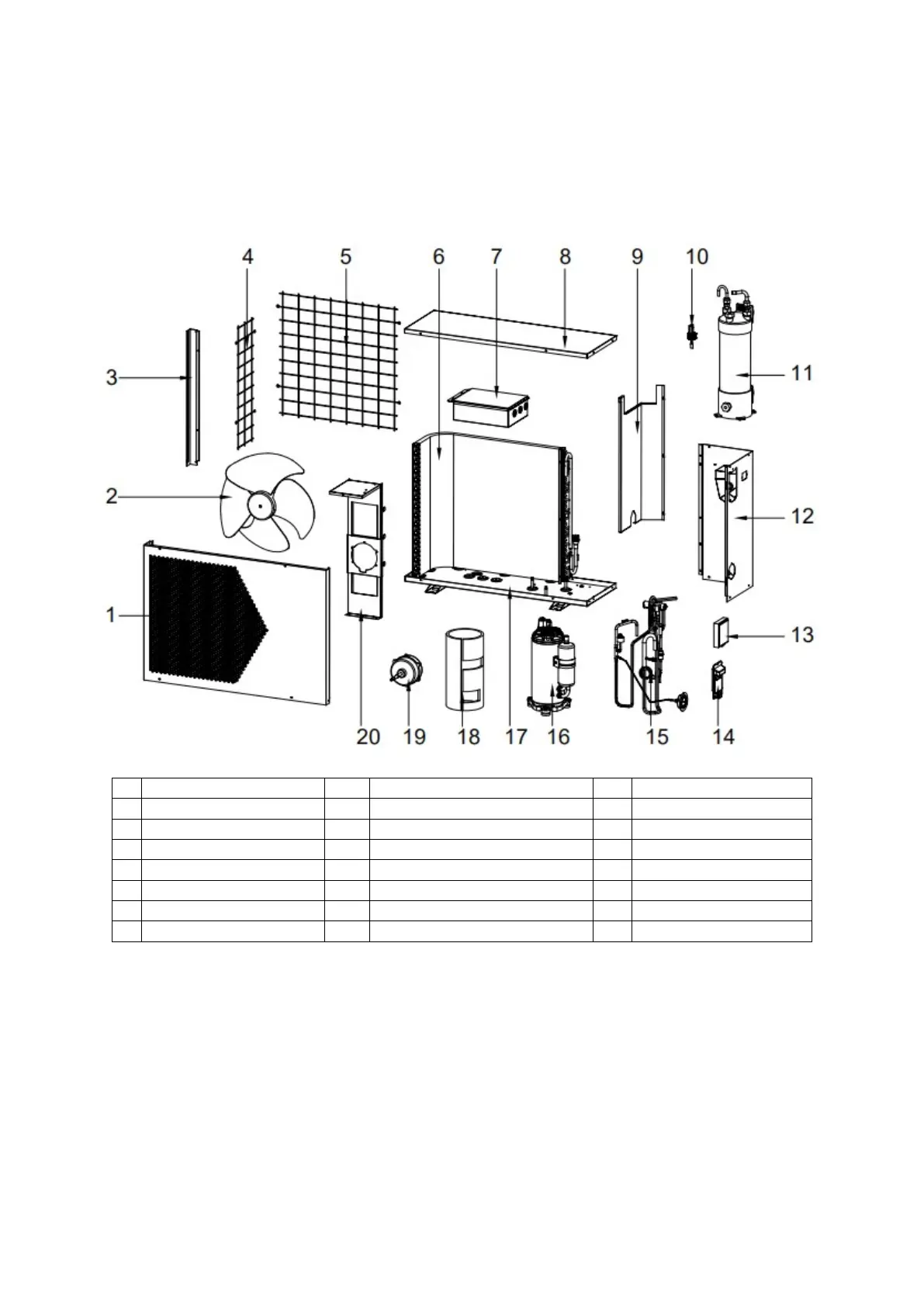

1. Exploded View
1 Grill Panel 9 Baffle plate 17 Base Frame
2 Fan 10 Water flow switch
3 Corner Bracket 11 Titanium heat exchanger 19 Fan Motor
4 Protective grill 12 Corner panel 20 Fan Bracket
5 Protection grill 13 Flip Cover
6 Evaporator coil 14 Terminal Cover
7 Electrical box 15 Cooper manifold
8 Top panel 16 Compressor
V.23.02 FIBROPOOL USA
