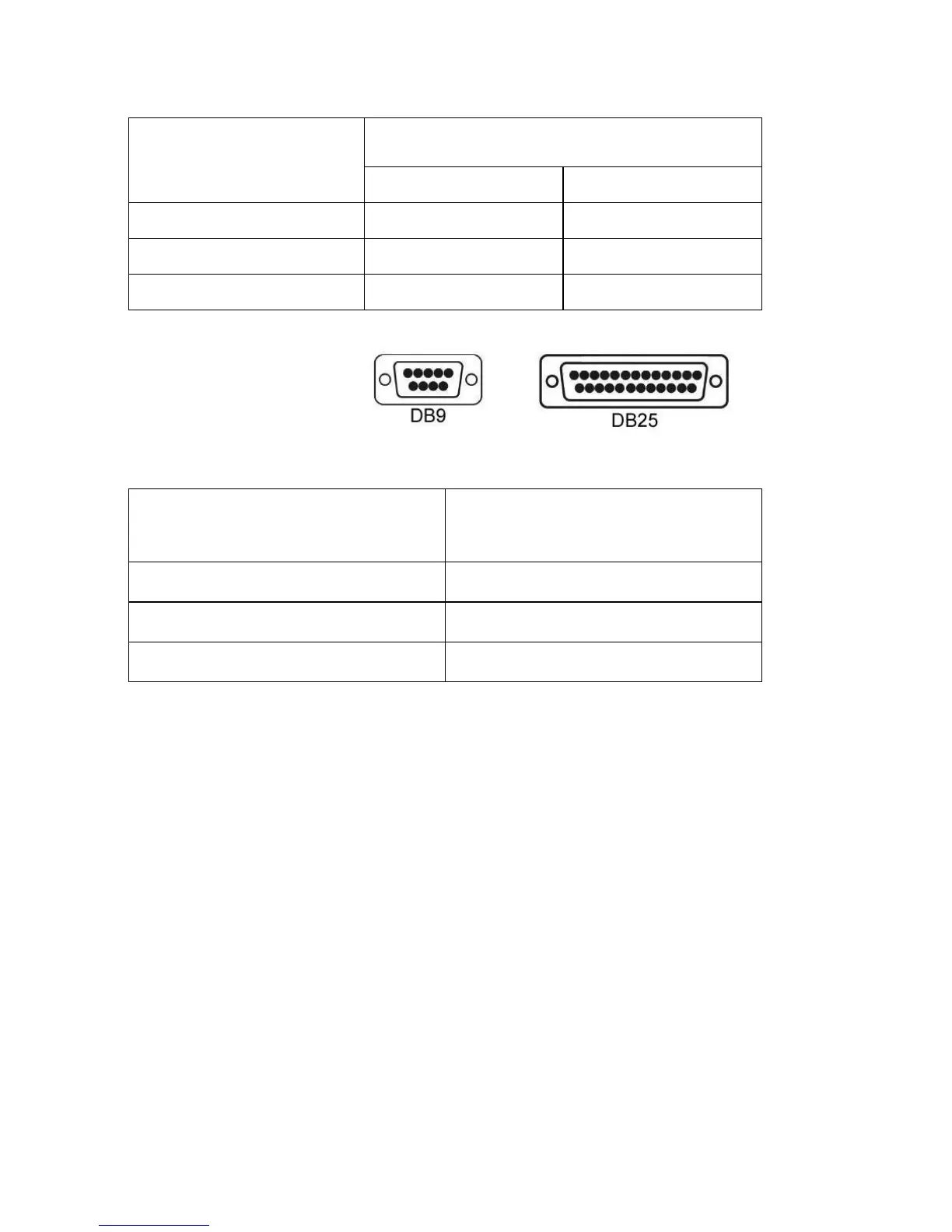

4.3.2. Connecting RS232 to computer
RS232 COMPORT
COM PORT ON COMPUTER
(DB9)
(DB25)
2 = RXD
3 = TXD
3 = TXD
3 = TXD
2 = RXD
2 = RXD
5 = GND
5 = GND
7 = GND
4.3.3 Connecting RS232 to Printer (DB25)
RS232 COMPORT (DB9) ON
SCALE
COMPUTER COM DB25
2 = RXD
3 = TXD
3 = TXD
2 = RXD
5 = GND
7 = GND
4.4 SETTING UP THE PREFERRED OPERATION PARAMETERS
Set all preferred operation parameters according to 5.4 INTERNAL
FUNCTION TABLE.
NOTE: -
1. F1~F26 are accessible without restriction,
2. F60~F66 are restricted functions which may request a password or
hardware key to access,
3. F80 ~ F99 are restricted functions which may request a password or
hardware key to access. These functions are usually for dealer and
authorized personnel only and all settings these functions are
monitored and recorded. Do not change any setting of these functions
to avoid operation errors.
