Fieldpiece SC680 User Manual

1918
Resistance (Ω)
Used for “ohming out” a compressor. A 0.01Ω resolution is useful to
test the resistance between the terminal poles because the values are
typically very low. For best practice, use a megger (Fieldpiece SMG5) to
measure motor winding insultion to ground.
Ranges: 100Ω, 1000Ω, 10kΩ, 100kΩ, 1000kΩ, 10MΩ, 50MΩ
Resolution: 0.01Ω
Accuracy: ±(1.0% + 15) 100Ω, ±(1.0% + 5) 1000Ω to 100kΩ, ±(1.5%
+ 5) 1000kΩ, ±(3.0% + 5) 10MΩ to 50MΩ
Open circuit volts: -1.1VDC typical, -3.2VDC (100Ω range)
Overload Protection: 600VDC or 600VAC rms

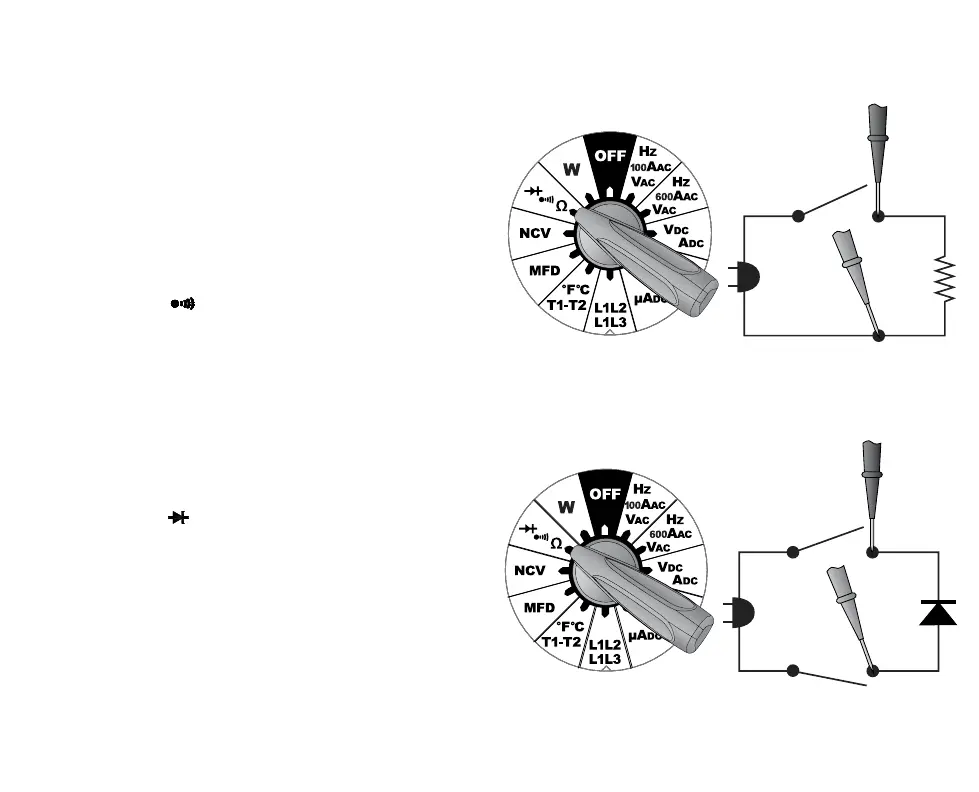

Continuity (
OO
FF
FF
M FD
NCV
VAC
V
DC
AAC
Hz
Hz
%
°C
°F
SC56
AUTO OFFTRUE RMS
CAT III
600V
TEMP
K-TYPE
30V
MAX
SEL
HOLD
INRUSH
)
Perfect for checking isolated fuses, use the continuity function to test
whether a circuit is open (no beep, no green LED) or closed (beep and
green LED). Press SELECT once to enter Continuity mode.
Range: 100Ω Resolution: 0.01Ω Response time: 100ms
Audible beep: <30Ω
Visual Indicator: Green LED
Overload Protection: 600VDC or 600VAC rms
Diode Test (
OO
FF
FF
M FD
NCV
V
AC
VDC
AAC
Hz
Hz
%
°C
°F
SC56
AUTO OFFTRUE RMS
CAT III
600V
TEMP
K-TYPE
30V
MAX
SEL
HOLD
INRUSH
)
Test diodes for proper forward and reversed-biased functions. A
voltage will display in forward-bias and “OL” in reversed-bias. Press SELECT
twice to enter Diode mode.
Test current: 0.8mA (Approx.) Accuracy: ±(1.5% + 5)
Open circuit volts: 3.2VDC typical Audible beep: <0.05V
Visual Indicator: Green LED
Overload Protection: 600VDC or 600VAC rms
