Fiio Q5 - FiiO Q5 Operation Guide; Buttons and Ports Identification

English Headphone Amplifier/USB DAC

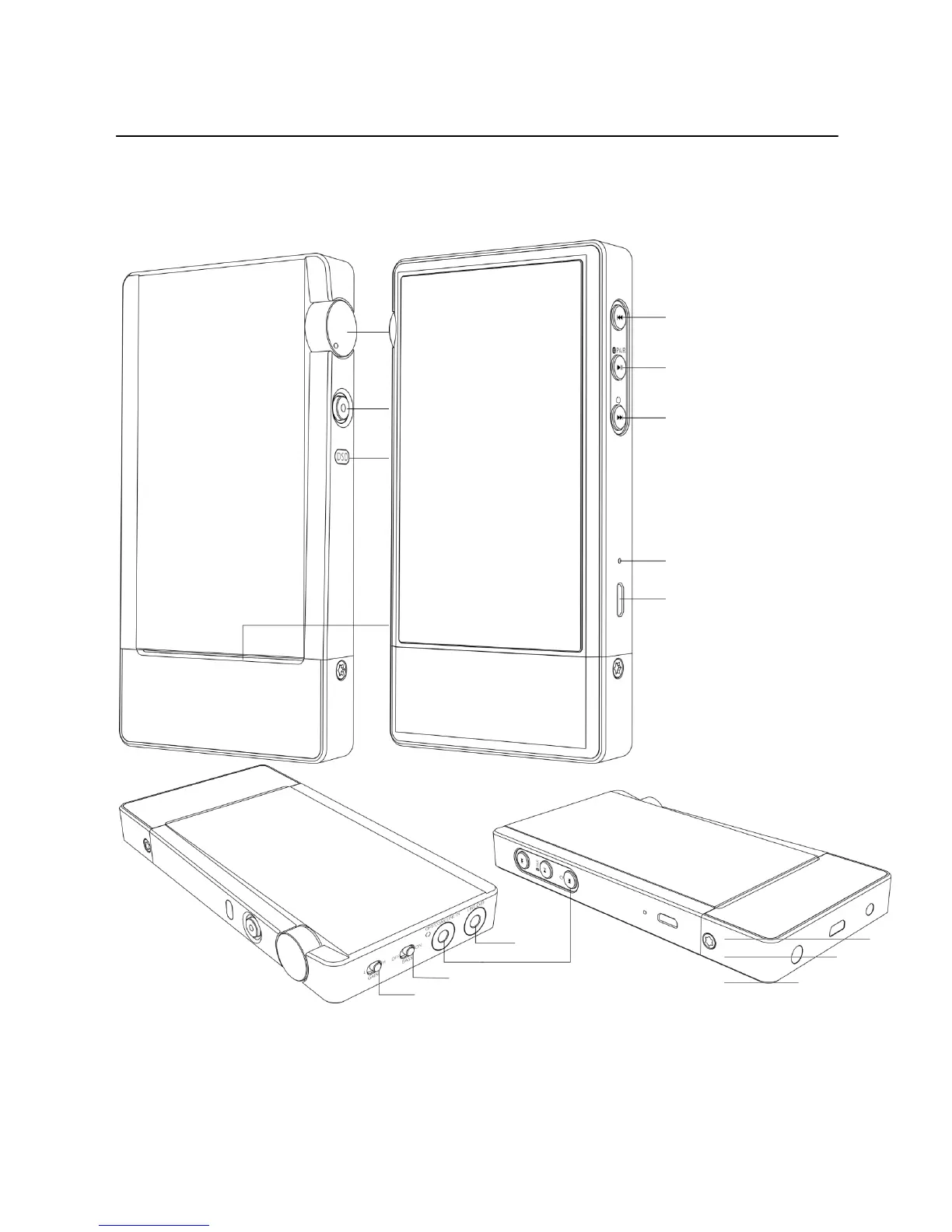

Buttons and ports labeled
(The Q5 is equipped with the amp module AM3A; for extra needs of other amp modules, please
consult local sales agents)
Operation and indicator explained
DSD 指示灯
DSD indicator
线路输出 Line out
Gain
电源键/
电源指示灯
Power / Power indicator
音量旋钮
Volume knob
工作状态指示灯
Working status indicator
上一曲键 Previous track
暂停/播放键（蓝牙开/关）
Pause/Play (Bluetooth On/Off)
下一曲键(同轴/光纤/线路输入切换)
Next track (Coaxial /Optical/Line
in switch)
复位孔 Reset
Micro USB 充电接口
Micro USB charging port
Bass switch
3.5mm headphone output
2.5mm TRRS balanced headphone output
Micro USB 数据（解码）接口
PC/iPhone/iPod/iPad in
Micro USB data input (decoding) port
PC/iPhone/iPod/iPad input
Line in/Coaxial/Optical input
