FILL-RITE FR700 - Pump Options; Technical Information; Design Features; Performance Specifications

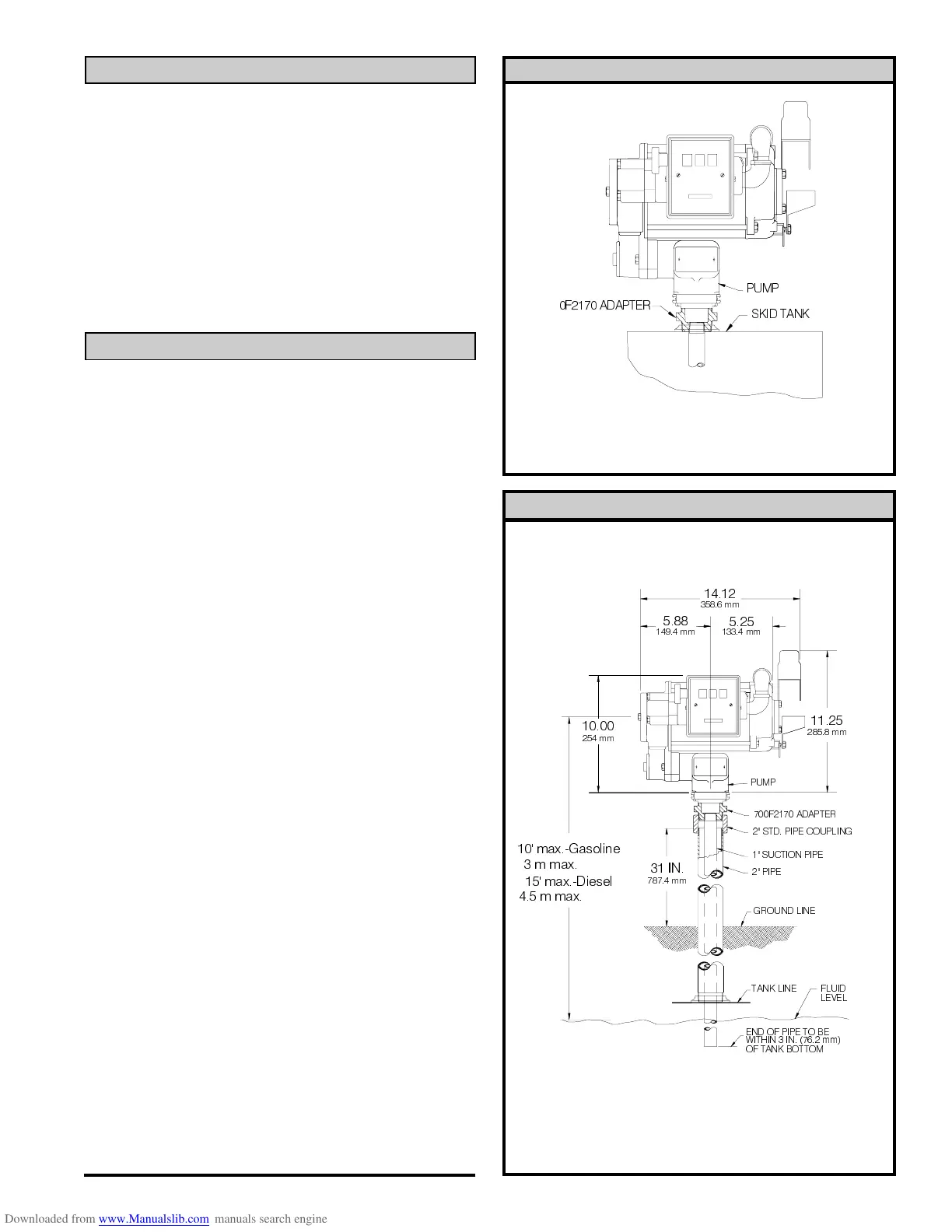

DIRECT MOUNTING INSTALLATION
3
SKID TANK INSTALLATIONOPTIONS
Full 1/3 HP 230 VAC-50/60Hz motor
Flow meters in U.S. gallons or liters
Pedestal adapters for underground tank installations
Nozzle holders for automatic nozzles
Automatic nozzles
Wiring added in motor for auxilliary equipment
Recommended Automatic Nozzles:
Husky 1-GS, 1-A & 1+VIII
OPW 11-A & 7-H
NOTE: Using an automatic nozzle will reduce flow rate.
See flow curve.
Design Features:
Inlet: 2" male NPT on bung, 1" female NPT on suction pipe
Outlet: ¾" NPT
Built in check valve, bypass and pressure relief valves
CAUTION: DO NOT INSTALL ADDITIONAL FOOT
VALVE OR CHECK VALVE DURING INSTALLATION
WITHOUT PRESSURE RELIEF VALVE. HOUSING
OR PLUMBING CRACKING MAY RESULT.
Furnished with UL listed ¾" x 12' hose and manual nozzle
Security: Pump equipped for padlocking
Overall Dimensions:
-Models FR700: 14" (356 mm) wide x 11" (279 mm) high x
12" (305 mm) deep
-Models FR701: 14" wide (356mm) x 11" (279 mm) high x
14" (356 mm) deep
Explosion proof motor
1/3 HP 115 VAC-60hz motor, 1725 RPM, 5.5 amps
Thermal overload protection
Ball bearing construction; no greasing or oiling required
Heavy duty switch
Performance
22 psi (1.52 bar) maximum outlet pressure
Maximum flow rate: up to 20 gpm (76 lpm)
Maximum viscosity of fluid pumped: diesel fuel
Maximum operating ambient temperature: 150°F (66°C)
Minimum operating ambient temperature: -15°F (-26°C)
(Consult factory for extreme temperature applications)
Minimum dry vacuum: 12 inches (305 mm) of mercury
Minimum suction lift: 10' (3 m) for gas & 15' (4.5m) for diesel
fuel. The lift in feet is equivalent to the vertical distance from
the surface of the fluid in the tank to the inlet of the
pump, PLUS the friction losses through the vertical and
horizontal runs of pipe, all elbows and other fittings.
Systems should be designed to require a minimum
amount of suction lift.
Fluid Compatibility
The 700B is compatible with the following fluids:
Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane,
and Hexane
TECHNICAL INFORMATION
3803
)$'$37(5
67'3,3(&283/,1*
68&7,213,3(
3,3(
*5281'/,1(
7$1./,1(
(1'2)3,3(72%(
:,7+,1 ,1PP
,1





PD[*DVROLQH

PD['LHVHO
)/8,'
PP
PP
PP
PP
PP
PP
PPD[

PPD[
2)7$1.%27720
/(9(/
6.,'7$1.

)$'$37(5
3803


