4

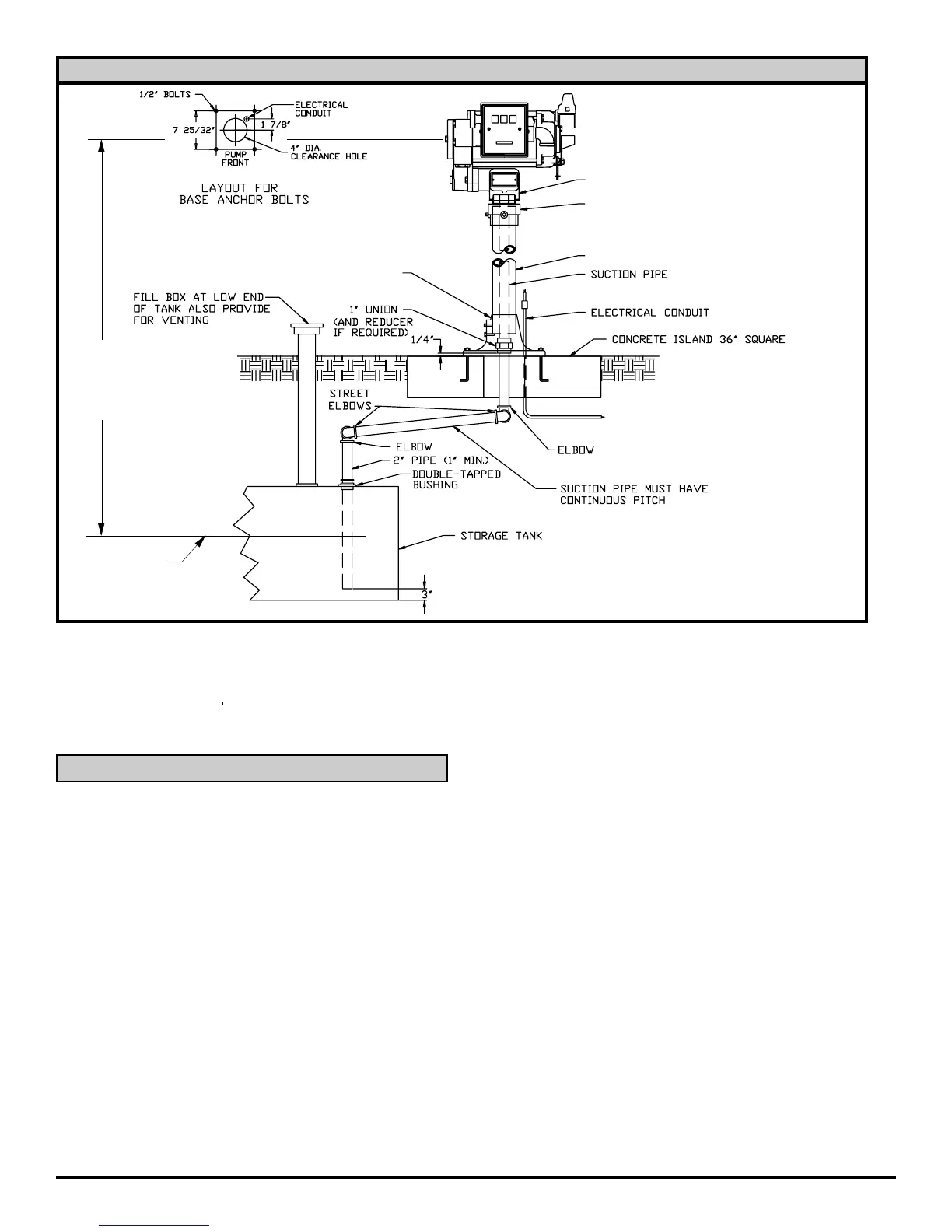

RECOMMENDED ISLAND INSTALLATION
The 700B is NOT compatible with the following fluids:
Acetone, Ammonia, Benzene, Bleach, Hydrochloric
Acid, Ink, Toluene, and Water
If in doubt about compatibility of a specific fluid, contact
supplier of fluid to check for any adverse reactions to the wetted
materials shown in parts list.
Pumps are furnished with a tank adapter for skid tank mount-
ing; pedestals are available for island installations. All tanks
must be properly vented. A pressure retaining vent-fill cap can
be used to reduce fuel loss due to evaporation. Use gasoline
and oil resistant pipe compound on all threaded joints. A water
separator should be used for pumping diesel fuel.
Pump has a built-in check valve with pressure relief to prevent
fluid thermal expansion from causing unsafe system pres-
sures. DO NOT USE ADDITIONAL CHECK VALVES OR FOOT
VALVES UNLESS THEY HAVE PROPER PRESSURE RELIEF
VALVES BUILT INTO THEM.
Skid Tank Mounting (See illustration)
1. Screw correct length of suction pipe into tank adapter
(700F2170). Suction pipe should extend to 3" above bot-
tom of tank.
2. Screw tank adapter into tank.
3. Mount pump on adapter.
Direct Mounting to Underground Tank
(See illustration)
1. Cut a 2" pipe to extend to approximately 31" above the
ground after installation. Thread both ends of the pipe.
2. Install pipe in tank flange. Screw 2" coupling onto top of
pipe.
3. Install correct length of suction pipe to adapter. Suction
pipe should extend to 3" above tank bottom.
4. Screw tank adapter (700F2170) into coupling on 2" pipe.
5. Mount pump on tank adapter.
Island Installation (See illustration)
1. Install tank and piping per illustration.
2. Install 1" union 1/4" above island.
3. Fasten suction pipe, union and coupler together.
4. Slip pedestal pipe over suction pipe and fasten to
coupler with set screws.
5. Slide pump base onto pedestal pipe; fasten to coupler.
6. Tighten union securely. Drop base into position; tighten
set screws and bolt.
7. Mount pump on tank adapter (700F2170).
Circuit Breakers
Power to the unit should be supplied from a dedicated 20 amp
circuit breaker. No other equipment should be powered from
this breaker. If two pumps are supplied from one breaker, that
breaker must be capable of handling the load of both motors.
Provision must be made to break both legs of any AC circuit.
10' MAX.-GASOLINE
3 m MAX.
15' MAX.-DIESEL
4.5 m MAX.
INSTALLATION
FLUID
LEVEL
PUMP
600F2190
COUPLER
600F2130 PEDESTAL PIPE
700F3060
PUMP BASE
