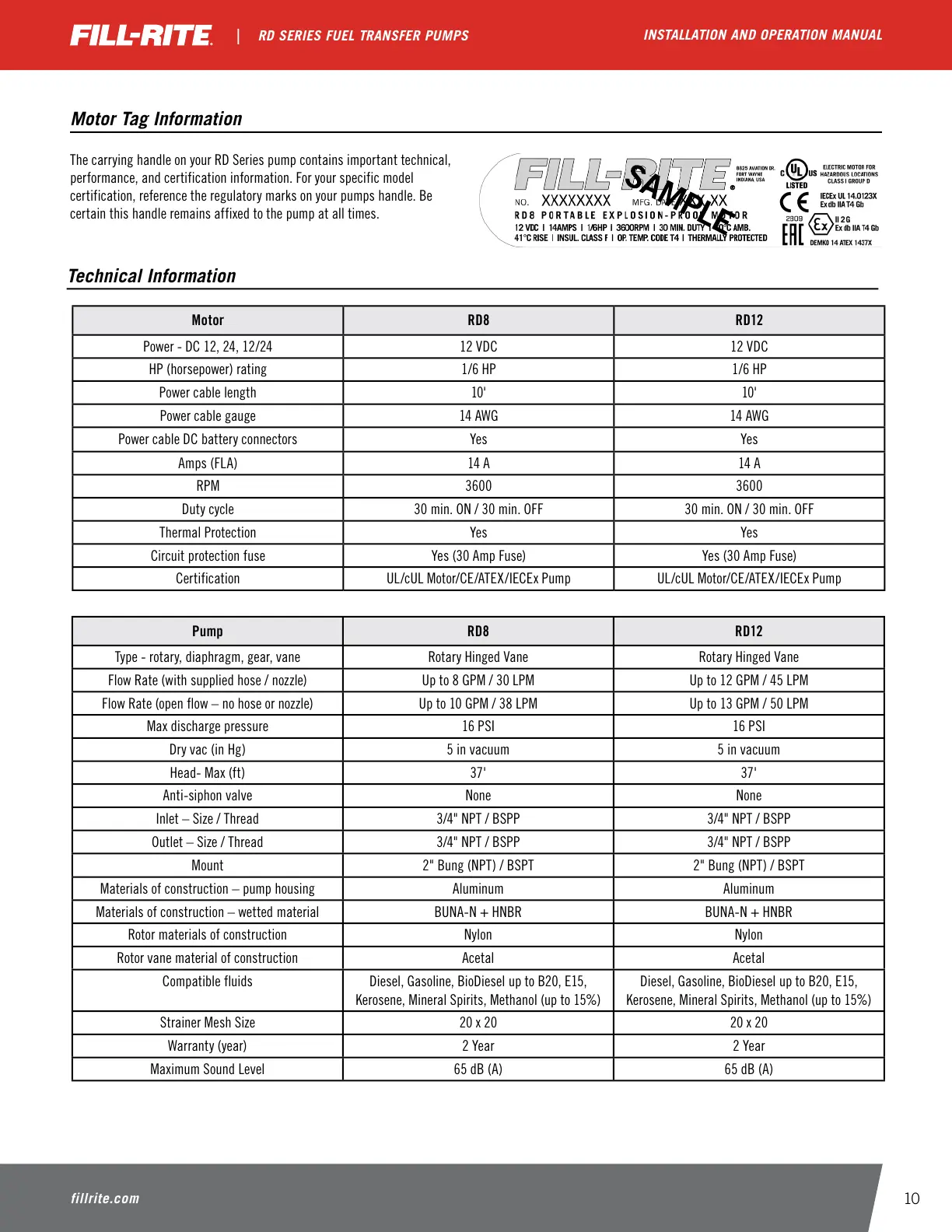

| RD SERIES FUEL TRANSFER PUMPS
INSTALLATION AND OPERATION MANUAL
Motor Tag Information
The carrying handle on your RD Series pump contains important technical,
performance, and certification information. For your specific model
certification, reference the regulatory marks on your pumps handle. Be
certain this handle remains affixed to the pump at all times.
Technical Information
Pump RD8 RD12
Type - rotary, diaphragm, gear, vane Rotary Hinged Vane Rotary Hinged Vane
Flow Rate (with supplied hose / nozzle) Up to 8 GPM / 30 LPM Up to 12 GPM / 45 LPM
Flow Rate (open flow – no hose or nozzle) Up to 10 GPM / 38 LPM Up to 13 GPM / 50 LPM
Max discharge pressure 16 PSI 16 PSI
Dry vac (in Hg) 5 in vacuum 5 in vacuum
Head- Max (ft) 37' 37'
Anti-siphon valve None None
Inlet – Size / Thread 3/4" NPT / BSPP 3/4" NPT / BSPP
Outlet – Size / Thread 3/4" NPT / BSPP 3/4" NPT / BSPP
Mount 2" Bung (NPT) / BSPT 2" Bung (NPT) / BSPT
Materials of construction – pump housing Aluminum Aluminum
Materials of construction – wetted material BUNA-N + HNBR BUNA-N + HNBR
Rotor materials of construction Nylon Nylon
Rotor vane material of construction Acetal Acetal
Compatible fluids Diesel, Gasoline, BioDiesel up to B20, E15,
Kerosene, Mineral Spirits, Methanol (up to 15%)
Diesel, Gasoline, BioDiesel up to B20, E15,
Kerosene, Mineral Spirits, Methanol (up to 15%)
Strainer Mesh Size 20 x 20 20 x 20
Warranty (year) 2 Year 2 Year
Maximum Sound Level 65 dB (A) 65 dB (A)
Motor RD8 RD12
Power - DC 12, 24, 12/24 12 VDC 12 VDC
HP (horsepower) rating 1/6 HP 1/6 HP
Power cable length 10' 10'
Power cable gauge 14 AWG 14 AWG
Power cable DC battery connectors Yes Yes
Amps (FLA) 14 A 14 A
RPM 3600 3600
Duty cycle 30 min. ON / 30 min. OFF 30 min. ON / 30 min. OFF
Thermal Protection Yes Yes
Circuit protection fuse Yes (30 Amp Fuse) Yes (30 Amp Fuse)
Certification UL/cUL Motor/CE/ATEX/IECEx Pump UL/cUL Motor/CE/ATEX/IECEx Pump
