Fimco PRO Series - System Component Details; Parts Identification; Plumbing Assembly Details; Manifold and Intake Assembly

Page 11

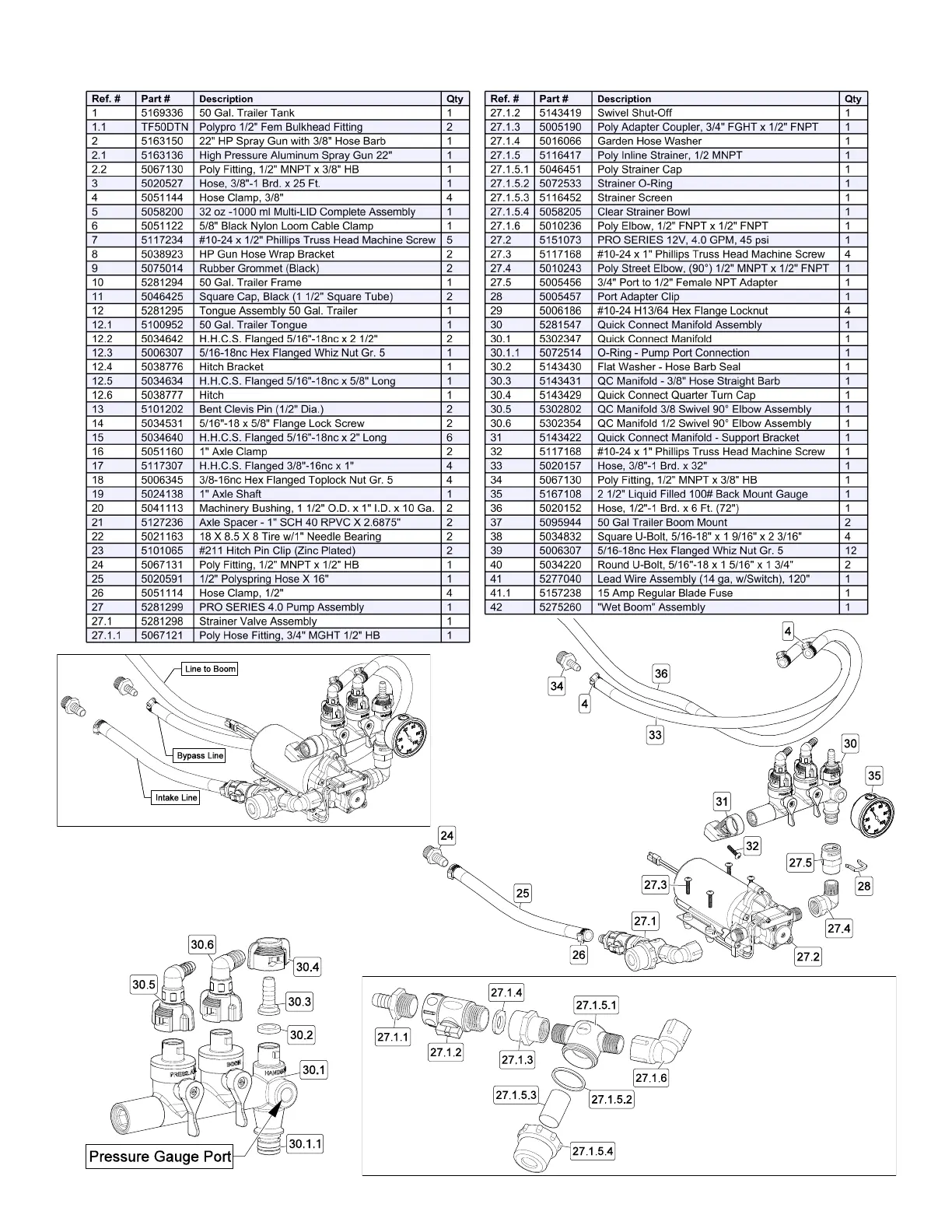

Parts List: LG-50-TRL-PRO-BL (5302930)
This sprayer comes with an
On/Off (shut-off) valve located
just before the strainer. You
must make sure the valve is in
the “open” position before
using your sprayer.
Manifold
Detail
Plumbing
Detail
Intake Assembly
