FIMI X8 MINI User Manual

Tap any position on the app to meter the light or lock the exposure value.

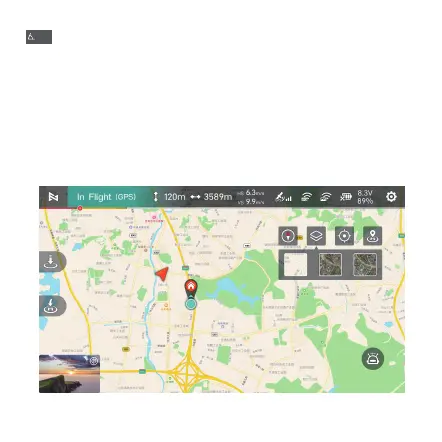

Interface of map:
7. Light metering and locked exposure
8. Map: Display the location of drone. Switch interfaces from specific
map, orientation ball and guided map.
41
：Display the current pitch angle of the gimbal，Long press the gimbal for more
than 2 seconds to vertically downward, double-click the gimbal to return to
center
-57.3

FIMI X8 MINI Specifications

General

Max Flight Time	31 minutes
Camera Resolution	12 MP
Video Resolution	4K at 30fps
Max Speed	16 m/s
Max Transmission Distance	8 km
Dimensions (Folded)	145 x 85 x 56 mm
Dimensions (Unfolded)	200 x 145 x 56 mm
Max Ascent Speed	5 m/s
Max Descent Speed	3.5 m/s
Positioning	GPS + GLONASS
Aperture	f/2.0
ISO Range	100-3200
Gimbal	3-axis
Charging Time	90 minutes
Max Wind Resistance	Level 5
Operating Frequency	5.725-5.850 GHz
Obstacle Avoidance	No
Weight	258 g
Battery Capacity	2400 mAh
