FIMI X8 MINI User Manual

Safety tips: Do not do the operation above during normal flight to avoid motors being
stopped in the air.
Stop propellers in an emergency

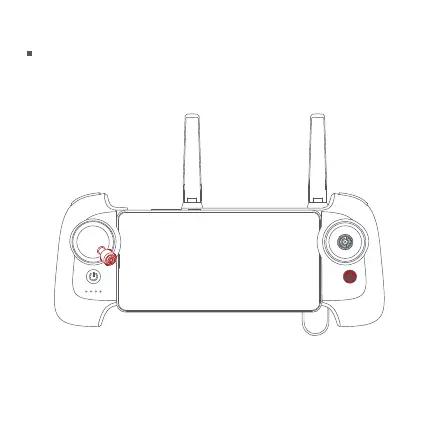

When motors can't properly turn off, please toggle the left stick to the bottom inner
in maximum range, and press Auto return-to-home button for 5 seconds
simultaneously, the motors will stop.
47

FIMI X8 MINI Specifications

General

Max Flight Time	31 minutes
Camera Resolution	12 MP
Video Resolution	4K at 30fps
Max Speed	16 m/s
Max Transmission Distance	8 km
Dimensions (Folded)	145 x 85 x 56 mm
Dimensions (Unfolded)	200 x 145 x 56 mm
Max Ascent Speed	5 m/s
Max Descent Speed	3.5 m/s
Positioning	GPS + GLONASS
Aperture	f/2.0
ISO Range	100-3200
Gimbal	3-axis
Charging Time	90 minutes
Max Wind Resistance	Level 5
Operating Frequency	5.725-5.850 GHz
Obstacle Avoidance	No
Weight	258 g
Battery Capacity	2400 mAh
