FIMI X8 MINI User Manual

44
2. Open the APP, click "connect" in Wi-Fi mode
：Virtual key switch

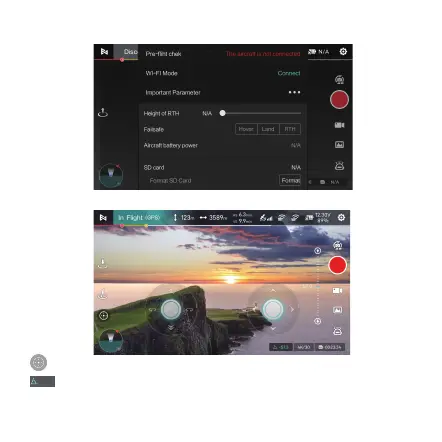

Follow the steps in the APP to display the interface after successful connection
：Click the gimbal angle, the adjustment bar will pop up on the right，Long press
the gimbal for more than 2 seconds to vertically downward, double-click the
gimbal to return to center
-57.3

FIMI X8 MINI Specifications

General

Max Flight Time	31 minutes
Camera Resolution	12 MP
Video Resolution	4K at 30fps
Max Speed	16 m/s
Max Transmission Distance	8 km
Dimensions (Folded)	145 x 85 x 56 mm
Dimensions (Unfolded)	200 x 145 x 56 mm
Max Ascent Speed	5 m/s
Max Descent Speed	3.5 m/s
Positioning	GPS + GLONASS
Aperture	f/2.0
ISO Range	100-3200
Gimbal	3-axis
Charging Time	90 minutes
Max Wind Resistance	Level 5
Operating Frequency	5.725-5.850 GHz
Obstacle Avoidance	No
Weight	258 g
Battery Capacity	2400 mAh
