12 13
Diode test Continuity test
Hz Frequency (Autoranging only)
CAP Capacitance (Autoranging only)
TEMP Temperature
⑮ SAFETY SHUTTER. Prevents user from making inadvertent
connections to the current termina
l
s. Caution: ALWAYS
REMOVE INPUTS BEFORE TURNING THE ROTARY
SWITCH.
10A MAX
FUSED . The maximum current that you can measure at
this terminal is 10Amps DC/AC. This terminal is fuse
protected.
. Refer to the user’s manual before using this Meter.
A (Ampered Input Terminal). The red test lead is plugged
into this terminal for measuring current on the 4A or 10A AC
or DC ampere functions.
mA µA (Milliamp/Microamp Input Terminal). The red test
lead is plugged into this terminal for measuring mA or µA on
either AC or DC ampere functions.
MAX
AC 750V
DC 1000V . The maximum voltage that this Meter can
measure is 1000V DC or 750V AC RMS.
. Be extremely careful when ma
k
i
ng high-vo
l
tage
mea
s
urements; DO NOT TOUCH TERMINALS OR TEST
LEAD PROBE ENDS.
VΩHz CAP
TEMP (Volts, Ohms, Diode Test, Frequency,
Capacitance and Temperature Input Terminal).
The red test lead is plugged into this terminal for all AC V,
DC V, Ohms, continuity test, diode test, frequenc
y
and
c
apacitance functions. When measuring temperature, a
thermocouple adapter is plugged into both this terminal and
the COM input terminal.
MAX
600V
. To avoid electrical shock or instrument damage, do
not connect the COM input terminal to any source of more
than 600V with respect to earth/ground.
COM (Common Terminal). The black test lead is plugged
into this terminal for all measurements.
W
hen measuring
temperature, a thermocouple adapter is plugged into this
terminal.

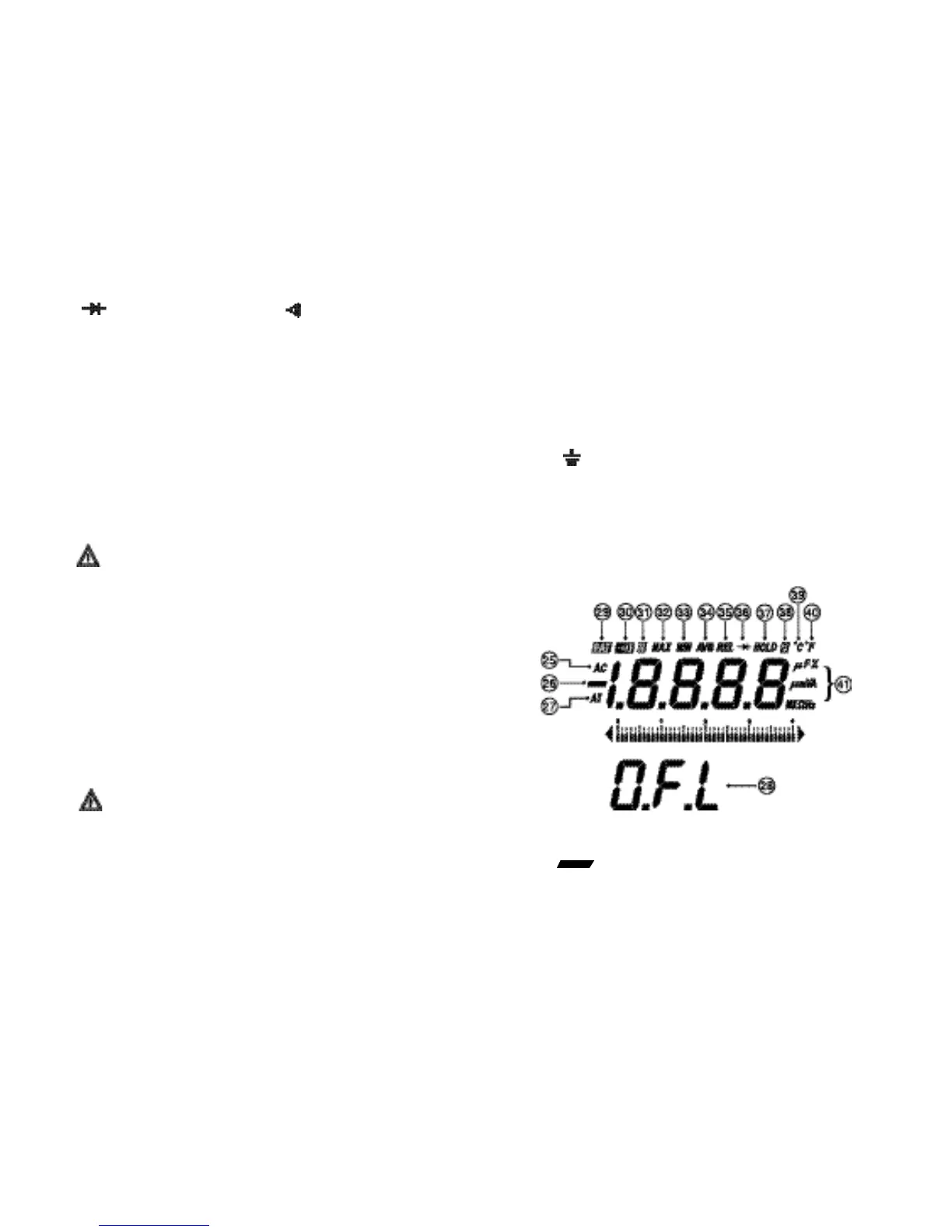

AC . Displayed when AC measurement function is selected.
(Negative Polarity). Automatically indicate negative
inputs.
