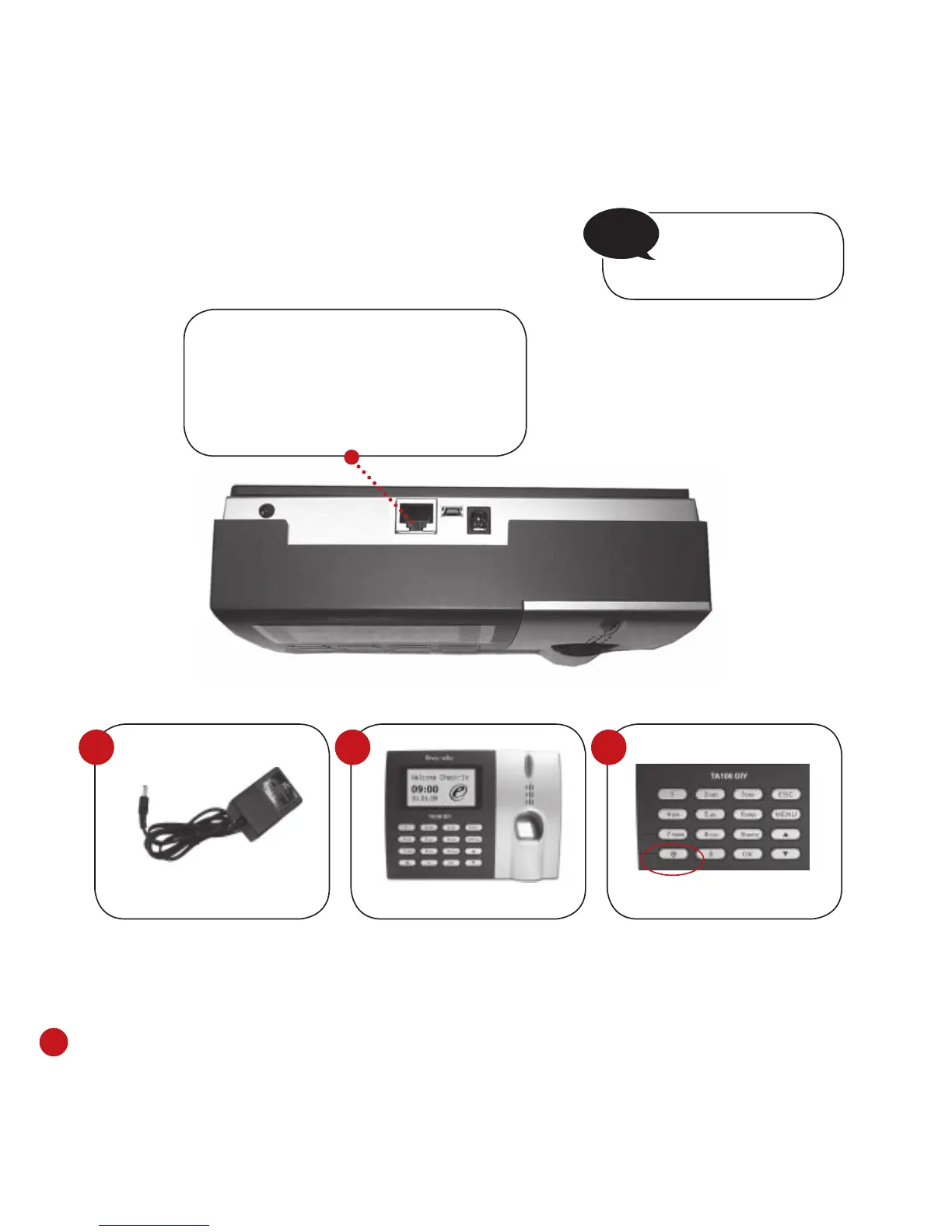

DC 5V POWER ADAPTER TA100 DIY READER POWER BUTTON
RJ45/cat. 5E cable
is not included in the
reader package.
TCP/IP PORT
This port is for connection in LAN environ-
ment. A straight RJ45/cat. 5E cable should
be plugged here to connect to a network
switch/hub. A crossover RJ45 cable is for
direct connection to a PC’s network port.
NOTE
TCP/IP is only applicable if the TA100 DIY was upgraded
to TA100 series and worked with FingerTec® TCMS V2
software)
1. Connect DC 5V power adapter to the reader.
2. Turn on the power supply.
3. Press the power button to switch on or shutdown the reader.
