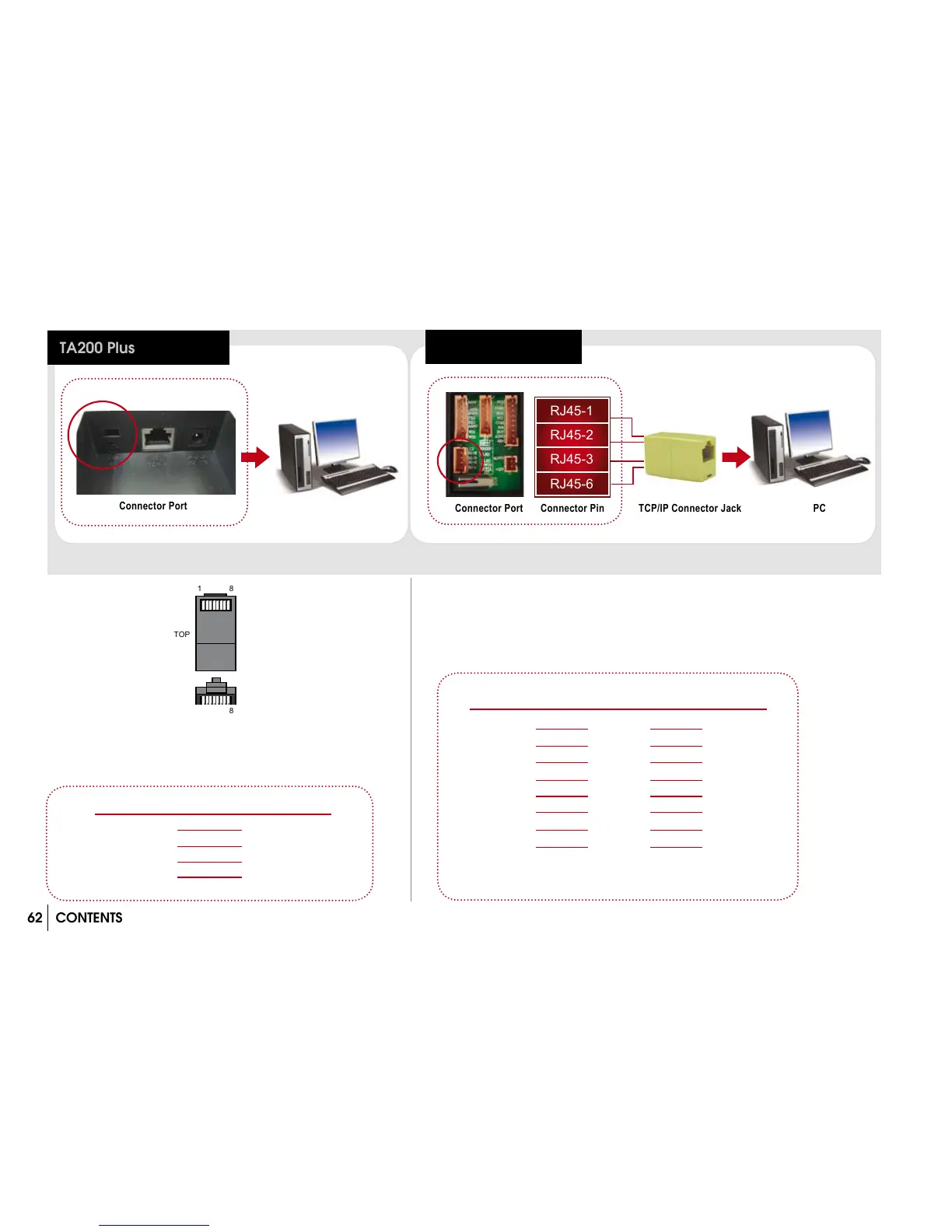

Connector Port Connector Pin TCP/IP Connector Jack PC
RJ45-1
RJ45-2
RJ45-3
RJ45-6
1 8
TOP
FRONT
1 8


Connector Port PC

This cable can be used to cascade hubs or for connecting two
Ethernet stations back-to-back without a hub. It works with both
10Base-T and 100Base-TX.
Joint 1 Pin Joint 2 Pin
TX+ 1
• •
3 RX+
TX- 2
• •
6 RX-
RX+ 3
• •
1 TX+
RX- 6
• •
2 TX-

This cable will work with both 10Base-T and 100Base-TX
and is used to connect a network interface card to a hub or
network outlet. These cables are sometimes called “whips”.
Connector Pin Cable Color Connector
TX+ 1
•
White/Orange
•
1 TX+
TX- 2
•
Orange
•
2 TX-
RX+ 3
•
White/Green
•
3 RX+
4
•
Blue
•
4
5
•
White/Blue
•
5
RX- 6
•
Green
•
6 RX-
7
•
White/Brown
•
7
8
•
Brown
•
8
