Finn B-40 - Blower Shaft Assembly Parts; Components of the Blower Shaft

15
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
B40 MUA2018 Rev A

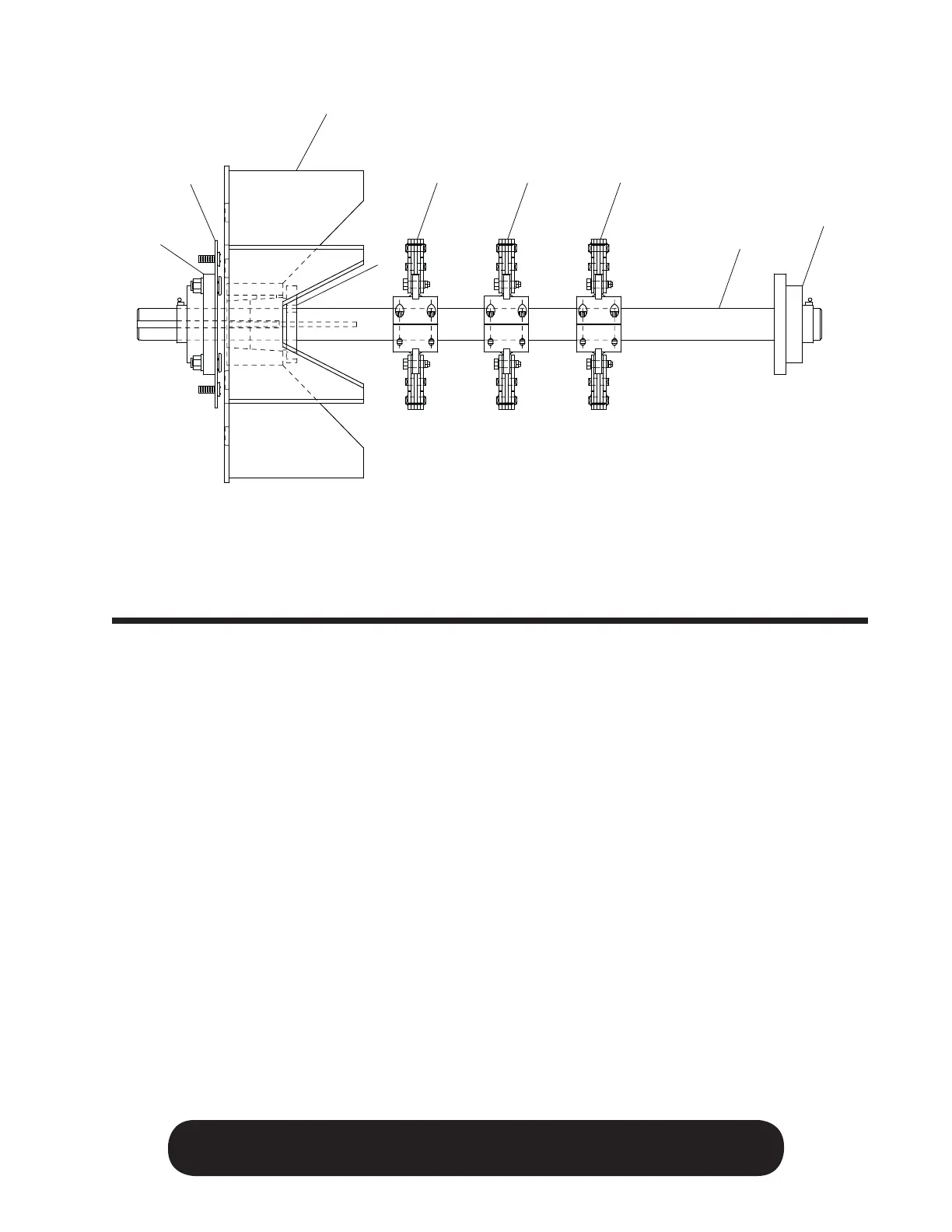

BLOWER SHAFT ASSEMBLY
Ref. No. Part No. Description No. Required
1 035033 Blower Shaft Bearing 2
2 035021 Shaft Pad Weldment 1
3 035104 Blower Blade Assembly 1
4 003051B Bushing, Q1 1-11/16 in. 1
190125-70 Blower Blade Key 1
5 035081 Beater Chain Assembly 3
022487 5/16 Flex Lock Pivot Nut 6
020119 Hardened Shoulder Bolt 6
035080 Beater Hub Weldment 3
020238 Beater Chains - 2 Pitch 6
6 035013 Blower Shaft 1
035074 Driven Sheave 1
035075 Gripnotch Belts - Matched set of 2 1
1
5
5
5
6
4
3
1
2
