Finn B-40 - Page 26

20
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
B40 MUA2018 Rev A

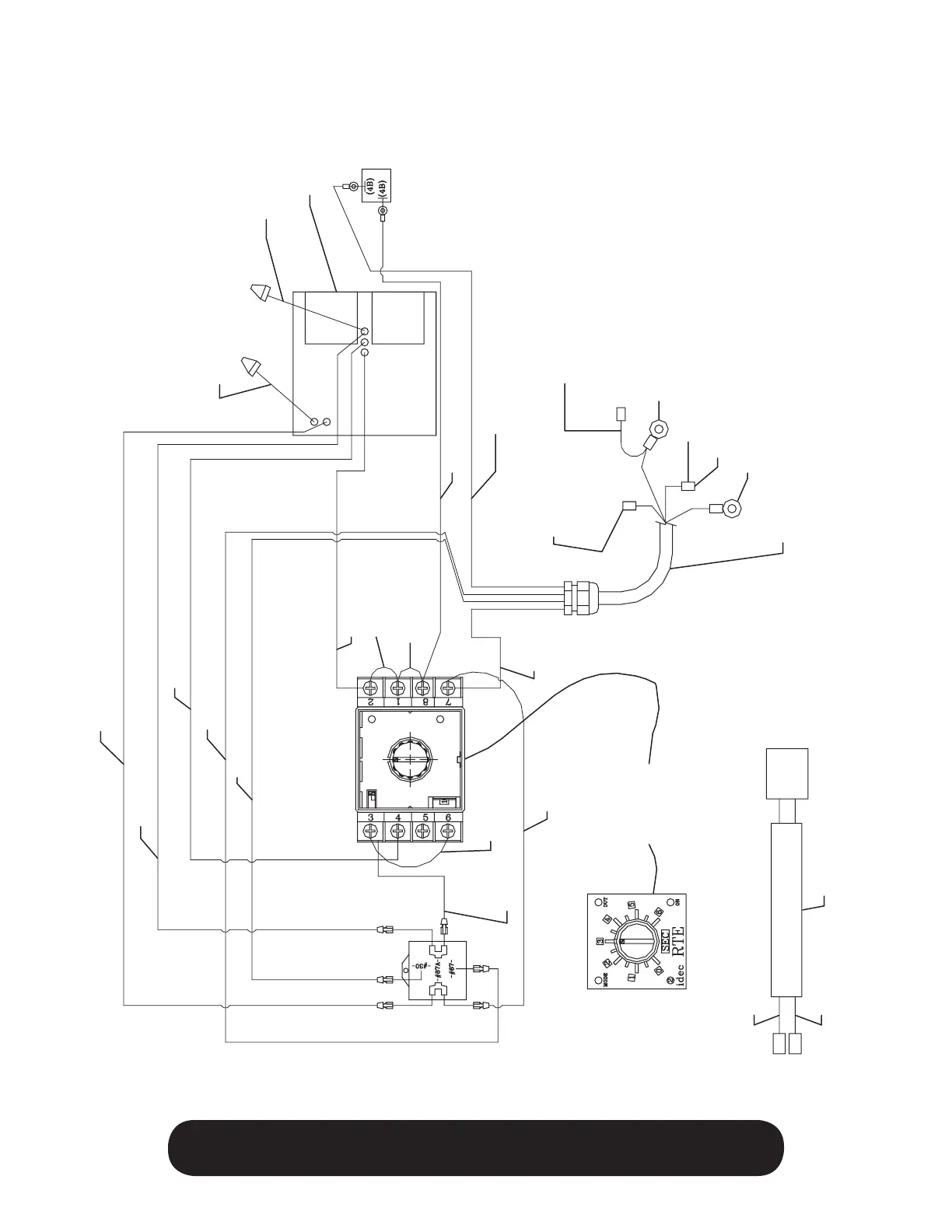

Mode = A Range = S Scale = “3” in bottom right window (timer knob all the way clockwise)
GREEN
GREEN
GREEN
YELLOW
YELLOW
YELLOW
Engine YELLOW
WHITE
WHITE
WHITE (12 Ga.)
RED
RED
BLACK
BLACK ~ Not Used
BLUE ~ Not Used
Power Pulse
Clutch + FF/MM BLACK
FF/MM
Clutch – FF/MM
Ground ~ B tting GREEN
FF/MM
Starter ~ B tting
3/8 in. Loom
Connect to
Timer Base
WHITE BLACK
HH/PP HH/PP
16/2 Cond. Cable
B A
35078
Packard
WHITE
YELLOW
