DIMENSIONS AND CLEARANCES

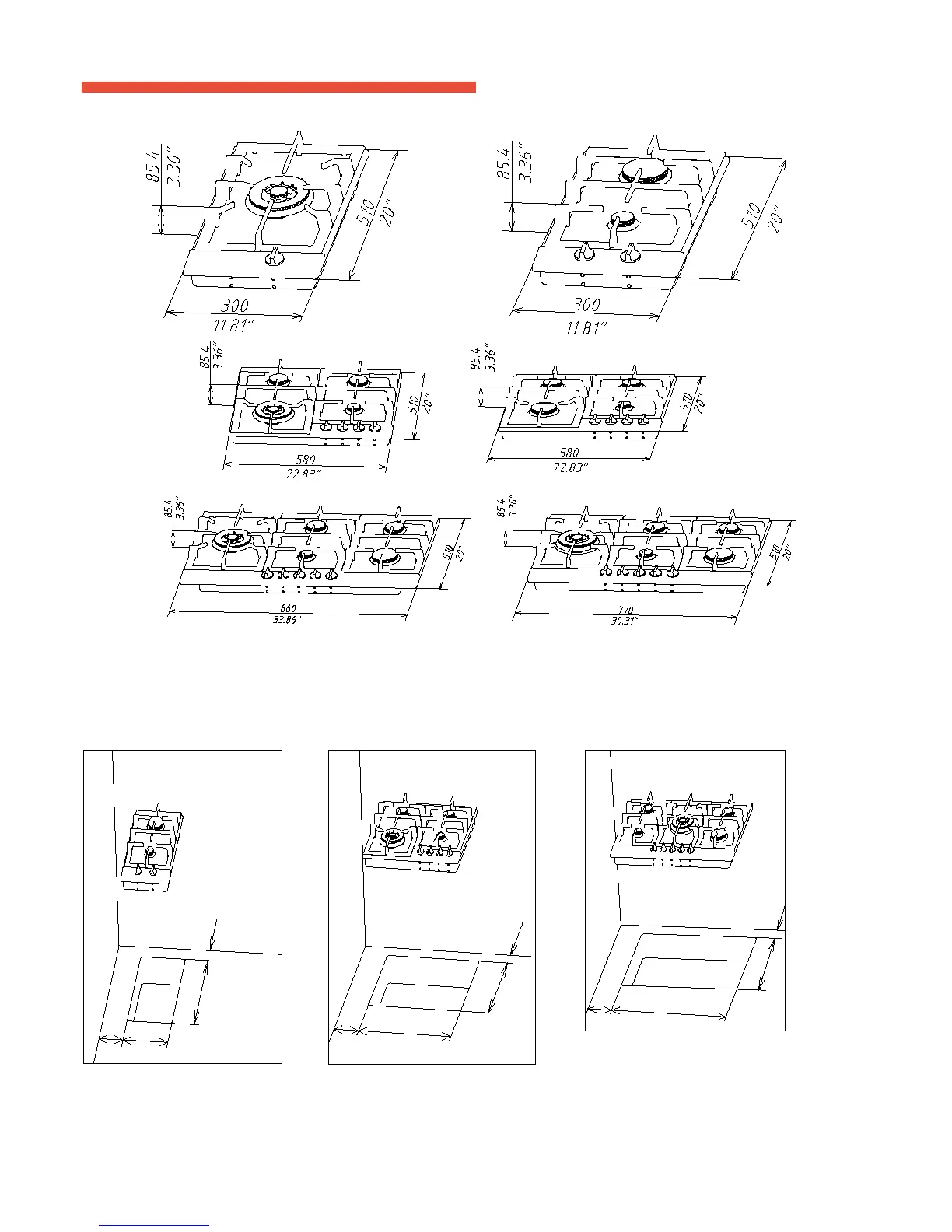

Overall cooktop dimensions:
Use a 36″ or wider base cabinet.
Cut the opening in the countertop. To ensure accuracy, it is best to make a template for the opening. Make sure the
sides of the opening are parallel also rear and front cuts are exactly perpendicular to the sides.
Observe all minimum clearances.
FI310 Series FI640 Series FI850/950 Series
Clearances Clearances Clearances
DIMENSIONS AND CLEARANCES
Observe all minimum clearances.
FI310 Series
Clearances
FI640 Series
Clearances
FI850/950 Series
Clearances
22"
5.9"
2.95"
19.29"
60cm cutting out
75
150
490
560
28.74"
5.9"
19.29"
2.95"
80
and
90cm cutting out
75
150
730
490
5.9"
11"
2.95"
19.29"
30cm cutting out
75
150
490
280
