DIMENSIONS AND CLEARANCES
Observe all minimum clearances.
FI310 Series
Clearances
FI640 Series
Clearances
FI850/950 Series
Clearances
22"
5.9"
2.95"
19.29"
60cm cutting out
75
150
490
560
28.74"
5.9"
19.29"
2.95"
80
and
90cm cutting out
75
150
730
490
5.9"
11"
2.95"
19.29"
30cm cutting out
75
150
490
280
INSTALLATION INSTRUCTIONS
Remove the screws on the sides of the cooktop burner box. Use those screws to attach the side mounting
brackets.
Insert the cooktop centered into the cutout opening. Make sure the front edge of the countertop is parallel to
the
cooktop. Check clearances at the front, back and
sides.

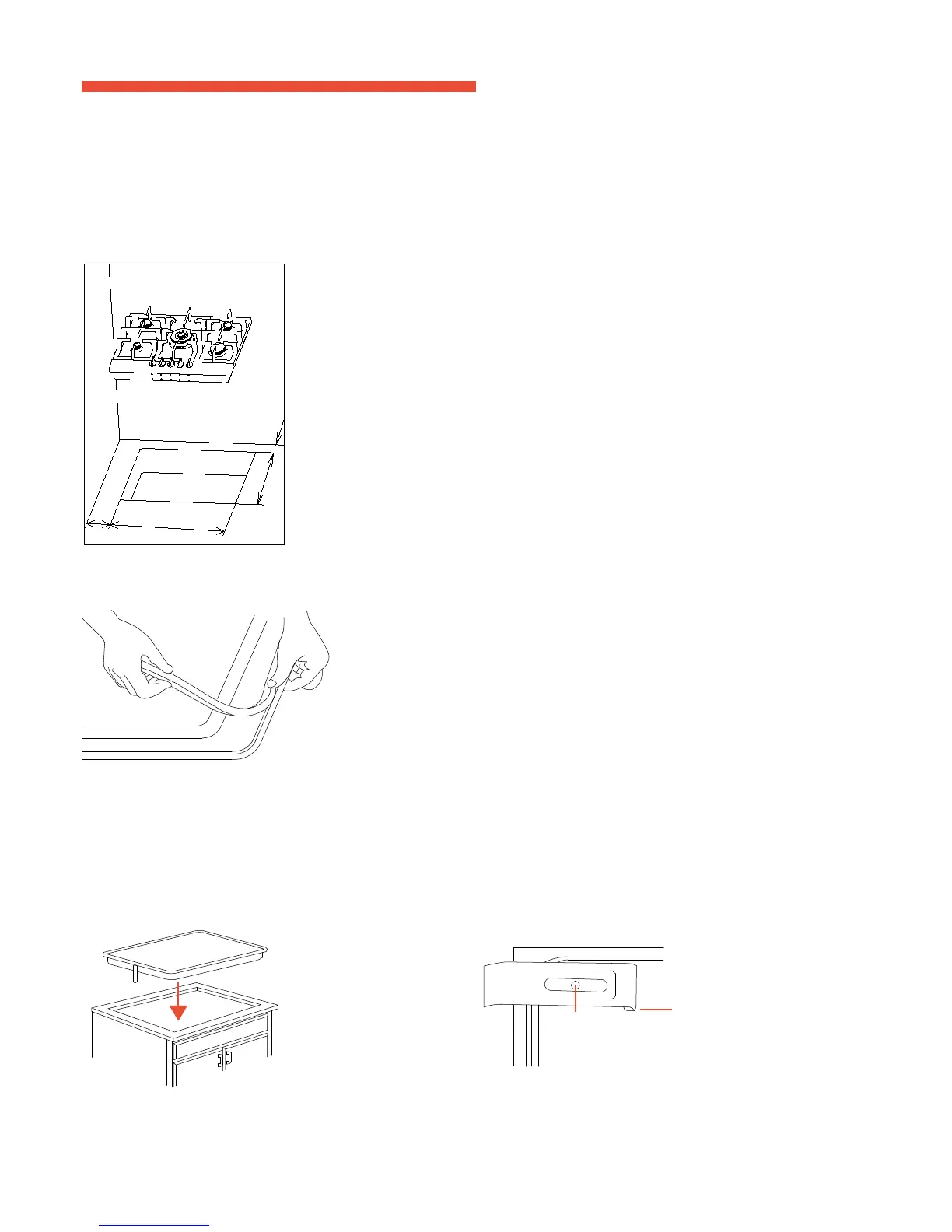

FIGURE A
Secure the hold-down bracket to the cabinet sides with
screws.
Cut the opening in the countertop. To ensure accuracy it is
best
to
make a template (see Figure A) for the
opening.
Make sure the sides are parallel also rear and front cuts are
exactly
perpendicular to the sides. Observe all minimum
clearances
Please refer to your exact model number for the
correct
cut-out
dimensions
FIGURE B
Before inserting the cooktop into the opening in
the
coun-
tertop, remove the grates and burner caps, turn
the
cook-
top upside down and place the special foam
gasket
around
the bottom edge of the cooktop (see Figure B). It
is
im-
portant to x this gasket evenly, without gaps or
overlap-
ping, to prevent liquid seeping underneath the
cooktop.
After the foam gasket has been afxed, place
the
cooktop into the countertop (see Figure
C).
FIGURE C
Secure cooktop from underneath with the
supplied
clips
and screws (see Figure
D).
FIGURE D
INSTALLATION INSTRUCTI
FIGURE B
FIGURE A
FIGURE C
FIGURE D
ONS
1. INSTALL THE COOKTOP
A Remove the screws on the sides of the cooktop burner box. Use those screws to attach the side mounting brackets.
B. Insert the cooktop centered into the cutout opening. Make sure the front edge of the countertop is parallel to the
cooktop. Check clearances at the front, back and sides.
Secure the hold-down bracket to the cabinet sides with screws.
Cut the opening i
n the countertop. To ensure accuracy it is best
to make a template (see Figure A) for the opening.
Make sure the sides are parallel also rear and front cuts are exactly
perpendicular to the sides. Observe all minimum clearances
Before inserting the cooktop into the opening in the
countertop, remove the grates and burner caps, turn the
cooktop upside down and place the special foam gasket
around the bottom edge of the
cooktop (see Figure B). It is
important to fix this gasket evenly, without gaps or overlap-
ping, to prevent liquid seeping underneath the cooktop.
After the foam gasket has been affixed, place the
cooktop into the countertop (see Figure C).
Secure cooktop from underneath with the supplied
clips and screws (see Figure D).
28.74"
5.9"
19.29"
2.95"
80
and
90cm cutting out
75
150
730
490
Please refer to your exact model number for the correct
cut-out dimensions
