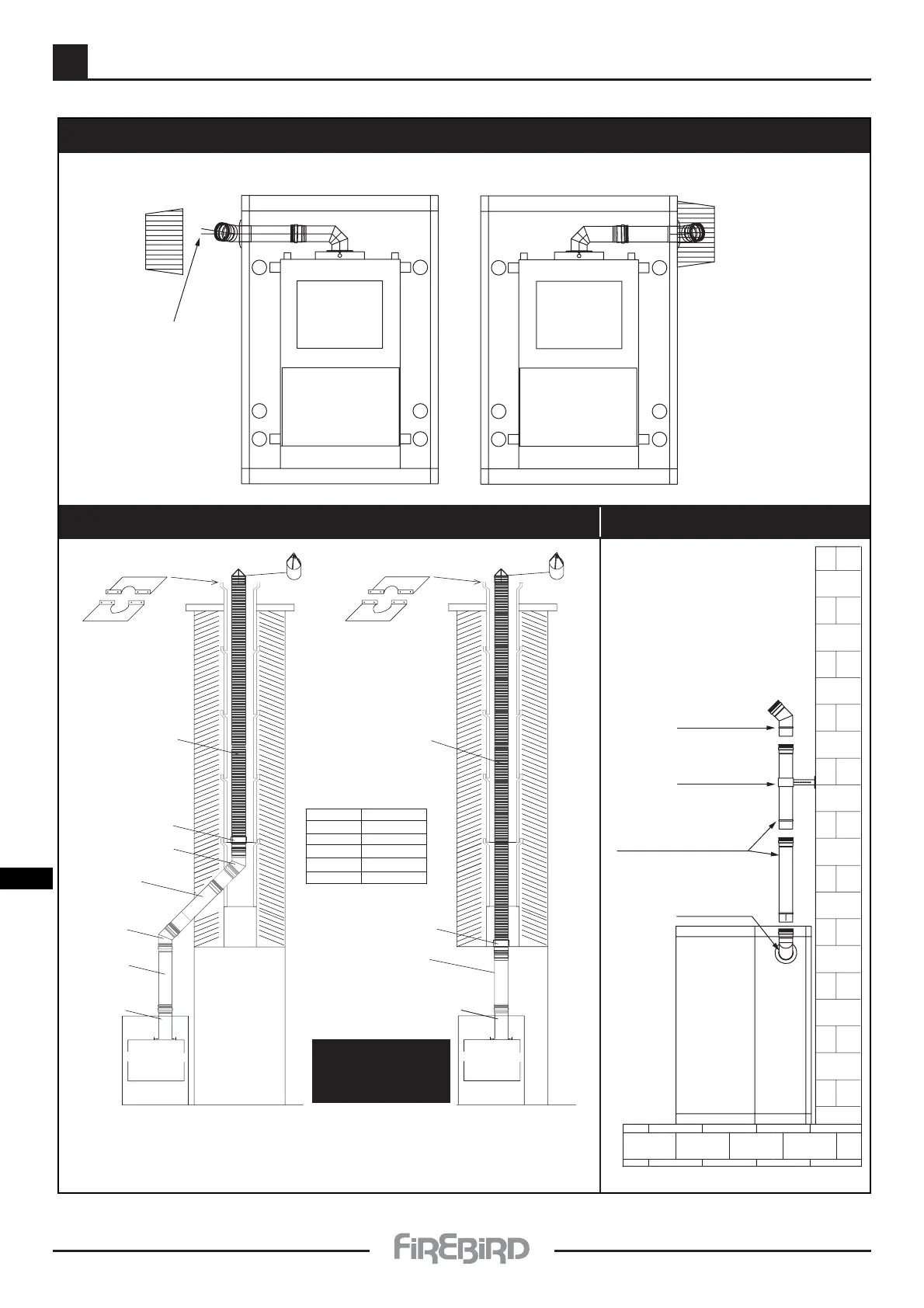

PLUME KIT.
Boiler.
For Right Hand Flue option.
Remove the two screws securing
the flue, rotate flue and swap the
removable side panels.
45˚ Terminal should be tilted
up to prevent condensate
droping from end of flue.
Boiler.
80 mm 45˚ Bend
Wall bracket
Extensions
X=250 / 500 / 1000 / 1250 [mm]
80 mm 90˚ Bend
CONDENSING BOILER CHIMNEY INSTALLATION
System 35 Flexible liner
Suitable for condensing
applications
System 35
Adaptor
45˚ Bend
500mm
Adjustable Length
45˚ Bend
500mm
Length
Boiler Adaptor
System 35
Clamp plate
Condensing
Birdguard
Condensing
Birdguard
System 35
Clamp plate
System 35 Flexible liner
Suitable for condensing
applications
System 35
Adaptor
500mm
Adjustable Length
Boiler Adaptor
Condensing
Boiler
Condensing
Boiler
Boiler
C26
C35
C44
C58
C73
Diameter
100mm
100mm
125mm
125mm
150mm
FLUE SIZE
NOTE:
All brick chimney constructions must comply with current building
regulations and BS 5410: Part 1. Insulated factory made chimneys
should comply with BS 4543.
Single wall stainless flue
suitable for condensing
boilers. Available in
stainless steel finish or
white finish
HEAT PAC FLUE
Firebird Enviromax Condensing Range
6
52
6.5 - FLUE SYSTEMS - HEAT PAC
INSTALLATION INSTRUCTIONS SUPPLIED WITH ALL FLUE KITS
