Firebird Enviromax Condensing Range
6
45

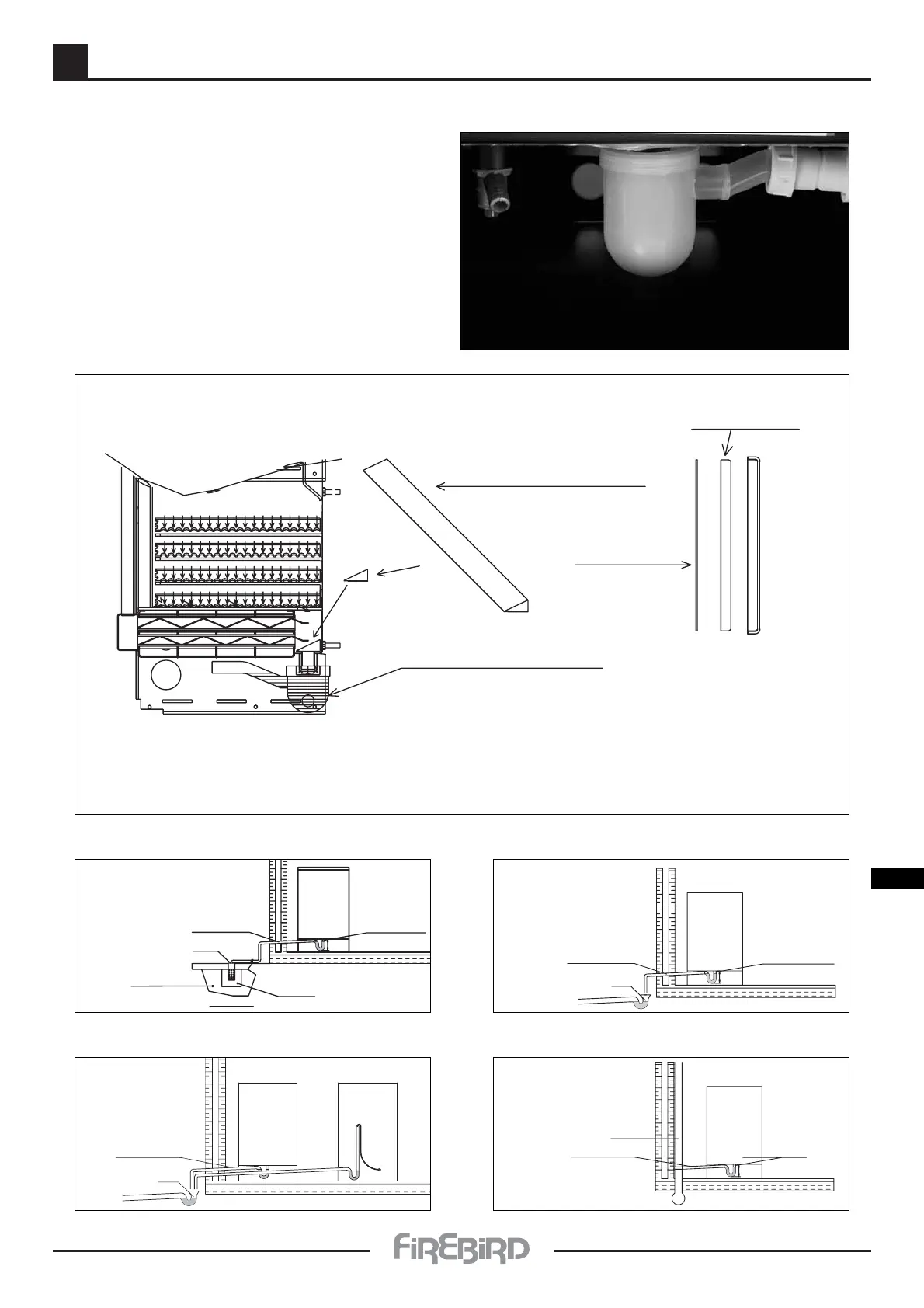

6.3 - CONDENSATE DISPOSAL - OPTION 1
Before switching on your Firebird condensing oil boiler check that:
(1) The float & condense drain baffle are in place. (2) That the condense trap is primed.
(3) The condense discharge pipe is a corrosion resistant pipe.
Condense Baffle and Condense Trap
Condense Drain Baffle
Door sealing
membrane.
Condense Drain Float
Door Gasket.
Door.
The Condense Trap is located
at the base of the boiler
Boiler
Sealed
Condense Drain
Discharge Pipe
75mm
Lime Stone
Chippings
Free Draining Soil
Soak Away.
figure 1.
Boiler
Gully
Condense Drain
Washing
Machine.
Trap.
Waste Pipe.
figure 2.
Discharge Pipe must
have a minimum diameter
of 20mm, and it must be
supported with a 2.5˚
(1:40) fall from boiler.
Discharge Pipe
Gully
Boiler
Condense Drain
75mm
figure 3.
Boiler
Stack
Condense Drain
Discharge Pipe
75mm
Discharge Pipe must
have a minimum
diameter of 20mm and
it must be supported
with a 2.5˚ (1:40) fall
from boiler.
figure 4.
CONDENSATE DISPOSAL
SYSTEM NO.1
CONDENSATE TRAP
IMPORTANT
Always prime condense trap.
Fig. 1
