Firebird Enviromax Condensing Range
2
6
HOUSEHOLDER
DHW ON. On Indicator light. CH. On Indicator light.
Burner Lock Out Indicator light.
High Limit Thermostat Indicator light.
MAX. = 80˚C.
MIN. = 60˚C.
Knock Out For Firebird Twin Timer Kit.
SYSTEM PRESSURE GAUGE.
SYSTEM PRESSURE.
C˚
MIN.
MAX.
MID.
Lock
Out
Limit
Stat.
Out to drain.
Out to drain.
Inlet connecting condense pump inlet
to condense drain at base of boiler.
Condense Pump.
Inlet
2
3
0
4
(When Fitted)
Operation Lights
Pressure Gauge
Temperature
Control
Twin Timer Positions
(Optional Extra)
CONDENSE PUMP
(WHEN FITTED)

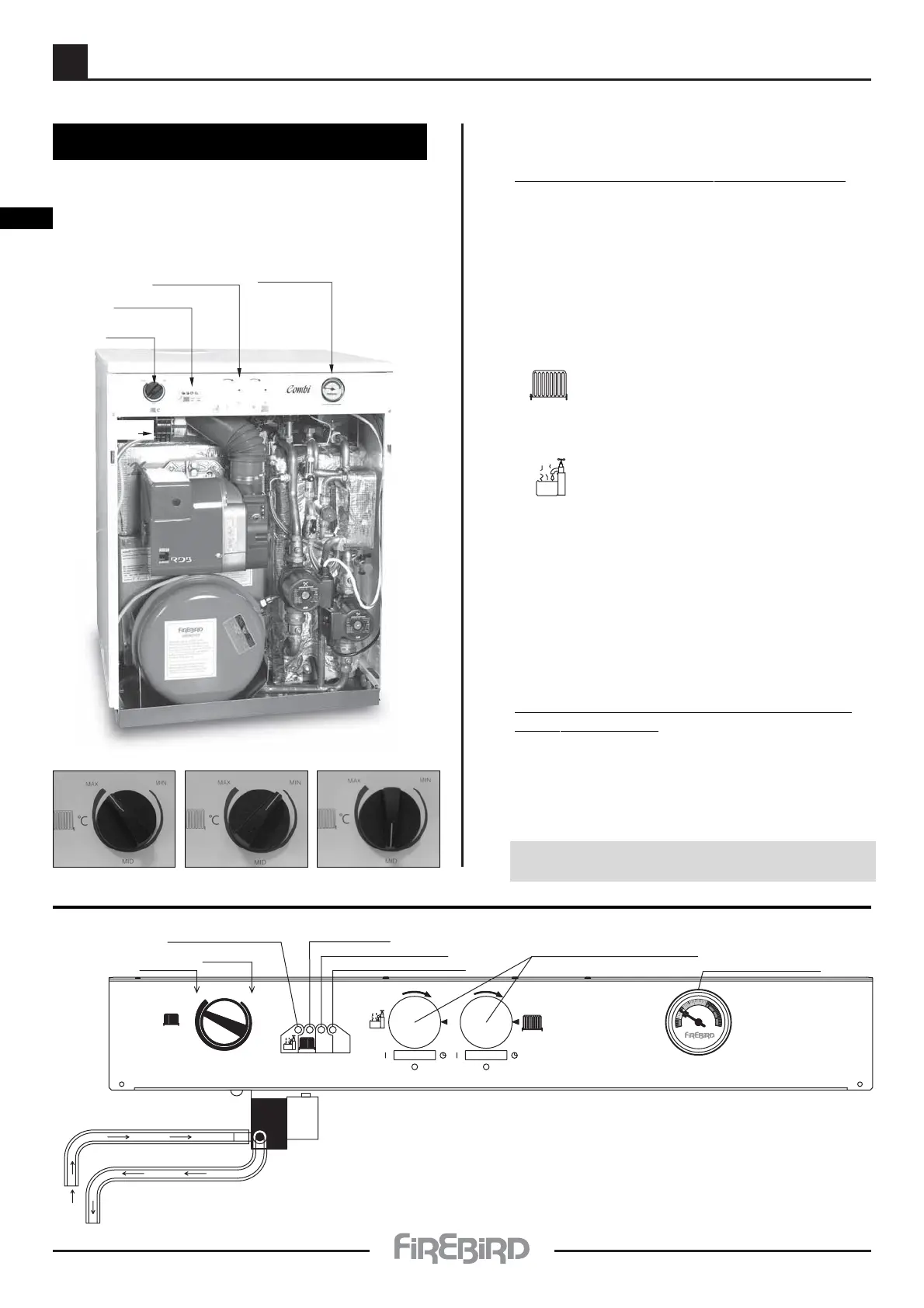

COMBI C OPERATING PROCEDURE
TO START THE BOILER FOLLOW THIS SEQUENCE:
 Turn on fuel supply.
 Switch onpower supply to boiler.
 Set the boiler thermostat to the required
temperature.( For Central Heating
Max.80˚C,Min.60˚C )
 Set timers if fitted - See Page 8 & 9.
The central heating thermostat controls the
boiler when in central heating mode only,
thus maintaining the required boiler water
temperature output for central heating.
Domestic hot water temperature is
controlled by separate non adjustable
thermostat,plus thermostatic mixing valve.
See Page 10.
Safe operation is also maintained by the burner
control system which provides the required ignition
and shut off sequence.
If the optional timer controls are fitted these will
automatically switch the boiler off and on,as and
when Cental Heating or Domestic Hot Water is
required.
THE BOILER C
AN BE
TURNED OFF BY ANY OF THE
FOLLO
WING MEANS:
 Turn both timer switches to OFF.(WHEN FITTED)
 Turn OFF the mains electrical supply to the boiler.
 Unplug the 7 pin plug from control panel
WHEN SERVICING ALWAYS SWITCH OFF THE MAINS
SUPPLY TO THE BOILER
COMBI MODEL
Enviromax Combi White Cased
and Combipac Operating
Procedure
(All models)
THERMOSTAT CONTROL
MAX. MIN. MID.
