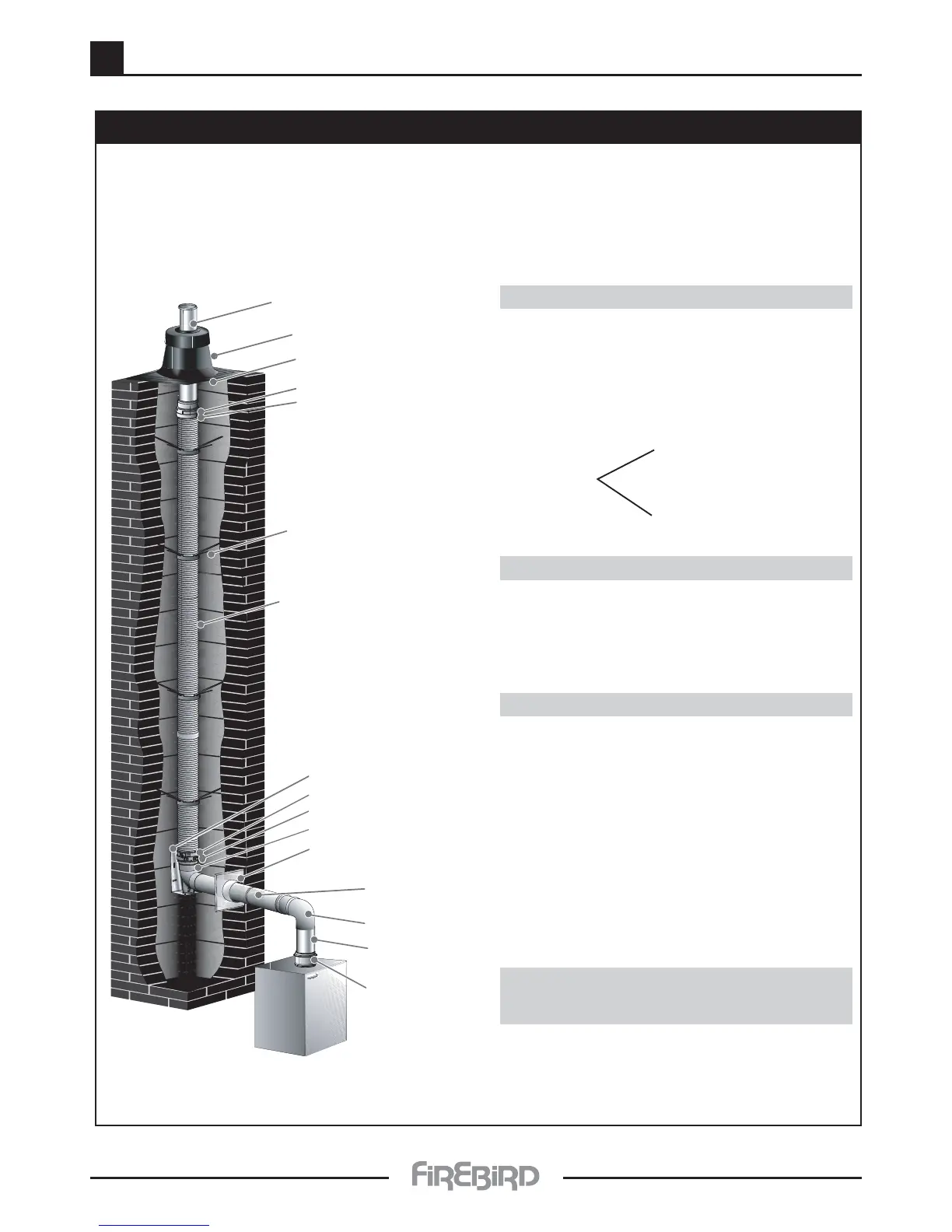

CONDENSING BOILER CHIMNEY INSTALLATION
B. Chimney Cap
D. Flex Adapter
K. Wall Plate
L. SS Pipe Length
(adjustable 22”-36”)
O. SS Boiler Adapter
F. Spacer (4)
Double-wall Flex
(sold separately)
M. SS 90º Elbow
G. Flex Chimney Support
C. Support Bracket
N. SS Pipe Length
(adjustable 12”-16”)
A. SS Termination
E. Viton Gasket
H. Viton Gasket
J. PP Elbow Thimble Extension
I. PP Flex Adapter
Firebird Condensing Boiler
4
19
4.3 - VENT SYSTEMS
INSTALLATION INSTRUCTIONS SUPPLIED WITH ALL FLUE KITS
A Polypropelene Chimney Liner Kit is perfect for retro-fit applications with an existing chimney.
Max Flexible Liner Length 100’
Max Boiler Connection Pipe Equivalent Length15’
CHIMNEY CAP KIT 3” POLY PRO
SALES CODE PRODUCT DESCRIPTION
FB 3PPS-CLK Includes a Chimney Cap
and Boiler Connection Kit
3” Cap / Basce Connections
(Items A thru K)
3” SS Boiler Connection Kit
(Items L thru O)
L - Adjustable Pipe from 22-36“
M - 90 Degree Elbow
N - Adjustable Pipe from 12-16”
O - Boiler Adapter
FLEX LINER 3” Poly Pro Liner
SALES CODE PRODUCT DESCRIPTION
FB 3PPS-FLEX25 3” X 25’ Flex Chimney Liner
FB 3PPS-FLEX35 3” X 35’ Flex Chimney Liner
FB 3PPS-FLEX50 3” X 50’ Flex Chimney Liner
ADDITIONAL BOILER CONNECTION PIPE 3” SS
SALES CODE PRODUCT DESCRIPTION
FB PDK500KIT 3 inch dia. 20“ length
FB PDK1000KT 3 inch dia. 39” length
FB PDK1250KT 3 inch dia. 49“ length
FB PDK420KIT 3 inch dia. adj length 12/16”
FB PDK920KIT 3 inch dia. adj. length 22 /36 “
FB PDK045BND 3 inch dia. 45 degree elbow
(1.5 ‘ Equiv. length)
FB PDK090BND 3 inch dia. 90 degree elbow
(3’ Equiv. length)
NOTE:
All brick chimney constructions must comply
with current regulations.
7’ equivalent
length
