BALANCED FLUE SYSTEMS
42 inch
45˚ Elbow
hcni 01
G
F E E E
h
cn
i
02
hc
n
i
93
hcni 5
.
61 / 21
h
cn
i
63 / 22
Firebird Condensing Boiler
4
20
4.3 - VENT SYSTEMS

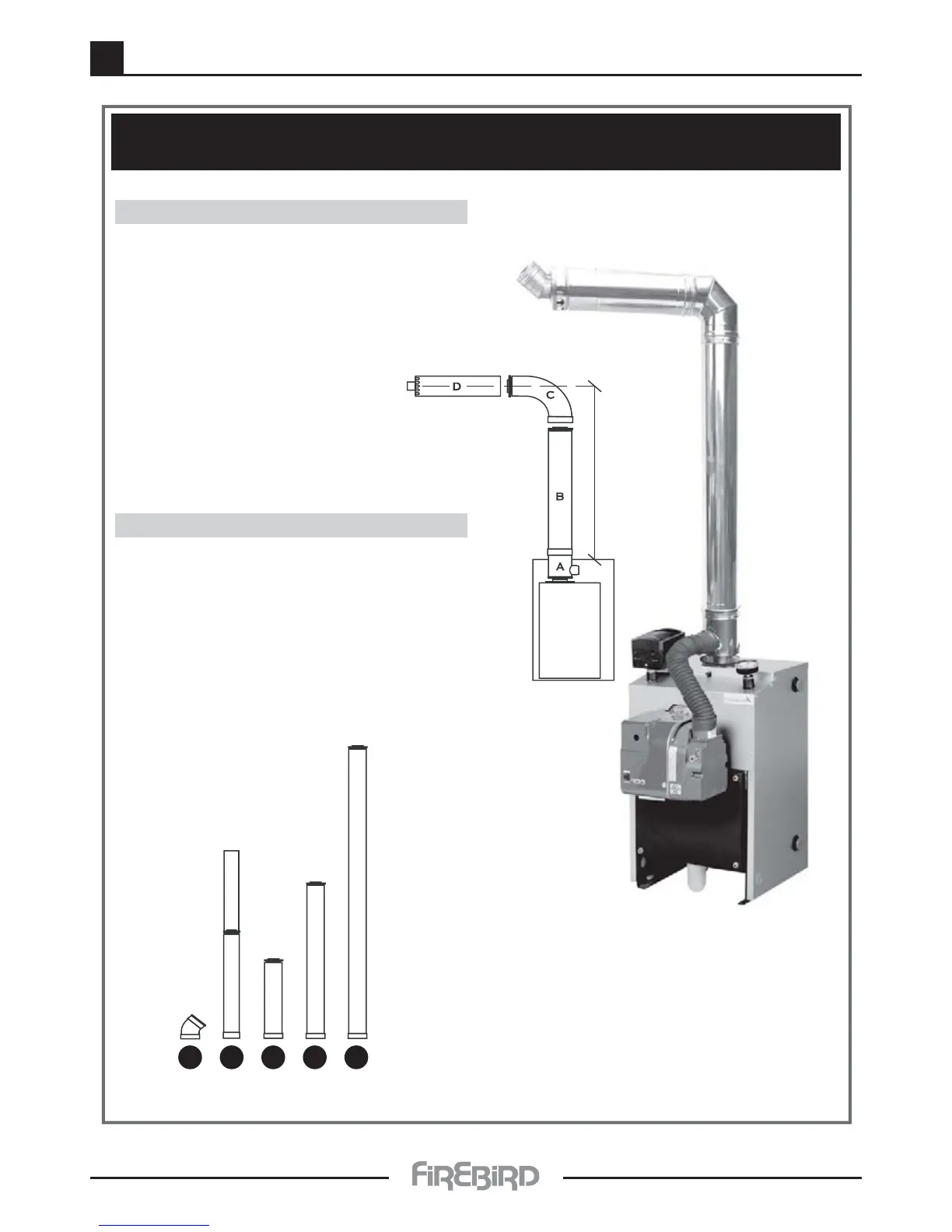

BALANCED Flue Kit
SALES CODE PRODUCT DESCRIPTION
FB HLF005HHL 42 inch Balanced Flue Kit (Stainless Steel)
(5 inch outer diameter)
Balanced Flue Kit Contents:
(8’ Equivalent Length)
A Boiler Adapter
B 39 inch length
C 90° Elbow
D 20 inch xed
Please Note:
90° Elbow equivalent to 3 feet length
20’ Maxiumum equivalent length
BALANCED Flue Kit Extensions
SALES CODE PRODUCT DESCRIPTION
E FB HLF005EXA 39 inch extension
E FB HLF005EXB 20 inch extension
E FB HLF005EXC 10 inch extension
F FB HLF005EXD 12 inch / 16.5 inch adj. length
F FB HLF005EXE 22 inch / 36 inch adj. length
G FB HLF455ELB 45 degree elbow
H FB HLF905ELB 90 degree elbow
INSTALLATION INSTRUCTIONS SUPPLIED WITH ALL FLUE KITS
