Firebird Condensing Boiler
2
5

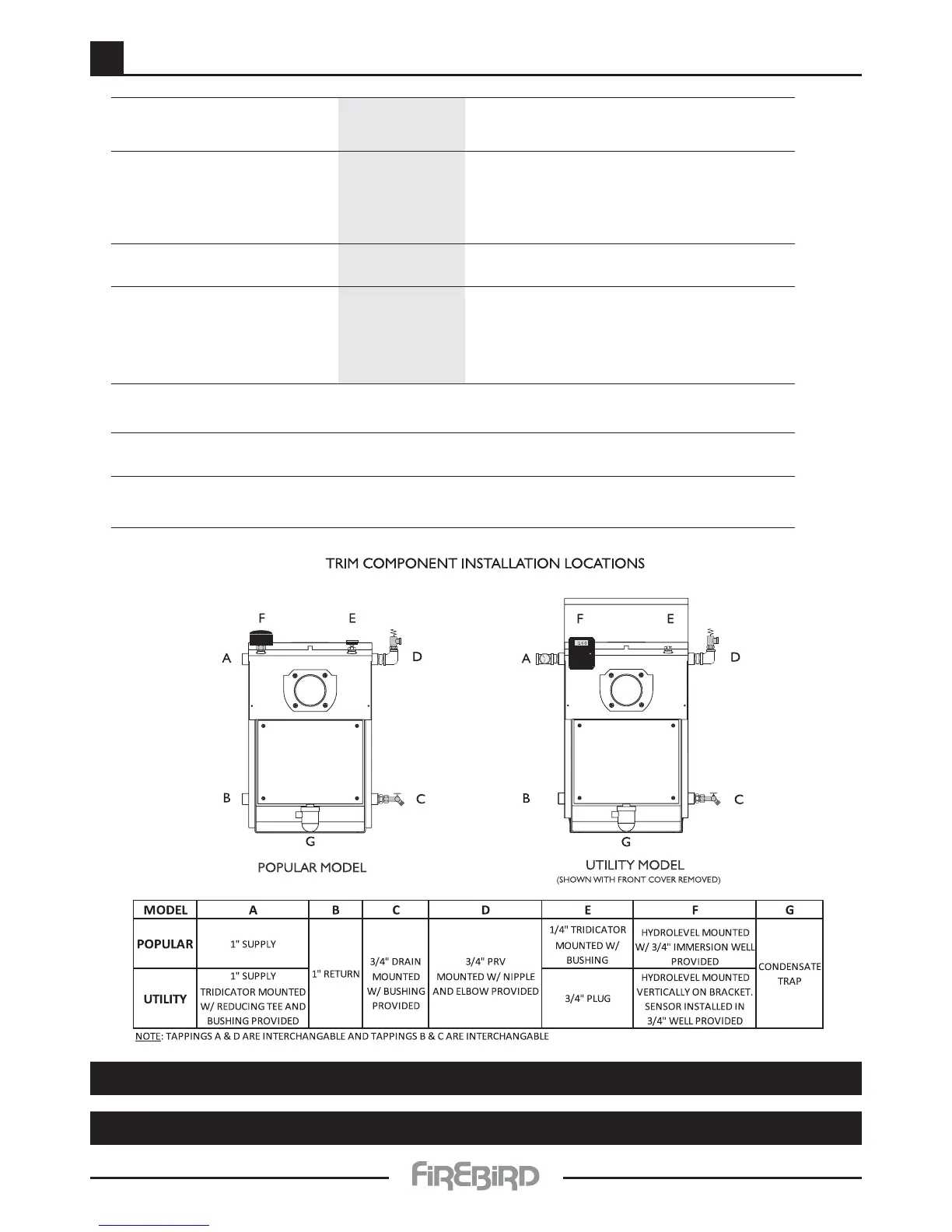

2.1 - BOILER - TECHNICAL DETAILS
Steel or Copper Pipe Not Plastic to be used for a minimum of 4 ft off the boiler supply & return.
Stainless steel exhaust pipe to be used from the boiler breeching to the chimney thimble.
Boiler Model P90/U90 P120/U120
Max Heat Output BTU/HR 95,000 121,000
CONNECTIONS
Heating Flow 1” NPT 1” NPT
Heating Return 1” NPT 1” NPT
Drain Off Cock
3/4” NPT 3/4” NPT
Condense Drain Off Connection.
3/4” PLASTIC 3/4” PLASTIC
WATER CONTENT
Water Content Boiler 6 Gallons 6 Gallons
FLUE (Indoor Boilers) Concentric Flue
Balanced Flue Assembly 5” 5”
Conventional flue Socket 5” id. 5” id.
Flue Draught Reqd.
(Min W.C.) 0.040” 0.040”
Conventional Flue (Max W.C.) 0.15” 0.15”
TEMPERATURE CONTROL
Boiler Central Heating Control 110˚F - 200˚F
HEATING SYSTEM (SEALED)
Safety Valve Operating Pressure 30 PSI
Pressure Jet Oil Burners RIELLO RDB 2.2R
Fuel No. 2 Oil
Electrical Supply 110v. AC 60Hz To be fused at main panel
