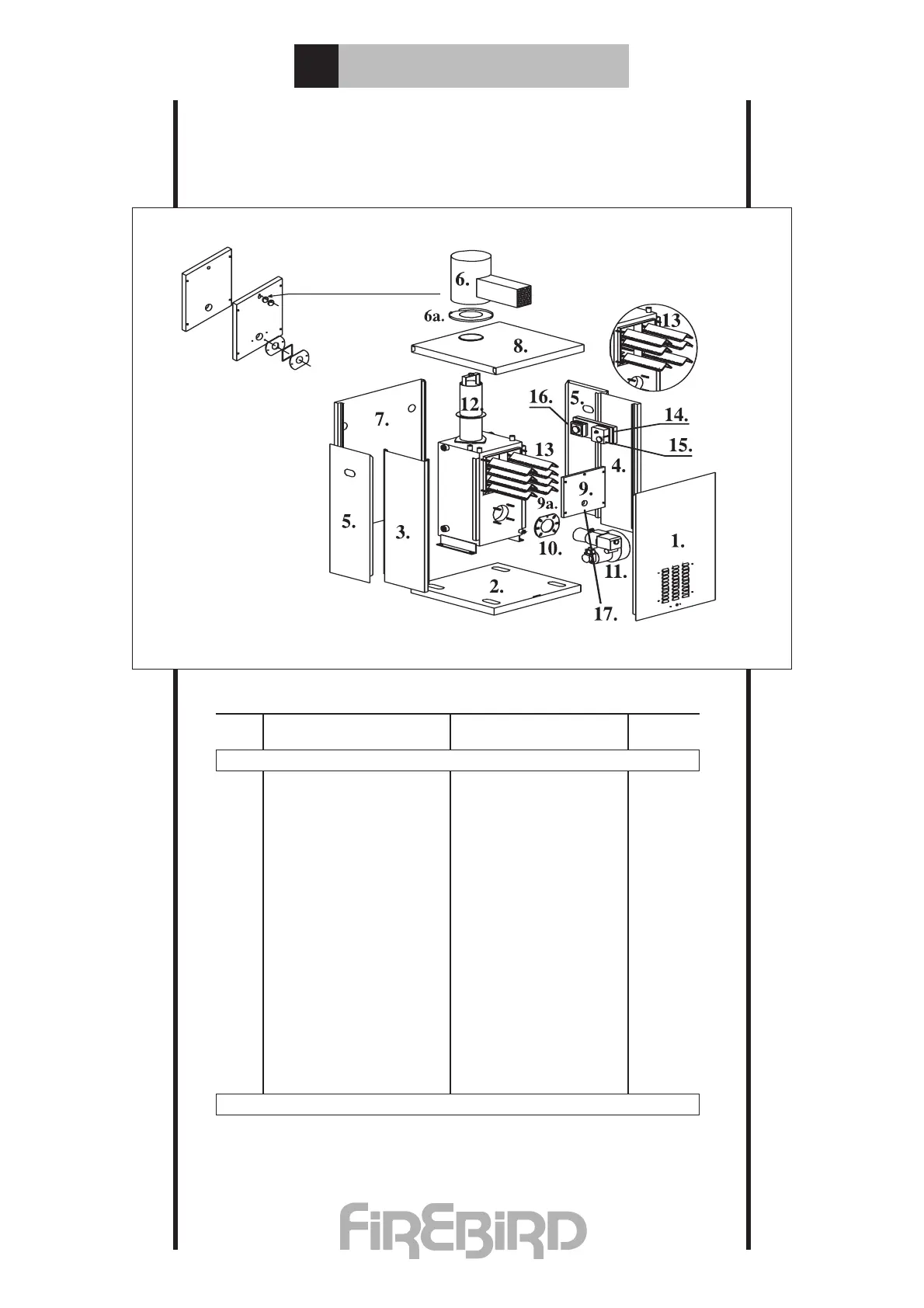

10-K Parts Description
ITEM COMPONENT PART No. Qty
No. per boiler
1 Front HP120-103 1
2 Base HP120-101 1
3 Left fixed side HP120-107 1
4 Right fixed side HP120-108 1
5 R-L Service side HP120-109/110 2
6 Flue MF14-5BK 1
6a Flue drip tray 1
7 Back HP120-104 1
8 Top HP120-105 1
9 Boiler Door P120-L-08 1
9a Door Gasket P120-L41 1
10 Burner flange See Burner Parts Book 1
11 Burner Riello G5X LD35 1
12 Flue Chimney HP120-208 1
13 Baffle P120-L-09 8
14 Electrical Box P70-L-48 1
15 Thermostat IM TLSC542764 1
16 Frost stat. TLM 2257 1
17 View glass 90/120 only
18 Viewing glass bracket FC 03110 1
18a Viewing glass FC 03111 1
18b Viewing glass gasket P70-L-45 1
19 Flue gas analysis cover FC 03113 (Not on Heat Pac 150) 1
19a Flue gas analysis cover gasket FC 03114 (Not on Heat Pac 150) 1
For Heat Pac 150 replace part numbers 1,2,3,4,5,7,8,9 and 13 above with HP150/P150
e.g. HP120-103 changes to HP150-103 / P120-L-08 changes to P150-L-08.
Burne Model for Heat Pac 150 is the Riello G7.
System Heat Pac 120
System Heat Pac 150
