47

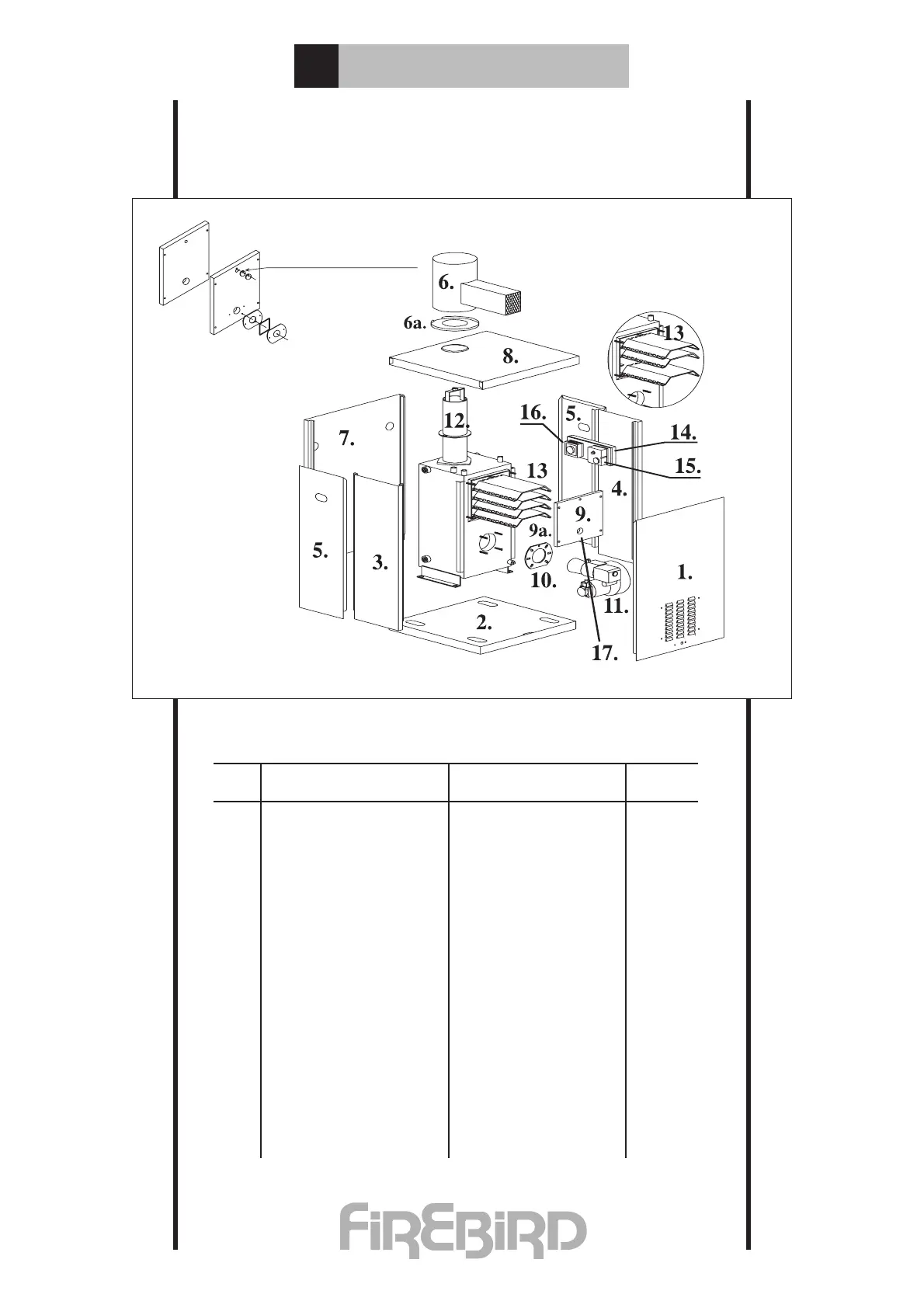

10-J Parts Illustration
System Heat PAC 70/90
10
SPARE PARTS-BOILER
Remove Second Row Of Baffles when
output is at lower half of range
System Heat-Pac 70/90
Flue Gas Analysis Point
View Glass Assembly
18a
18b
18
19a
19
10-J Parts Description
ITEM COMPONENT PART No. Qty
No. per boiler
1 Front HP90-103 1
2 Base HP90-101 1
3 Left fixed side HP90-107 1
4 Right fixed side HP90-108 1
5 R-L Service side HP90-109/110 2
6 Flue MF14-5BK 1
6a Flue drip tray 1
7 Back HP90-104 1
8 Top HP90-105 1
9 Boiler Door P70-L-08 1
9a Door Gasket P70-L41 1
10 Burner flange See Burner Parts Book 1
11 Burner G5X T3 Riello 1
12 Flue Chimney HP120-208 1
13 Baffle P90-L-09 8
14 Electrical Box P70-L-48 1
15 Thermostat IM TLSC542764 1
16 Frost stat. TLM 2257 1
17 View glass
18 Viewing glass bracket FC 03110 1
18a Viewing glass FC 03111 1
18b Viewing glass gasket P70-L-45 1
19 Flue gas analysis cover FC 03113 1
19a Flue gas analysis cover gasket FC 03114 1
