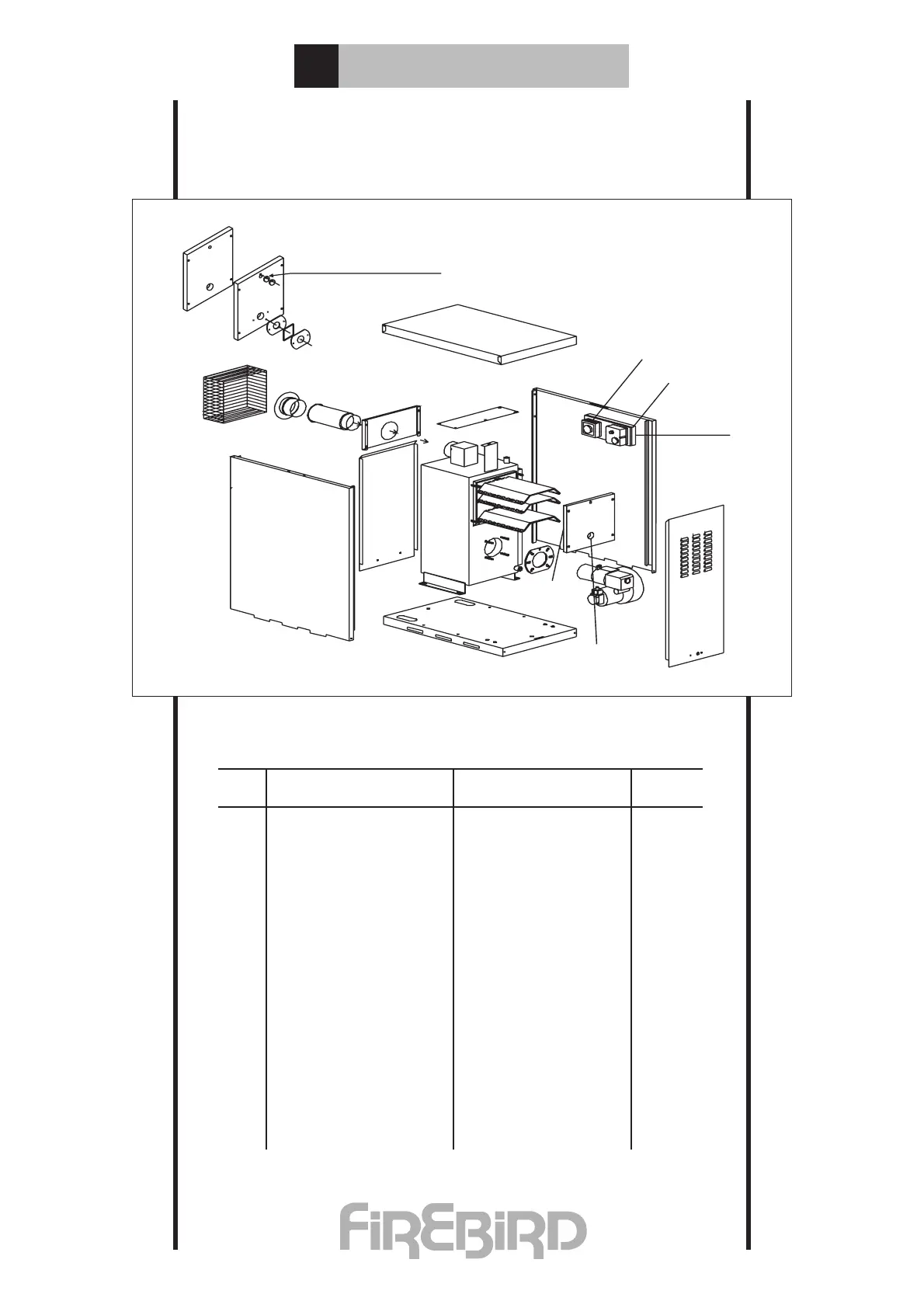

10-I Parts Illustration
System Heat PAC 70
10
SPARE PARTS-BOILER
8.
13.
7.
11.
2.
6.
3.
1.
5.
12.
17.
4.
9.
14.
16.
15.
9a.
10.
Flue Gas Analysis Point
View Glass Assembly
18a
18b
18
19a
19
System Heat-Pac 70
10-I Parts Description
ITEM COMPONENT PART No. Qty
No. per boiler
1 Boiler HP70-L 1
2 Base HP70-L-101 1
3 Left side HP70-L-102 1
4 Right side HP70-L-102 1
5 Front HP70-L-103 1
6 Back HP70-L-104 1
7 Back flue outlet HP70-L-106 1
8 Top HP70-L-105 1
9 Boiler Door P70-L-08 1
9a Door Gasket P70-L-41 1
10 Baffles
P90-L-09 3
11 Flue Kit HP70-L-14-3 1
12 Burner Riello G5X 1
13 Support Plate HP70-L-107 1
14 Thermostat IM TLSC542764 1
15 Frost stat. TLM 2257 1
16 Stat Mounting Bracket HP70-L-54 1
17 View glass
18 Viewing glass bracket FC 03110 1
18a Viewing glass FC 03111 1
18b Viewing glass gasket P70-L-45 1
19 Flue gas analysis cover FC 03113 1
19a Flue gas analysis cover gasket FC 03114 1
