18 Purevision Freestanding Issue 02 01/14
8.0 Maintenance Guide

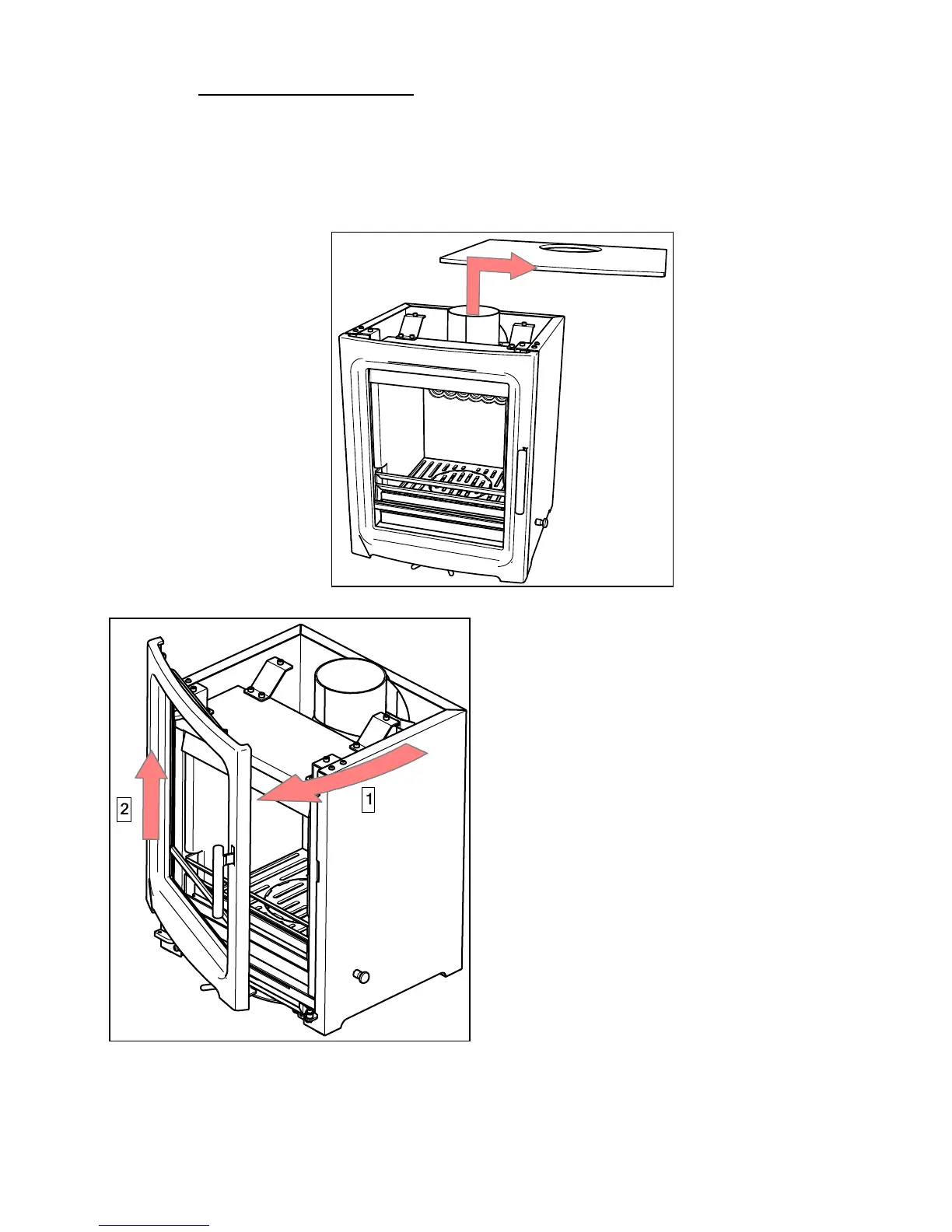

8.1 Removing Top Plate. Remove the stove top plate by lifting away. Note the
machined sockets and adjustable top plate supports for levelling and adjustment
as required. It is not necessary to remove the top plate or door to clean or
remove items from inside the firebox.
8.2 Removing Door. Remove the
stove door by opening to
approximately 30 degrees and
lifting away to disengage the
hinge pins. It is not necessary to
remove the door to clean or
remove items from inside the
firebox.
