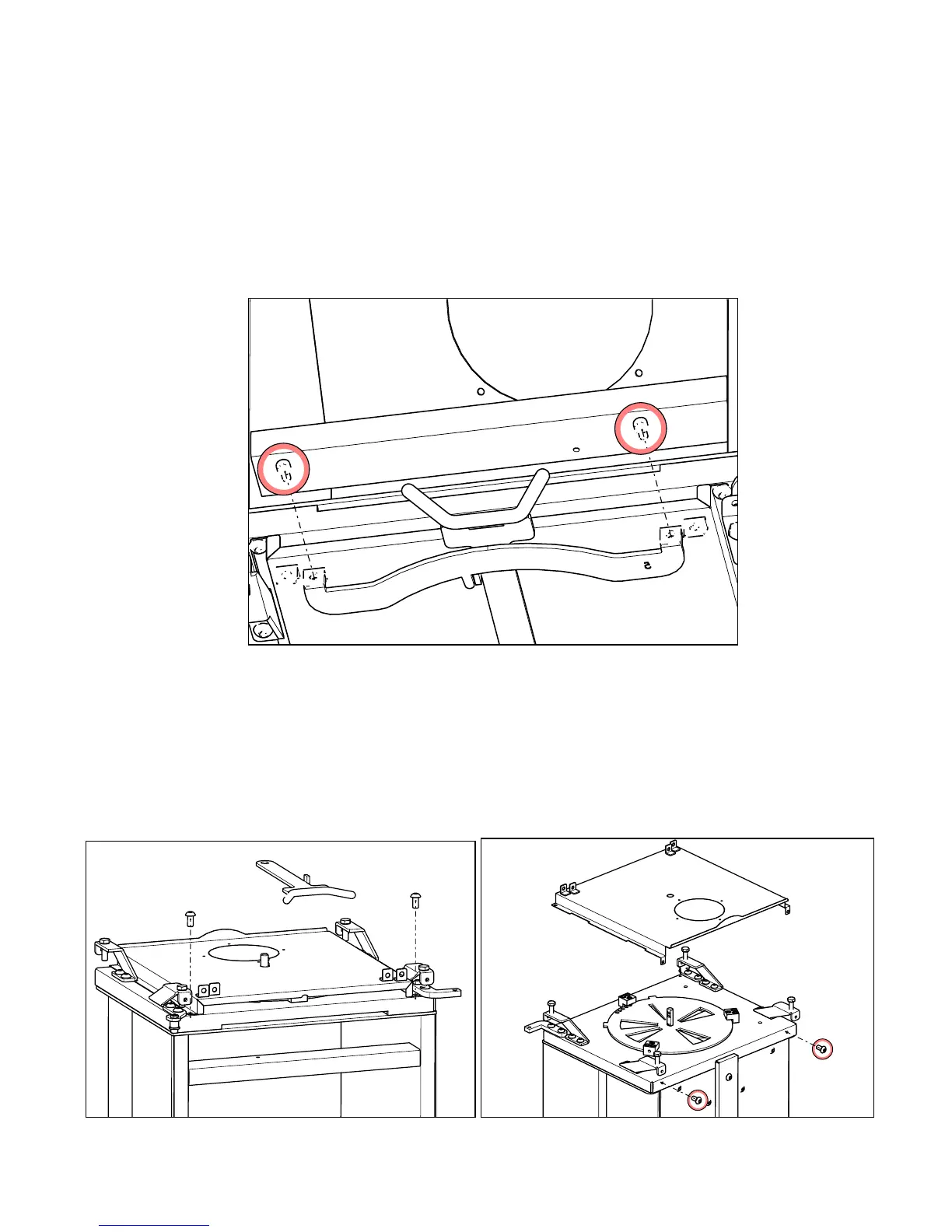

8.9 Smoke Control Air Limiter. 1. If the stove is to be used to burn seasoned wood
logs in a Smoke Control Zone in the UK, the Smoke Control air limiter bracket
must be fitted. This bracket prevents the air control being completely closed
when the stove is used to burn wood. To change to smokeless coal operation the
door must be opened and the lever deliberately lifted and moved from the wood
control side (left) to the coal control side (right) before lighting the fire. 2. To
attach or remove the bracket, use the 2 x M6 cap screws provided as shown. Do
not lean the stove forwards when moving it to access this control bracket as it
will likely damage the air control lever. Either fit without moving the stove or
tilt it left, right or to the rear.
8.10 Maintenance of air control valve. The main air control valve is mounted
underneath the air plenum chamber which is fixed immediately beneath the ash
pit. To access this for thorough cleaning and re-lubrication firstly remove the
outside air box. Invert the firebox for access. To remove the outside air box
remove 2 x screws from bottom of firebox and 2 x screws from rear of firebox,
remove locking nuts and air control lever from spindle and lift off the outside air
box. Other components can now be removed as required.
