Fireline PUREVISION - Removal of or Inspection Above Baffle Plate

19 Purevision Freestanding Issue 02 01/14

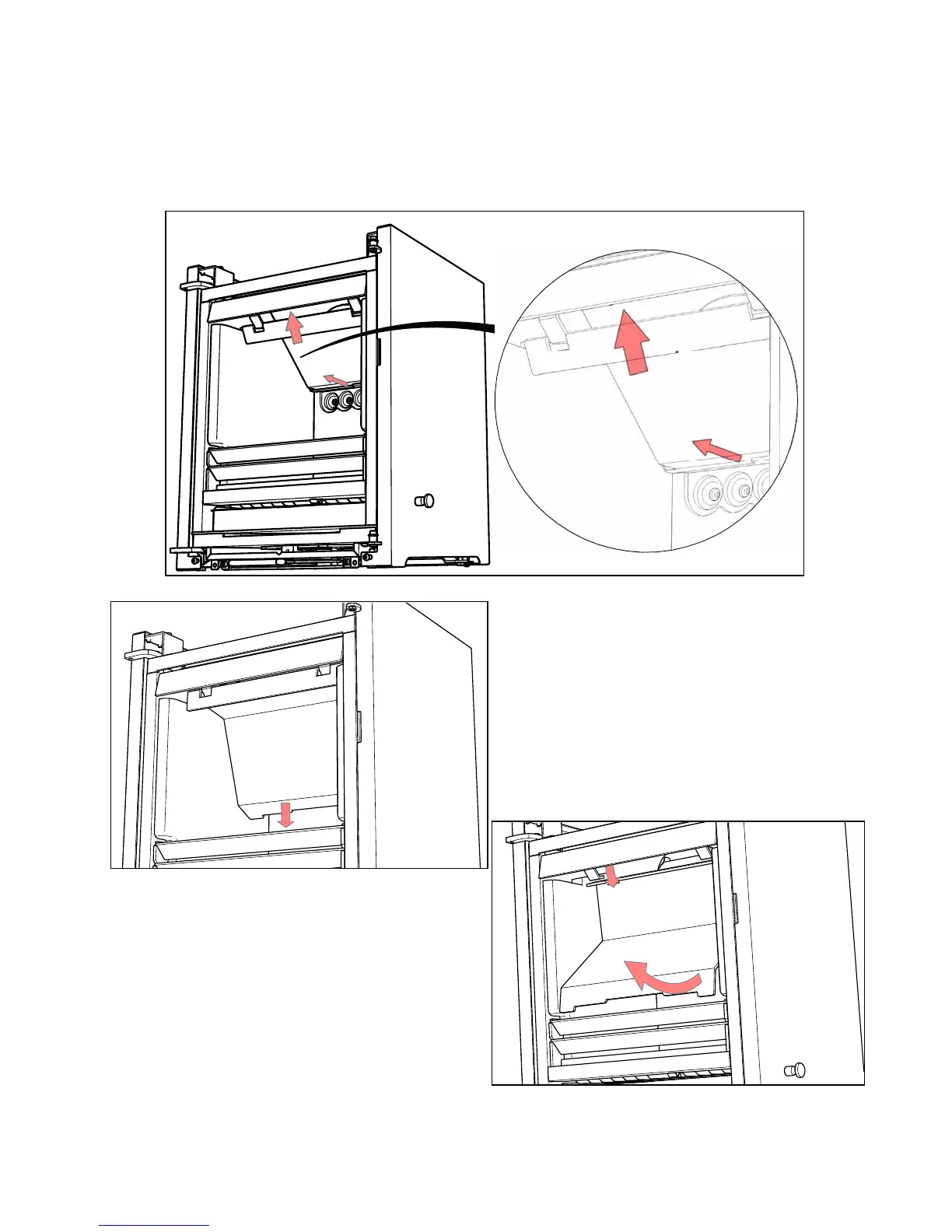

8.3 Removal of or Inspection Above Baffle Plate. 1. First lift upwards at the front
and at the same time sliding the rear forwards off the back baffle support
bracket. 2. Next lower the rear edge into the firebox and allow the front of the
baffle to slide off the front baffle support brackets. 3. Finally rotate the baffle out
of the firebox.
