21 Purevision Freestanding Issue 02 01/14

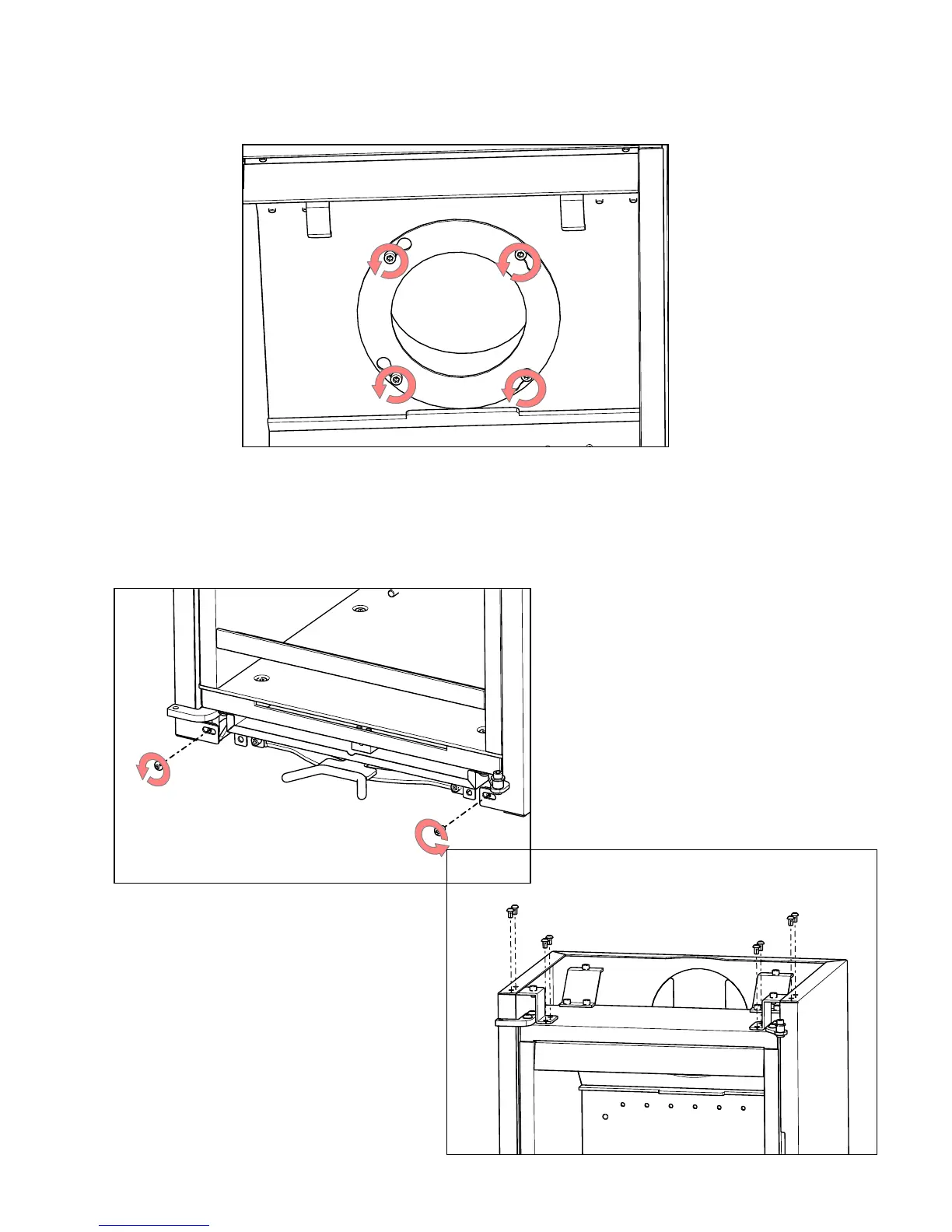

8.6 Removing Flue Spigot Collar. Unscrew 4 x M6 securing screws from inside the
firebox and remove spigot collar. When re-assembling either use a suitable
fireproof gasket or fire cement.
8.7 Removing Outer Casing. 1. Unscrew 2 x M6 screws securing lower casing to
stove legs. 2. Unscrew and remove 4 x M4 screws from both left and right upper
casing brackets. Remove the brackets from the firebox itself to allow removal of
the casing as easily as possible.
