Firenzo KOMPACT - Assembly and Installation Instructions: KOMPACT with ATHENA Fascia

Kompact Guide Version 16/05/2013
14
Assembly and Installation Instructions: KOMPACT with ATHENA Fascia
3
3. Remove the granite ashlip from the fascia box
and fit below the door opening using the two
locator screws at the bottom of the firebox (Screws
for granite ashlip (5) see illustration 2).
These two screws protrude by 5mm to enable the
ashlip to be lifted up and over the screw heads and
then screw up tight.
Athena ashlip

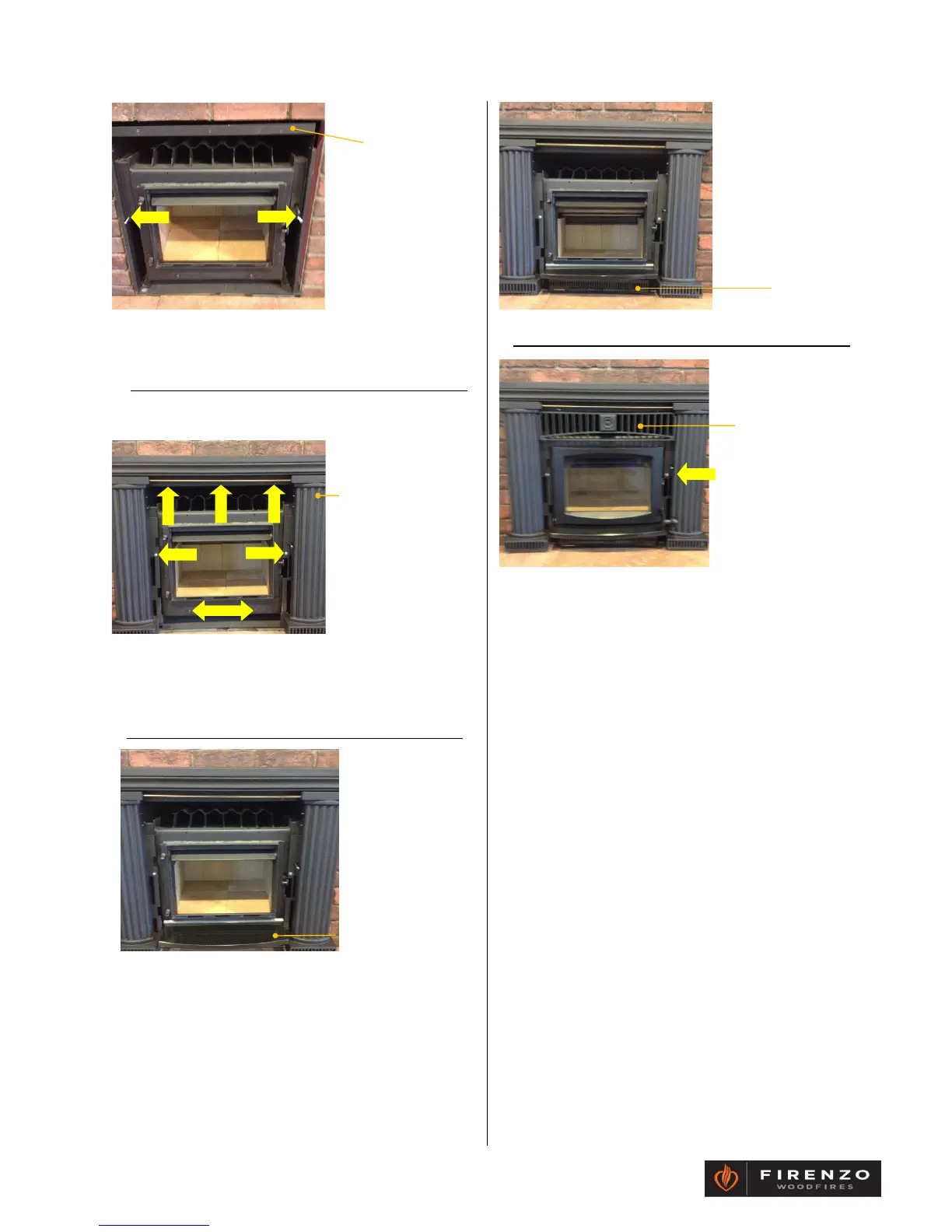

1. Remove all items from packaging and separate.
Remove door. Then remove the two 50mm screws
(1) located one on each side of the door opening.
1
1
1
Canopy
2. Position the Athena fascia against the canopy and
fix the 50mm screws (3) to the outer clips.
Secure the top of the fascia with the three 15mm self
tapping screws (4) (provided in the fascia pack).
2
Athena fascia without top grill
3
3
4
4
4
5
5
5. Fit the top grill (cast iron).
Fit the air control knob (6).
Finally fit the door. Locate the hinges correctly by
angling the door at approximately 45 degrees.
Top cast iron grill
6
4. Fit the bottom grill on to the 2 locating screws.
4
Bottom grill
