Firenzo KOMPACT - Assembly and Installation Instructions: KOMPACT with DECO

Kompact Guide Version 16/05/2013
16

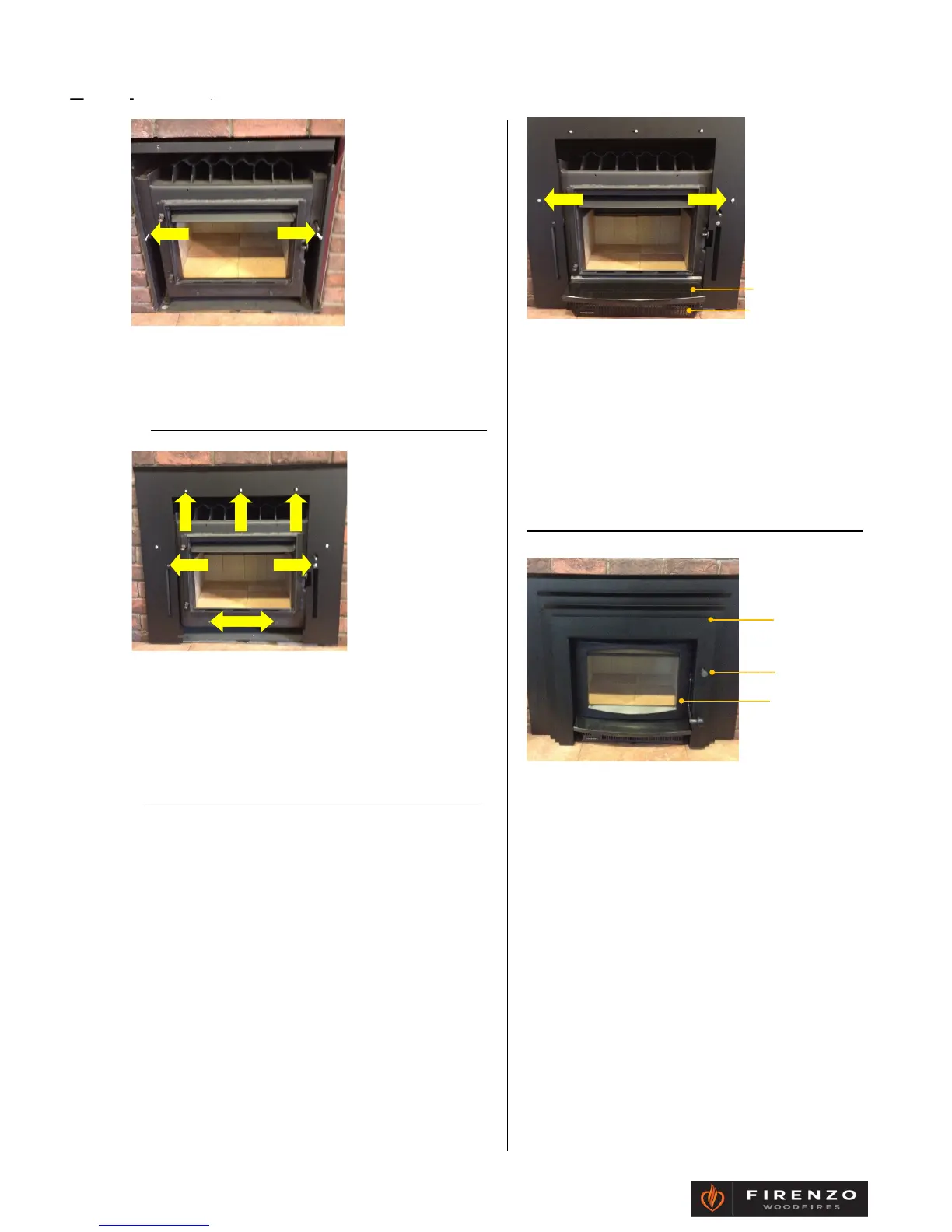

1. Remove all items from packaging and
separate.
Remove door. Then remove the two 50mm
screws (1) located one on each side of the door
1
1
Assembly and Installation Instructions: KOMPACT with DECO
Fascia
Fascia
1
2. Place the single back plate of the fascia
against the firebox.
Replace the 50mm screws (2) in the outer clips
of the fire box securing the backplate.
Secure the top of the backplate with the three
15mm self tapping screws (3).
2
2
2
3
3
3
4
3. Remove the granite ashlip from the fascia
box and fit below the door opening using the
two locator screws at the bottom of the firebox
(Screws for granite ashlip (4) see illustration
2).
These two screws protrude by 5mm to enable
the ashlip to be lifted up and over the screw
heads and then screw up tight.
Attach the bottom grill
3
Granite ashlip
5
Bottom grill
5
4
4. Place the keyhole brackets on the 3 plate
Deco fascia over the protruding screws on the
back plate (Screws (5) illustration 3).
Fit the air control extension rod and the air
control knob.
Finally fit the door. Locate the hinges correctly
by angling the door at approximately 45
degrees.
3 plate Deco fascia
Air control rod and knob
Deco door
