Firepower FP-18 Plasma Cutter 22 Service Manual 0-2692
A-02360
2
4
5
6
3
7
2
1
A #2-56 x 5/16" LG Phillips Pan Head
B #6 Internal Star Washer
C #6-32 x 3/16" Phillips Pan Head M.S.,
Zinc Plated
6
1
1
HARDWARE QTY
A
A
A
A
A
A
B
C
8
8
1
9
10
11
12

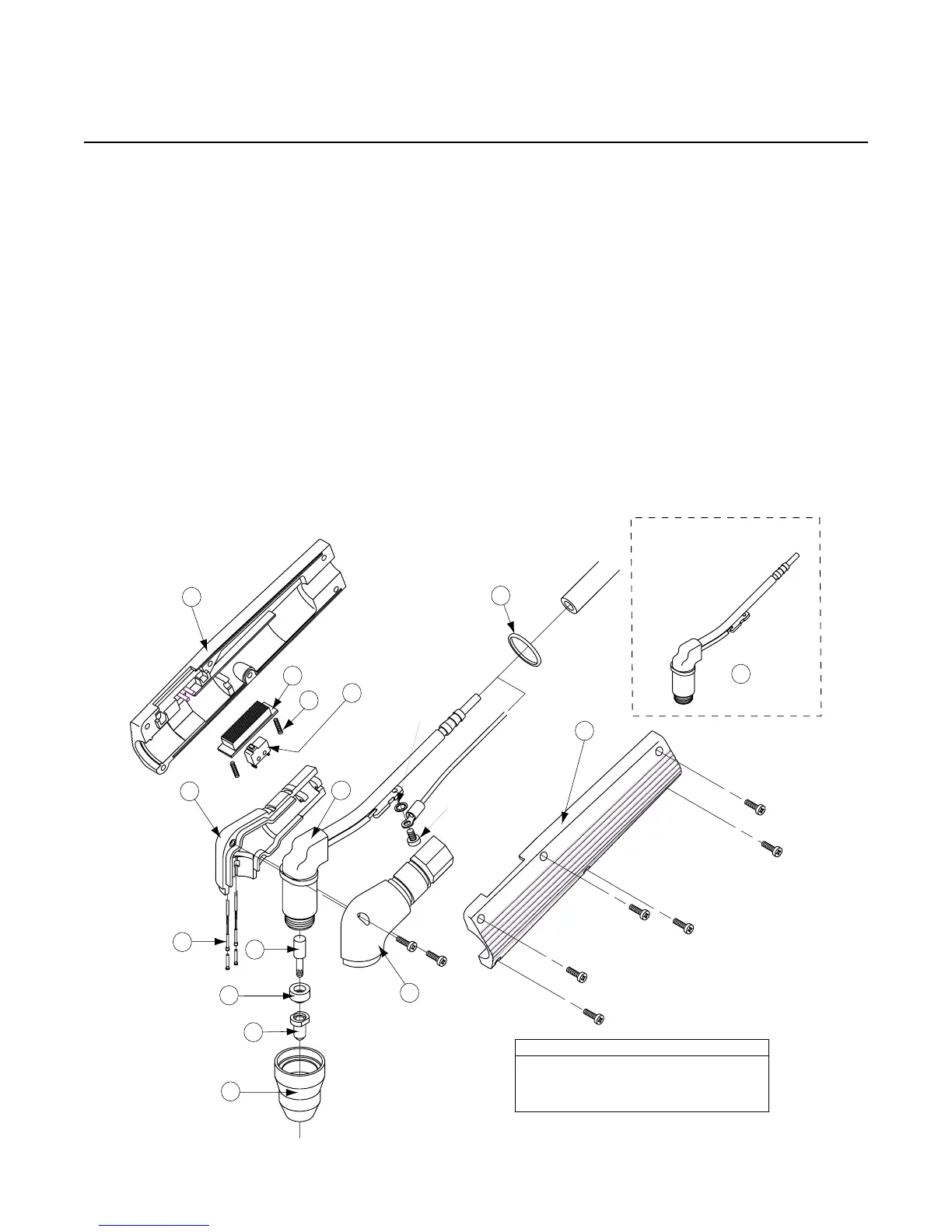

5.4 Torch Replacement Parts
Item # Qty Description Catalog#
1 1 PCH-10 (70°) Torch Head Assembly* 9-0016
2 1 Torch Handle Only 9-0019
3 1 Torch Switch 9-1058
4 1 Standard Electrode 1445-0016
5 1 PCH-10 Tip 1445-0031
6 1 Gas Distributor 1445-0017
7 1 Shield Cup 1445-0018
8 1 Torch Head Split Holders PCH-10 (70°) 9-6259
9 1 PIP (Parts-In-Place) Wire Assembly 9-6290
10 1 O-Ring 8-0533
11 1 Torch Switch Button 8-4256
12 2 Torch Switch Button Springs 9-6292
* To be replaced by Qualified Technician only.
