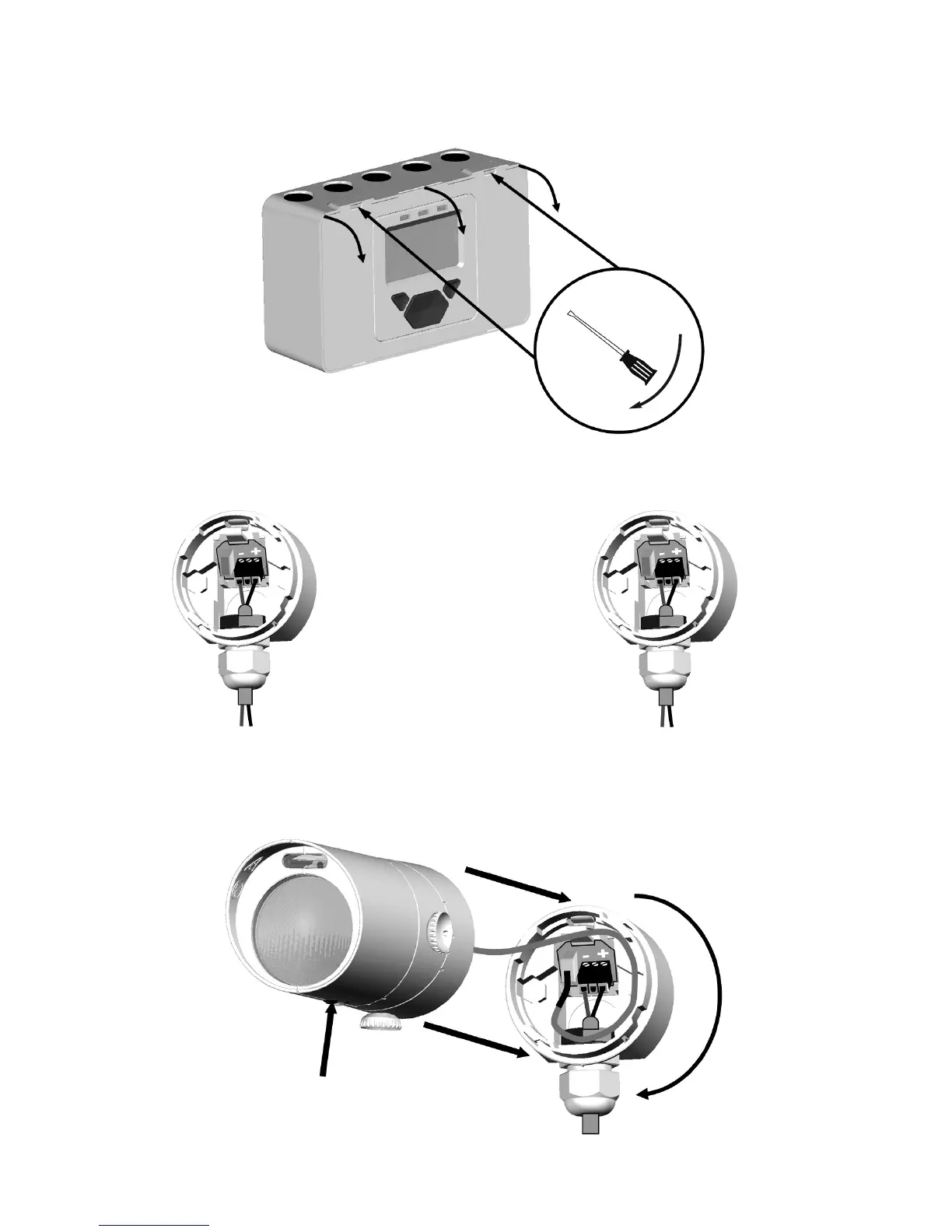

1.3 Fitting the Product
LED indicator must face
downward
- +
TO RECEIVER
OUTPUT ON
CONTROLLER
BOARD
R
ECEIVER:
- +
TO
12 to 36V DC OR
SUPPLY ON
CONTROLLER
BOARD
TRANSMITTER:
