Page 20 of 36

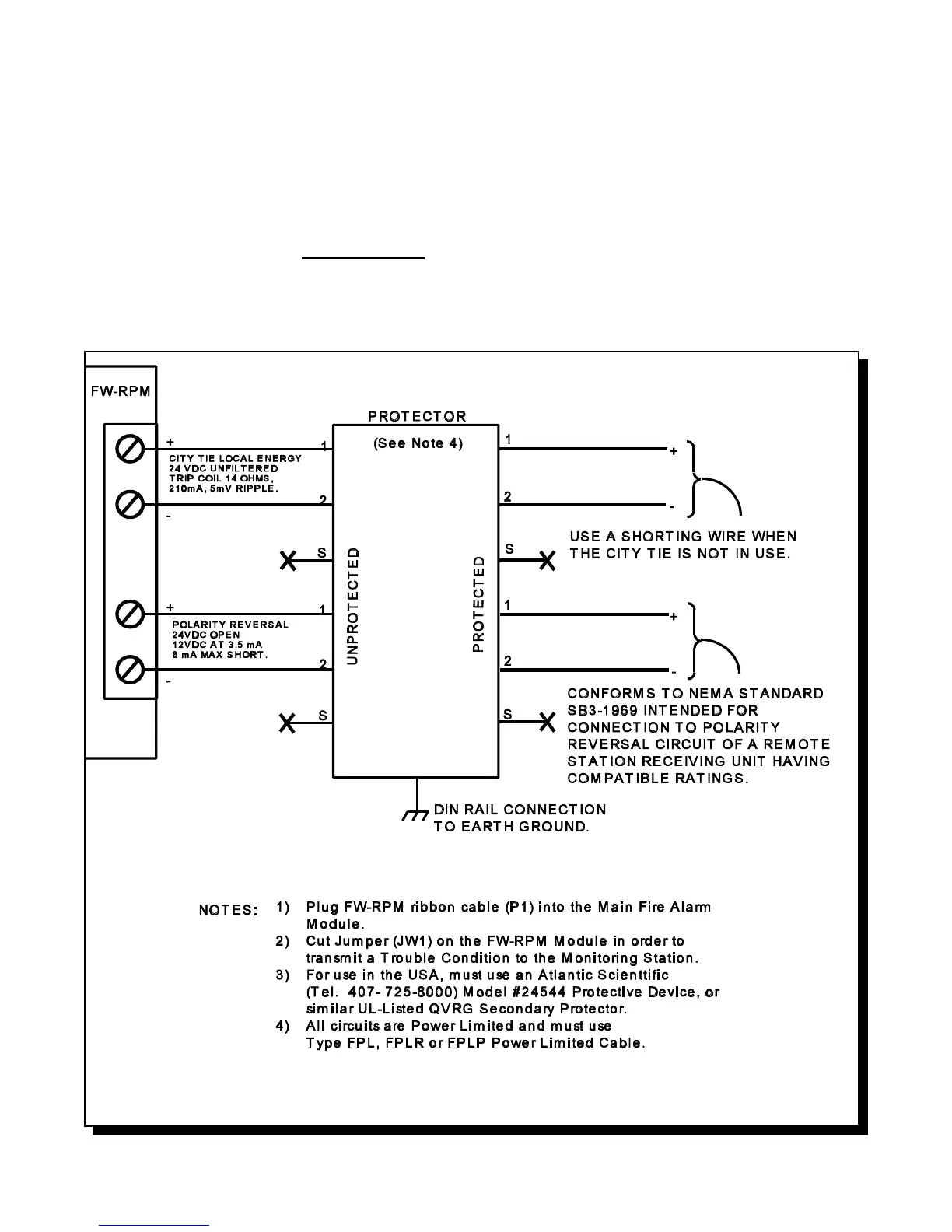

Fig.14: FW-RPM Polarity Reversal and City Tie Module Terminal Connections
7.5 DACT / Dialer MODULE (FW-DACT) TERMINAL CONNECTIONS
See the FW-DACT Manual (LT-639NAP) for connection information.
7.6 POLARITY REVERSAL and CITY TIE MODULE (MODEL: FW-RPM) TERMINAL CONNECTIONS
See Appendix for Module specifications. Wire as shown using proper wire gauges.
Note that for use in the USA, the installer MUST add an Atlantic Scientific (Tel. 407-725-8000) Model #24544 Protective Device, or
similar ULI-Listed QVRG Secondary Protector, as shown.
Note: The Terminal Blocks are “depluggable” for ease of wiring.
The City Tie Interface is Not Power Limited.
Either the FW-RPM’s City Tie or Reverse Polarity Interface may be used, but not both.
