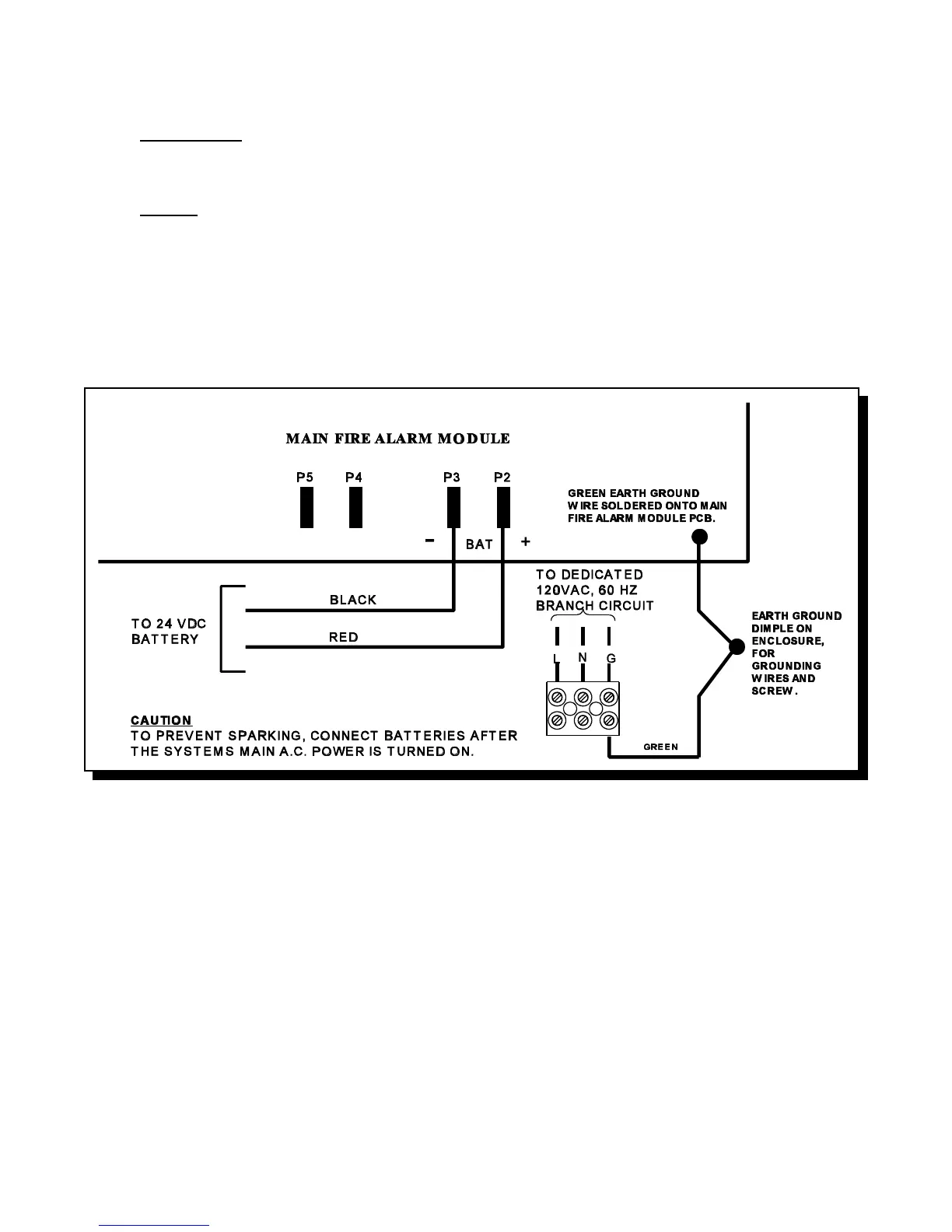

Fig.15: Power Supply Connections
7.7 POWER SUPPLY CONNECTIONS
The power supply is part of the Main Fire Alarm Module and the Chassis. The ratings are:
Model FW-C2Z, FW-C4Z:
Electrical input ratings: 120 VAC, 60 Hz, 2.0A (Uses 3A in line time delay fuse)
Power supply total current: 2.75 A maximum
Battery Fuse on Main Module: F1: Replace with 10 Amp, 1-1/4" Fast Acting Fuse
Model FW-C4EZ:
Electrical input ratings: 120 VAC, 60 Hz, 2.5A (Uses a 4.0A circuit breaker)
Power supply total current: 6 A maximum
Battery Fuse on Main Module: F1: Replace with 10 Amp, 1-1/4" Fast Acting Fuse
CAUTION: Do not exceed power supply ratings.
See appendix "C" for specifications. Wire as shown using proper wire gauges.
