Fireye 55UV5 - Specifications

3


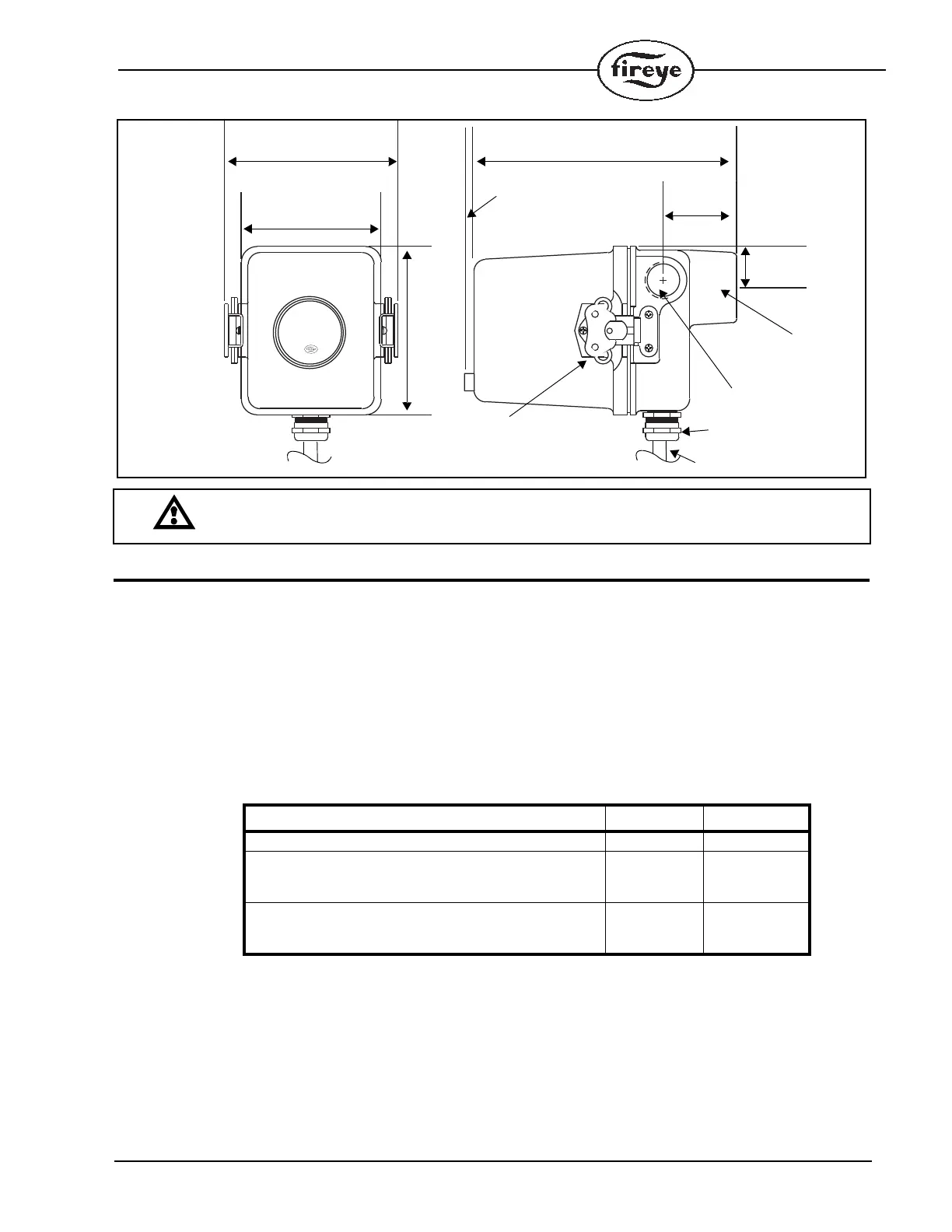

FIGURE 1. 55UV5-1010 SCANNER DIMENSIONS
CAUTION: Spring fasteners should be clipped and tightened to ensure a good bond to housing
and maintain the integrity of the NEMA 4X rating.
SPECIFICATIONS
MOUNTING:
Models are provided with 1" female thread mounting, British Whitworth (BSP).
HOUSING:
Material Cast Aluminum with grey epoxy coat finish
Environmental: NEMA 4X, IP66
Weight:
Temperature Rating:
Optical Range: 190 to 250 nanometers. No response to infrared radiation or visible
light.
ELECTRICAL:
Power Requirement: 4 VA AC from associated Fireye control (see note below).
Frequency: 60 HZ
Electrical Connection: Flexible -conduit fitting and 20 ft (6m) of five conductor cable
NOTE: Cable must be installed in 1/2" liquid-tight flexible conduit.
CONDITION MIN. MAX.
Non-hazardous -40°F (-40°C) +199°F (93°C)
Class I, Div 2, Groups A, B, C, D
Class II, Class III, Div 2, Groups F and G
Using Anaconda 1/2" Type H.V.T.A. liquid tight
-40°F (-40°C) +140°F (60°C)
T6 Rating
Class I, Div 2, Groups A, B, C, D
Class II, Class III, Div 2, Groups F and G
Using customer supplied conduit or liquid tight connection
-40°F (-40°C) +199°F (93°C)
T4A Rating
55UV5-1000
FLAME SCANNER
NEMA 4X
FIREY E
DERRY, NE W DERRY
MADE IN USA
®
TYPE 55UV5
4.87" (123.67mm)
3.93" (99.82mm)
4.74"
(120.4mm)
7.39" (187.58mm)
2.07" (52.45mm)
1.18" (29.85mm)
1" BSP THREAD
3/4" BSP THREAD
0.2" (6mm)
SPRING FASTENERS (2)
FITTING FOR 1/2" LIQUID-TIGHT
FLEXIBLE CONDUIT (REQUIRED)
20 ft (6m) CAPTIVE CABLE
